19-Inch Rack Cabinet Buying Guide for CCTV and Security Networks

A 19-inch rack cabinet should be selected around the equipment, installation location and maintenance tasks it must support. Height alone is a poor buying shortcut. CCTV recorders, PoE switches, patch panels and UPS units can fit the same mounting width while needing very different depths, supports and airflow. For NZ security projects, start with a measured equipment schedule and check the exact cabinet variant before ordering.

Understand mounting width, rack units and usable space

The 19-inch description identifies the equipment mounting format, not the cabinet's outside width or usable depth. Rack height is commonly expressed in U or RU; one rack unit is 44.45 mm. Add the rack space required by every installed item, including shelves, cable managers and horizontal power rails. Keep the manufacturer's required ventilation clearances in the layout.

External height also includes cabinet structure and other components. A small wall cabinet may fit a communications cupboard but have insufficient working room once patch leads and a power rail are installed. Obtain the dimensional drawing and confirm the rail positions, door opening and cable entry arrangement rather than relying on the product photograph.

Measure depth with connectors and rails included

Record chassis depth, rear connector projection, bend space and front handles. A recorder that physically enters a cabinet may still stop the rear door closing after network, power and display leads are connected. Check adjustable rail spacing and the exact support rails or shelf required by the equipment manufacturer.

For an illustrative recorder 360 mm deep with 70 mm needed behind its connectors and 30 mm of front clearance, the working envelope is already 460 mm. That does not mean a cabinet sold as 500 mm deep will suit: its usable internal depth may be smaller. Compare the drawing with the assembled equipment, including any replacement plug or cable arrangement.

Wall-mounted or floor-standing rack cabinet?

Use the comparison below to narrow the cabinet type, then check the exact model's usable depth, load rating and installation instructions. Rack height alone does not establish suitability.

A wall cabinet can suit a small CCTV system when every fit and support check passes. For heavier UPS equipment or a growing multi-device installation, evaluate a floor-standing four-post cabinet with the equipment manufacturer's specified supports. These are selection principles, not universal load or size limits.

Check total load and the mounting structure

Add equipment mass, batteries, shelves, power distribution, cable load and the cabinet itself where relevant to the wall or floor support. Confirm both the cabinet's rating and the rating of each shelf, mounting kit and anchor arrangement. A static load figure is not permission to move a fully loaded cabinet or suspend it from an unsuitable wall.

Heavy UPS equipment requires special attention. Use the supported mounting arrangement, place weight appropriately for stability and preserve battery replacement access. Eaton's rack guidance identifies four-post support as appropriate for heavier or deeper equipment. Obtain project-specific advice on anchoring, structural support and any seismic restraint requirements rather than applying a universal fixing pattern.

Plan heat removal from the room as well as the rack

A fan moves heat; it does not eliminate the heat released into a small cupboard. Review the equipment's power consumption and airflow directions, the room temperature range and how warmed air leaves the space. PoE switch input power includes energy delivered to cameras outside the cabinet, so avoid treating its full electrical input as heat generated inside the rack.

Keep intake and exhaust paths clear, separate obstructive cable bundles and follow equipment clearance instructions. A sealed enclosure may protect against the environment while trapping heat. For outdoor use, check the complete enclosure configuration, cable entries, sun exposure and condensation strategy. An indoor glass-door cabinet should not be presented as weatherproof because it has a lock.

Consider noise where the cabinet is near staff or residents. Temperature-controlled fans may be useful, but select them against the actual cooling duty and operating environment. Record a temperature check with normal doors closed and expected equipment operating. An open-door bench test will not reproduce a cupboard that is locked overnight.

Lay out power, patching and service access

Decide where power distribution sits before finalising cabinet depth and rack height. Horizontal rails consume U space; vertical arrangements need suitable side clearance and mounting provisions. Count plugs, check plug orientation and allow access to switches and protective devices. Avoid making the recorder's only serviceable socket inaccessible behind a battery pack.

Lay out data patching so the technician can trace and replace a lead without pulling unrelated connections. Label panel ports and switch ports consistently with the as-built drawings. Use cable management that supports the bend radius and does not crush cable. Separate mains and data appropriately under the installation requirements and manufacturer's instructions.

Build an equipment schedule before choosing cabinet size

As an example, a 2U recorder, 1U switch, 1U patch panel, 1U cable manager and 2U UPS occupy 7U before any additional shelves, power rails or required gaps. A nominal 9U cabinet may offer little expansion room. Choose the next size only after depth, loading and cooling checks also pass.

Inspect location, security and the delivery route

Check doorways, stairs, access hatches and the final installation route. Confirm whether the cabinet arrives assembled, how it will be lifted and whether side panels remain removable in the final position. A cabinet squeezed into an alcove can turn a simple switch replacement into a major outage.

Secure cabinet access and control keys, including any rear or side-panel locks. Locate critical recording equipment away from casual public access. If tamper monitoring is required, specify the contacts and reporting path explicitly. Physical security should complement account security and backups, rather than create an enclosure that authorised technicians cannot reach during a fault.

Verify the installation before project handover

Check equipment support, bonding provisions where required, completed entries, clean ventilation paths and all labels. Confirm no fixings or cable offcuts remain inside equipment. Test the intended power-loss and restoration sequence and verify that cameras, switches and recorders return to the expected state.

Record the final cabinet layout, installed load, spare rack space and service clearances. Include photographs of the finished patching and a list of keys or access permissions handed over. Keep model-specific environmental ratings attached to the exact cabinet variant; modifications such as fans and cable entries can affect the complete assembly's protection.

Equipment selection and technical references

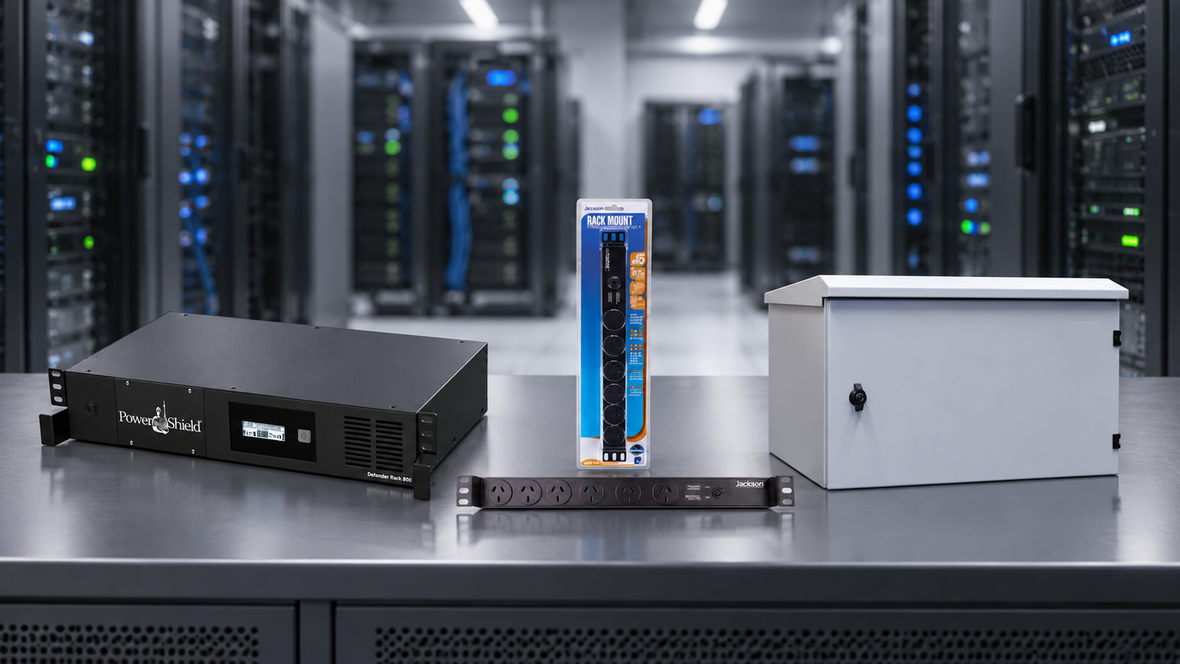

Use these cabinet options as a starting point for a project specification. The pictured items are equipment candidates, not a pre-approved complete design. Confirm model, accessories, interface support and suitability before ordering.

Related installer guidance: Outdoor security cabinets: heat and condensation.

Primary references checked 24 October 2026: www.eaton.com technical guidance.
