Alarm Panel Backup Batteries: Charger Limits, Standby Loads and Replacement

Battery capacity is only one part of standby power

A larger battery does not automatically deliver a better alarm installation. The panel must support the battery chemistry and capacity, the charger must restore charge within the required period, and the wiring and enclosure must suit the installation. The system also has to operate correctly at the lower voltage available towards the end of a discharge.

For New Zealand commercial alarm systems, start with the required standby and alarm periods from the applicable project specification, monitoring requirements and current installation documentation. Do not assume a universal number of hours applies to every premises. Where a particular standard or insurer requirement governs the project, have the responsible designer identify the exact requirement.

This guide explains a calculation and verification process. Its worked figures are illustrative, not a design approval for any panel or a promise of runtime from a particular battery. Final selection needs the exact panel, power supply, battery data and measured system load.

Measure the load that actually needs support

List every device supplied by the battery-backed circuit: the panel electronics, keypads, detectors, expanders, communicators and any other connected equipment. Record standby and alarm currents separately. Include operating states that materially change consumption, such as cellular transmission and sounder operation.

Use current manufacturer data for planning, then verify the completed installation with an appropriate measurement method. A nominal auxiliary-output rating is a limit, not a measurement of the installed load. Devices on a separate supply belong in that supply's own calculation and must still be considered in the whole-system outage plan.

Communicators are easy to overlook when replacing an older module. A new IP or cellular arrangement can change standby consumption and peak demand. Recalculate after upgrades rather than retaining the previous battery assumption. Confirm that cable voltage drop and output protection remain acceptable under the relevant operating conditions.

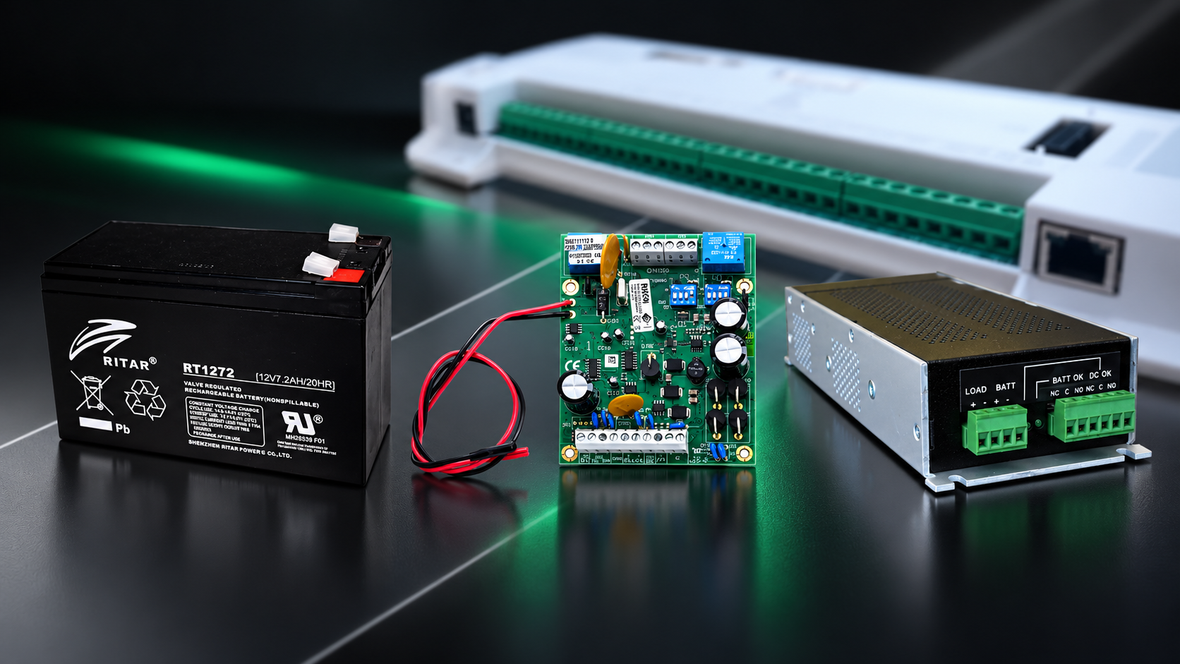

The Ritar RT1272F1 12 V 7.2 Ah battery listing is a catalogue example, not a universal replacement recommendation. Check the actual battery label, terminal type and the panel's approved battery range before ordering, particularly where an older product handle refers to a different nominal capacity.

Calculate the energy requirement transparently

For loads expressed at the battery supply, an initial charge requirement is standby current multiplied by standby time, plus the separate alarm-period requirement. Define the periods so that the alarm load is not accidentally omitted or counted twice. If the load changes during the outage, divide the calculation into the relevant operating states.

These deliberately hypothetical figures assume the alarm period is additional to the twelve-hour standby period and that 1.20 A is the total battery load during alarm. They do not specify a panel, a mandatory standby period or a selected battery. Show the assumptions beside the result so another technician can reproduce it.

The ideal total is not the final battery rating. Use the applicable design method and manufacturer discharge data to account for temperature, ageing, discharge rate, cutoff voltage and reserve requirements. A battery's labelled ampere-hours apply under specified test conditions. Dividing that label by current cannot establish guaranteed real-world runtime.

Where devices use converters or a different voltage, do not add their output currents directly to the battery-current total. Account for conversion and losses using a supported method, or measure the battery-side load in the relevant state. Keep units visible throughout the worksheet.

Check the charger and the full supply budget

Find the panel or power supply's supported battery chemistry, maximum capacity, charging voltage and charge-current limits. Establish whether its published output rating includes battery charging or whether separate limits apply. That distinction can change the usable auxiliary power budget when the system is running and recharging together.

As an illustrative lower bound, replacing 4.5 Ah with a constant 0.30 A would take fifteen hours before allowing for losses and the charging profile. Real charging current may reduce as the battery approaches full charge. This arithmetic is not evidence that a particular battery will meet a specified recharge time.

Do not assume all spare supply current is available to charge the battery. The charger may have its own limit. Conversely, do not subtract charge current twice if the manufacturer already specifies an auxiliary-output limit separately. Read the exact documentation and identify the relevant ratings in the design record.

The RISCO RP128EPS000A power supply and Powerbox PB256-1210CML charger supply illustrate different supply products available through Essential Security Supplies. Their catalogue names and headline ratings do not establish interchangeability, panel-bus compatibility or permission to connect a larger battery.

Match chemistry, enclosure and connections

Use only the battery type and capacity approved for the equipment and application. A lithium battery with the same nominal voltage is not automatically a drop-in substitute for a valve-regulated lead-acid battery. Charging behaviour, protective electronics and fault monitoring can differ substantially.

Confirm physical dimensions, connector width, polarity, restraint and clearance around terminals. Do not force a larger battery into an enclosure or allow terminals to contact metalwork. Follow the equipment instructions for protection, ventilation and installation conditions. Changes to mains wiring or fixed electrical equipment require the appropriately authorised person.

Manufacturer charging guidance distinguishes standby service from cyclic charging and identifies the importance of the correct voltage and operating conditions. See GS Yuasa's VRLA charging explanation for that distinction, then use the exact selected battery's data. Do not transfer a voltage recommendation between unrelated battery families.

Test replacement batteries and investigate repeat failures

Coordinate maintenance with the site operator and monitoring provider before disconnecting equipment. Follow the panel's isolation and reconnection procedure, protect against accidental short circuits and verify polarity before connection. A battery can deliver substantial fault current even though the alarm uses low voltage.

Inspect for damaged leads, loose terminals, corrosion, swelling or unusual heat. Follow the manufacturer's handling instructions for a damaged battery. Record the removed and replacement models, installation date, measurements and reason for replacement rather than assuming every battery fault is age-related.

Open-circuit voltage alone does not establish useful capacity. Apply the manufacturer's supported battery test and confirm operation under the relevant load. After replacement, verify charging, fault clearance, panel operation and event receipt. Do not run an uncontrolled deep-discharge experiment on the customer's operational alarm.

Repeat failures justify checking charger operation, cabinet temperature, load changes and outage history. A battery repeatedly left partly charged may not provide the expected reserve during the next outage. Review the security battery range alongside the power-supply documentation, and use the related battery-backed power-supply guide where access equipment has separate loads.

Frequently asked questions

Can I replace a 7 Ah battery with a larger one?

Only where the panel or supply supports its type and capacity and the enclosure, connections and recharge requirements remain suitable. Greater capacity alone is not sufficient justification.

How long will an alarm battery last during a power cut?

Runtime depends on measured load, battery condition, temperature, discharge characteristics and equipment cutoff voltage. Use an appropriate calculation and verification method rather than promising a duration from the label alone.

Does a healthy voltage reading prove the battery is good?

No. Voltage is one observation. A supported load or capacity assessment and a charger check provide different information. Follow the equipment manufacturer's maintenance procedure.

Should alarm batteries be replaced on one fixed schedule?

Follow the applicable maintenance requirements and manufacturer guidance, supported by test results and site conditions. Temperature, discharge history and charger faults can alter service life, so a generic interval is not proof of condition.
