Commercial CCTV Camera Placement: Entrances, Car Parks and Perimeters

Commercial CCTV camera placement should follow the evidence the client needs from each location. A broad view can show that something happened without revealing who was involved. NZ installers should define the objective at entrances, car parks and perimeters separately, then select lens, height, lighting and recording settings for each task.

Write an objective for each view

Use a camera schedule with an event and an acceptance test for every location. An entrance camera may need a useful facial image, while a perimeter camera may need dependable detection of a person crossing a boundary. Avoid a vague objective such as cover the site. State where the subject must be visible and what recorded detail the operator needs to make a decision.

Place entrance cameras for faces and movement

Look at the route people actually use, including doors held open and queues. Mounting too high can produce the top of a head, while aiming directly towards bright exterior light can make an indoor entrance difficult. Use a practical test at the intended mounting position before final fixing. Check both directions of travel and the result when a visitor wears a cap or carries a large parcel.

Split car park overview and vehicle evidence

An overview is useful for movement and incident context, but plate capture is a separate design task. Consider lane position, speed, headlights, reflections and the capture angle. Do not promise readable plates from every corner of a wide car park image. Where plate evidence matters, allocate a dedicated capture point and a site trial, while retaining overview footage to explain the surrounding event.

Treat perimeters as changing scenes

Fences, vegetation, stacked materials and moving shadows can alter a perimeter view. Map likely obstructions and leave a maintenance allowance for growth or changes in storage. Position cameras to avoid unnecessary views outside the site. Where analytics are required, test the intended crossing direction and realistic movement speed. Identify who responds to an alert before creating many unattended alarm zones.

Check lighting without relying on a headline range

IR distance is not a guarantee of identification at that distance. Wet surfaces, nearby walls and spider webs can change the night image. Test with the final bracket and the expected scene lighting. Check whether supplementary white light affects neighbours, road users or staff. Set exposure for useful movement evidence rather than choosing the brightest still image available.

Leave a defensible placement record

Hand over a marked site plan, view thumbnails and the reason for each position. Record lens settings and any masking that protects unrelated areas. Explain remaining blind spots and avoid implying that a camera count guarantees complete coverage. Select suitable mounts and cable protection, then verify the installed view after other contractors finish. Small changes to signage or landscaping can invalidate an earlier trial.

Apply the design to the actual project

Use a temporary mount to test a difficult view before completing the cable route. Put a person or representative vehicle at the farthest relevant point and capture movement, not just a still pose. Compare the final recorded playback with the evidence objective. A bright wide view may look attractive on a sales demonstration while offering too little detail at the incident location. Keep the trial clip with the view schedule.

Write blind spots onto the plan and explain their operational consequence. A loading vehicle, parked van or new sign can hide an entrance even when the camera itself remains correctly aimed. Decide whether another view, a controlled route or a maintenance rule is the appropriate solution. After installation, review the scene with the client's operational staff, who know where people actually walk. Repeat the critical checks after landscaping or construction changes and preserve the approved view as a reference for later maintenance.

Commission evidence quality and failure recovery

Test the recorded image at the actual distance where the event matters. Use someone walking through the scene and a representative vehicle where relevant. Review the result on the client workstation, then export a short clip and open it independently. Live viewing, playback and export are different stages, and all three should pass. Include daylight, darkness and a transition in lighting when the objective depends on continuous coverage. Note any zone where the required detail is not achieved.

Disconnect an authorised test camera or network link under a controlled commissioning plan. Confirm that the fault reaches the responsible operator and that normal recording resumes after restoration. Where local recording or automatic retrieval is required, demonstrate that behaviour with the selected firmware and client. Do not assume that an SD-card slot or an interoperability logo proves that missing footage will be recovered. Record the outage interval, expected behaviour and actual result.

Commissioning acceptance checklist

Agree the expected result before testing. Use the installed configuration and retain evidence of each outcome, including a failure that must be corrected. The following checks supplement the exact manufacturer procedures and the approved project design.

Repeat affected checks after a material equipment, software or site change. Keep the test record with the as-built schedule so the next maintainer can understand which configuration passed and which assumptions still need review.

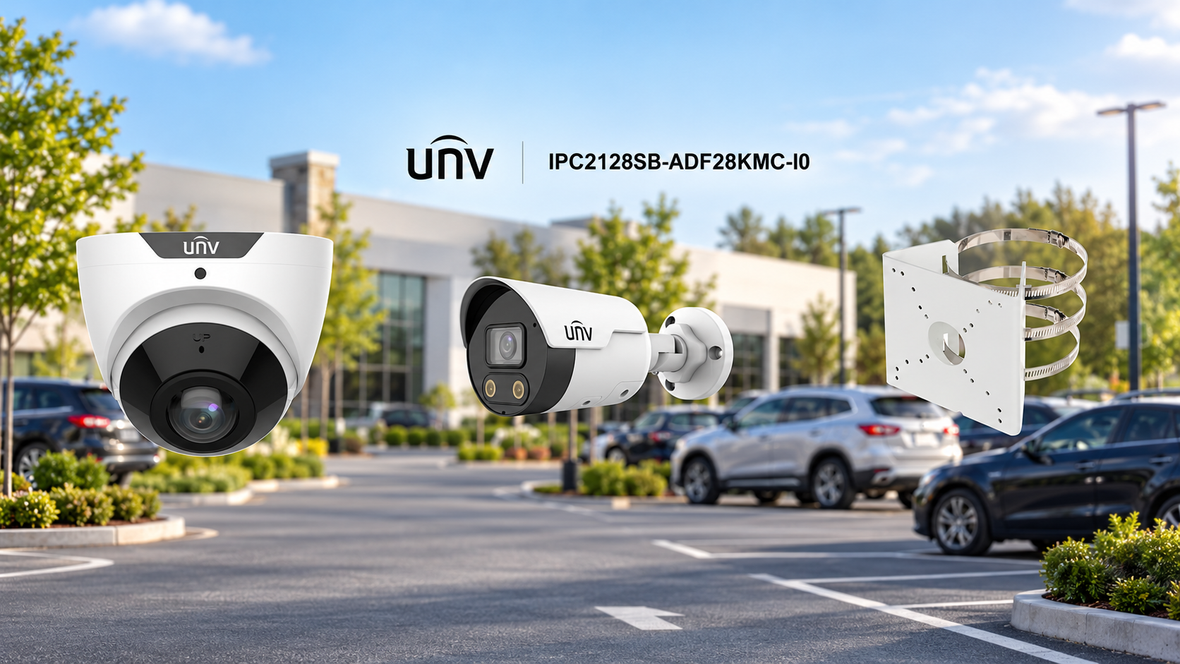

Equipment candidates and specification checks

These are relevant active catalogue candidates for a project review, rather than a universal recommendation or a promise of immediate stock. Use the full product page and current manufacturer information to confirm the supplied variant and its role in your design.

• UniView IPC3605SB-ADF16KM-I0 Prime-series H265 5MP PoE IP EXIR (20m). Confirm the exact supplied configuration, relevant interfaces and installation requirements before including it in the equipment schedule.
• IPC2128SB-ADF28KMC-I0 - UniView 8MP HD Fixed Active Deterrence Camera. Confirm the exact supplied configuration, relevant interfaces and installation requirements before including it in the equipment schedule.
• UniView TR-UP06-B-IN - Weatherproof Pole-Mount Adapter / Bracket. Confirm the exact supplied configuration, relevant interfaces and installation requirements before including it in the equipment schedule.

Review the relevant Essential Security Supplies equipment range alongside the intended workflow. For further context, read our related installer guide.

Frequently asked questions

Is a higher camera always more secure?

Height can reduce tampering, but an excessive viewing angle may reduce useful facial or plate detail. Balance protection with the evidence objective.

Can one camera provide overview and plate capture?

Sometimes, within a tightly defined scene. Prove both objectives in a site trial rather than assuming they share the same settings.

Should every camera use the same lens?

No. Choose the field of view for the distance and task, then test the recorded result.

Primary references and technical scope

Use the primary manufacturer or technical reference for the claims it covers. General design guidance does not replace the selected product's installation manual. Confirm current firmware, model variants and the approved project requirements before ordering or commissioning.

For site policy, consult the New Zealand Privacy Commissioner's CCTV guidance.
