Why the FERN360 EQ Series Sets the Standard for Access Control Bollards/Pedestals
The FERN360 EQ Series is a purpose-built range of floor-mount access control bollards/pedestals designed to house proximity readers, intercoms, push buttons, cameras, and access keypads in a single, weather-resistant enclosure. Manufactured from aluminium with an epoxy zinc primer and polyester powder coat finish, the EQ Series is engineered for both indoor and outdoor deployment across commercial, industrial, and high-security environments in New Zealand.
What distinguishes the EQ Series from generic mounting solutions is the integration of rain and sun shields directly into the bollard/pedestal design, eliminating the need for aftermarket weatherproofing and ensuring a clean, professional installation every time.
---
Who Uses the FERN360 EQ Series
The EQ Series is specified by security integrators, electrical contractors, architects, and facilities managers across a wide range of applications.
---
Commercial Building Entry
Multi-tenant office buildings, retail centres, and mixed-use developments rely on the EQ Series to present a consistent, professional access point at vehicle barriers, pedestrian gates, and lobby entries.
---
Industrial and Warehouse Facilities
High-traffic industrial sites require bollards/pedestals that can withstand physical impact, UV exposure, and New Zealand's variable weather. The aluminium construction and powder coat finish deliver the durability these environments demand.
---
Residential Estates and Gated Communities
For residential subdivisions and gated communities, the EQ Series provides a premium aesthetic that complements architectural landscaping while housing intercom and access control hardware securely.
---
Car Parks and Vehicle Entry Points
The dual-arm FPAC-EQ2 configuration is particularly suited to vehicle entry lanes where both a driver-height reader and an elevated camera or intercom are required at a single mounting point.
---
FERN360 EQ Series Bollard/Pedestal Models: Full Specifications
---
FPAC-EQ1 - Floor Mount Single Bollard/Pedestal (1170mm to 1600mm)
The FPAC-EQ1 is the core single bollard/pedestal in the EQ Series, available in three height configurations to suit different reader and intercom mounting requirements.
Construction: Aluminium
Finish: Epoxy zinc powder coat primer, polyester powder coat topcoat
Standard Colours: Black, Yellow (Blue available)
Mounting Plate: 182mm x 182mm with 140mm x 140mm mounting centres
Mounting Arm Projection: 114mm at 1170mm high
Suits: All EQ Series mounting panels and rain hoods
Use: Indoor and outdoor
| SKU | Configuration | Dimensions |
|---|---|---|
| FPAC-EQ1-BK | Black - 1170mm High | 75mm W x 75mm D x 1170mm H |
| FPAC-EQ13-BK | Black - 1270mm High Square | 75mm W x 75mm D x 1270mm H |
| FPAC-R1600-BK | Black - 1600mm High Rectangular | 1600mm H |
| FPAC-EQ1-Y | Yellow - 1170mm High | 75mm W x 75mm D x 1170mm H |
| FPAC-EQ13-Y | Yellow - 1270mm High Square | 75mm W x 75mm D x 1270mm H |
| FPAC-R1600-Y | Yellow - 1600mm High Rectangular | 1600mm H |
See our price - FPAC-EQ1 Floor Mount Bollard/Pedestal
---

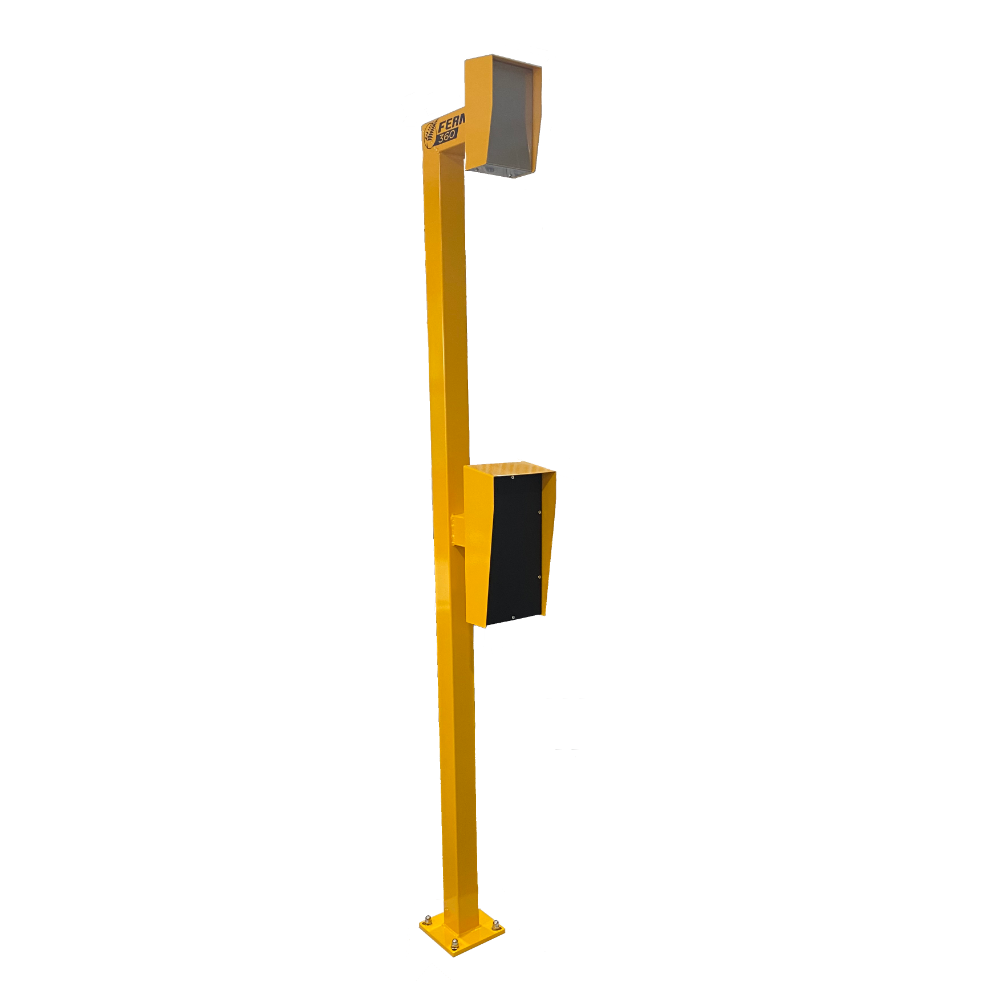

FPAC-EQ2 - Floor Mount 2.1m High Bollard/Pedestal (Single or Dual)
The FPAC-EQ2 is the tallest bollard/pedestal in the EQ Series, designed for dual-reader configurations or elevated single-reader installations at vehicle entry points and high-security pedestrian gates.
Construction: Aluminium
Finish: Epoxy zinc powder coat primer, polyester powder coat topcoat
Standard Colours: Black, Yellow (Blue available)
Dimensions: 75mm (W) x 75mm (D) x 2120mm (H)
Mounting Projections: Arms at 1170mm and 2120mm high
Mounting Plate: 182mm x 182mm with 140mm x 140mm mounting centres
Net Weight: 19.75 kg
Suits: All EQ Series mounting panels and rain hoods
Use: Indoor and outdoor
| SKU | Configuration |
|---|---|
| FPAC-EQ2-BK | Black - Dual Reader |
| FPAC-EQTR-BK | Black - 2.1m High Single |
| FPAC-EQ2-Y | Yellow - Dual Reader |
| FPAC-EQTR-Y | Yellow - 2.1m High Single |
See our price - FPAC-EQ2 2.1m Bollard/Pedestal
---
FERN360 EQ Series Rain Hoods and Mounting Panels: Full Specifications
Rain hoods and mounting panels are the interface between the bollard/pedestal and the access control device. Selecting the correct panel ensures the device is protected from weather, securely mounted, and correctly presented at the right height and angle. All panels below are compatible with the EQ Series floor-mount and wall-mount bollards/pedestals.
---
FPAC-ERS2013 - Access Control Reader Pedestal Mounting Panel (Small)
The FPAC-ERS2013 is the compact rain hood panel suited to single proximity readers, small intercoms, and push buttons.
Construction: Duragal steel
Finish: Epoxy zinc powder coat primer, polyester powder coat topcoat
Dimensions: 138mm (W) x 204mm (H)
Cabling Access: 14mm diameter
Inner Colours: Silver
Suits: All EQ Series wall mount and floor mount bollards/pedestals
Use: Indoor and outdoor
| SKU | Configuration |
|---|---|
| FPAC-ERS2013-BK | Black Cover, Silver Inner, 25mm Space |
| FPAC-ERSL2013XD-BK | Black Cover, Silver Inner, 25mm Space + Additional Shield |
| FPAC-ERS2013XD-BK | Black Cover, Silver Inner, 68mm Space |
| FPAC-ERS2013-Y | Yellow Cover, Silver Inner, 25mm Space |
| FPAC-ERSL2013XD-Y | Yellow Cover, Silver Inner, 25mm Space + Additional Shield |
| FPAC-ERS2013XD-Y | Yellow Cover, Silver Inner, 68mm Space |
See our price - FPAC-ERS2013 Mounting Panel
---
FPAC-ERS3643 - Access Control Reader or Intercom Mounting Panel (Medium)
The FPAC-ERS3643 accommodates larger intercoms, multi-button panels, and combination reader/intercom devices.
Construction: Duragal steel
Finish: Epoxy zinc powder coat primer, polyester powder coat topcoat
Dimensions: 360mm (W) x 435mm (H)
Cabling Space: 60mm
Inner Colours: Black or Silver
Suits: All EQ Series wall mount and floor mount bollards/pedestals
Use: Indoor and outdoor
| SKU | Configuration |
|---|---|
| FPAC-ERH3643-BK | Black Cover, Black Inner, 60mm Space |
| FPAC-ERS3643-BK | Black Cover, Silver Inner, 60mm Space |
| FPAC-ERH3643-Y | Yellow Cover, Black Inner, 60mm Space |
| FPAC-ERS3643-Y | Yellow Cover, Silver Inner, 60mm Space |
See our price - FPAC-ERS3643 Mounting Panel
---
FPAC-ERH4718 - Access Control Mounting Panel Large
The FPAC-ERH4718 is the largest panel in the EQ Series rain hood range, designed for multi-device installations including large intercoms, camera modules, and combined reader/keypad assemblies.
Construction: Duragal steel with 10mm polyethylene black eco board mounting board
Finish: Epoxy zinc powder coat primer, polyester powder coat topcoat
Dimensions: 195mm (W) x 479mm (H)
Cabling Space: 60mm or 25mm
Inner Colours: Black or Silver
Suits: All EQ Series wall mount and floor mount bollards/pedestals
Use: Indoor and outdoor
| SKU | Configuration |
|---|---|
| FPAC-ERH4718-BK | Black Cover, Black Inner, 60mm Space |
| FPAC-ERS4718-BK | Black Cover, Silver Inner, 60mm Space |
| FPAC-ERSL4718-BK | Black Cover, Silver Inner, 25mm Space |
| FPAC-ERH4718-Y | Yellow Cover, Black Inner, 60mm Space |
| FPAC-ERS4718-Y | Yellow Cover, Silver Inner, 60mm Space |
| FPAC-ERSL4718-Y | Yellow Cover, Silver Inner, 25mm Space |
See our price - FPAC-ERH4718 Large Mounting Panel
---
How to Select the Right EQ Series Bollard/Pedestal and Rain Hood Combination
Choosing the correct bollard/pedestal and rain hood pairing comes down to four factors: the height of the device being mounted, the physical size of the device, the cabling volume, and the installation environment.
---
Step 1: Determine Reader or Intercom Height
For standard proximity readers and keypads at pedestrian gates, the FPAC-EQ1 at 1170mm is the most common specification. For vehicle entry where a driver remains seated, the 1270mm or 1600mm variants provide a more ergonomic reach height. For dual-device installations (reader plus camera, or reader plus intercom at two heights), the FPAC-EQ2 dual-arm configuration is the correct choice.
---
Step 2: Match the Rain Hood to the Device Footprint
Use the FPAC-ERS2013 (138mm x 204mm) for compact single readers and push buttons. Use the FPAC-ERS3643 (360mm x 435mm) for standard intercoms and combination panels. Use the FPAC-ERH4718 (195mm x 479mm) for large intercoms, multi-button assemblies, or where additional vertical clearance is required.
---
Step 3: Select Cabling Space
The 25mm cabling space suits installations with minimal cabling. The 60mm space accommodates standard access control cabling runs. The 68mm extended-depth variant (FPAC-ERS2013XD) is recommended where cable management or additional hardware depth is required behind the panel.
---
Step 4: Choose Colour
Black is the most specified finish for commercial and architectural applications. Yellow is the standard for high-visibility industrial and car park environments. Blue is available on request for specific project requirements.
---
EQ Series Extensions and Wall Mount Options
For installations where a floor-mount bollard/pedestal is not practical, the FERN360 range includes wall mount options and extension posts.
The FPAC-EW Wall Mount Bollard/Pedestal provides a 300mm or 600mm projection from a wall surface, accepting all EQ Series mounting panels.
The FPAC-XSE Extension Posts in 150mm and 300mm lengths allow height adjustment of existing EQ Series bollards/pedestals without replacing the base unit.
---
Compliance and Standards Considerations
Access control bollard/pedestal installations in New Zealand are subject to the requirements of NZS 4600 (Steel Structures Standard) for structural fixings, and any applicable local authority building consent requirements for permanent ground-fixed structures. For installations adjacent to vehicle paths, reference AS/NZS 1158 for lighting and visibility requirements.
For guidance on access control system design and compliance, the New Zealand Security Association (NZSA) provides industry standards and installer accreditation resources.
---
Frequently Asked Questions
---
Are EQ Series bollards/pedestals suitable for coastal environments?
The aluminium construction and polyester powder coat finish provide good resistance to salt air. For installations within 500 metres of the coastline, additional protective coatings or stainless steel hardware for fixings are recommended. Contact Essential Security Supplies for project-specific advice.
---
Can I use any access control reader with the EQ Series mounting panels?
The EQ Series mounting panels are designed as universal platforms. The FPAC-ERS2013 suits most compact readers up to 138mm wide. The FPAC-ERS3643 and FPAC-ERH4718 accommodate larger devices. Custom panel sizes are available on request.
---
What is the lead time for EQ Series bollards/pedestals?
EQ Series bollards/pedestals and rain hoods are stocked in New Zealand. Contact Essential Security Supplies for current availability and lead times on specific configurations.
---
Are custom powder coat colours available?
Yes. Custom powder coat colours are available on request for project quantities. Standard colours (black and yellow) are available from stock.
---
Shop the Full FERN360 EQ Series Range
Browse all FERN360 EQ Series bollards/pedestals, rain hoods, mounting panels, and accessories at Essential Security Supplies.
