FERN360 Swing Gates: Choosing the Right Model for Your Access Control Project

FERN360 stainless steel swing gates are a trusted choice for access control installations across commercial, corporate, and public-sector facilities in New Zealand. The range covers standard swing gates, swing speed gates, swing barrier gates, and outdoor-rated models - giving specifiers and installers a complete solution from a single manufacturer. This guide covers the key model families, specifications, and selection criteria to help you choose the right gate for your project.

---

The Role of Swing Gates in Modern Access Control

Swing gates are the most widely deployed pedestrian access control barrier in commercial environments. Unlike tripod turnstiles or full-height rotor gates, swing gates offer a wide, accessible passage that accommodates wheelchair users, prams, and luggage - making them the preferred choice for lobbies, transit hubs, corporate reception areas, and anywhere ADA or accessibility compliance is required.

FERN360 swing gates are constructed from SUS304 stainless steel with a hairline 400 finish, providing a premium aesthetic that suits high-specification interior environments. All models operate at 100-240V / 50-60Hz with a 24V operational voltage, and integrate with RS485 and dry contact interfaces for connection to access control panels, card readers, and building management systems.

---

FERN360 Swing Gate Model Families

The FERN360 swing gate range is divided into four families, each suited to different environments and throughput requirements.

---

Standard Swing Gates (FGES-SW Series)

The FGES-SW series is the core indoor swing gate range, available in 600mm and 900mm passing widths and in single-lane (1), double-lane (2), and quad-lane (4) configurations. All models share a 1400 x 185mm cabinet footprint, brushed motor drive with encoder and clutch, and a 0.2-second operating speed with a throughput of 35-40 people per minute. The 600mm models feature a 12mm marble top cover and 10mm acrylic filling panel with LED strip, while the 900mm model uses an acrylic and SUS top cover with 6mm acrylic panel.

---

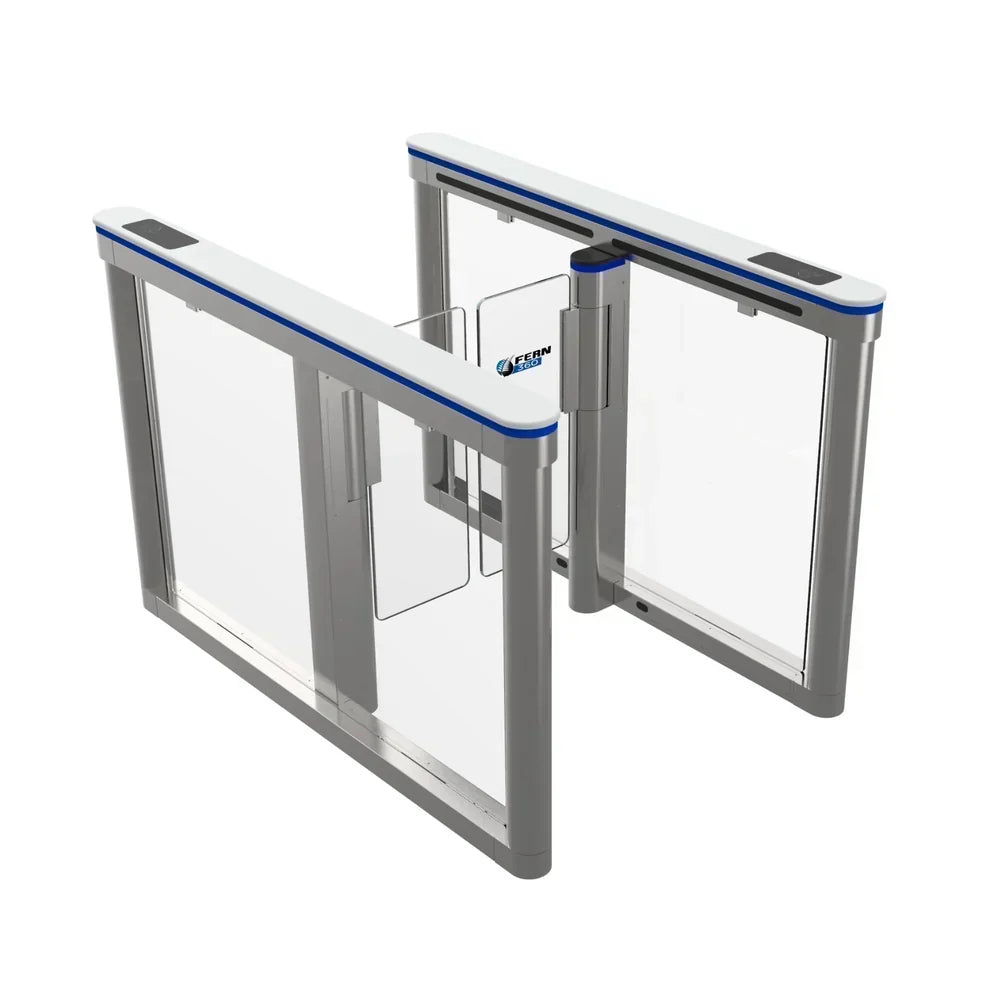

Swing Speed Gates (FGES-SGSW Series)

The FGES-SGSW series combines the swing gate mechanism with a speed gate profile, delivering a sleeker, lower-profile cabinet suited to premium corporate lobbies and high-traffic environments where aesthetics are a priority. Available in 600mm (FGES-SGSW600-4) and 900mm (FGES-SGSW900-2) passing widths.

---

Swing Barrier Gates (FGES-SWB Series)

The FGES-SWB series is designed for environments requiring a more robust physical barrier, such as car parks, loading docks, and semi-public areas. Available in 800mm (FGES-SWB800-1) and 900mm (FGES-SWB900-1) single-lane configurations.

---

Outdoor Swing Gates (FGES-SWO Series)

The FGES-SWO series is rated for outdoor installation, making it suitable for building entrances, transport terminals, and perimeter access points exposed to the elements. Available in 600mm (FGES-SWO600-2) and 900mm (FGES-SWO900-2) double-lane configurations.

---

How to Choose the Right FERN360 Swing Gate

Selecting the right model depends on three key factors: passing width, lane configuration, and installation environment. Use the criteria below to match the correct FERN360 swing gate family to your project requirements.

---

Passing Width: 600mm vs 800mm vs 900mm

The 600mm passing width is the standard for most indoor commercial applications and meets typical accessibility requirements. The 800mm and 900mm options are recommended where wheelchair access, pram access, or high-volume luggage throughput is a design requirement. For projects subject to the New Zealand Building Code clause D1 (Access Routes) or the Standards New Zealand accessibility guidelines, confirm the required clear opening width with your project architect before specifying a model.

---

Lane Configuration: Single, Double, or Quad

Single-lane (suffix -1) models are suited to low-to-medium traffic entry points. Double-lane (suffix -2) configurations double throughput without requiring additional controller infrastructure. Quad-lane (suffix -4) configurations are designed for high-traffic lobbies and transit environments where peak-hour flow management is critical.

---

Indoor vs Outdoor Installation

Standard FGES-SW and FGES-SGSW models are designed for indoor use. For any installation exposed to rain, humidity, or direct sunlight, specify the FGES-SWO outdoor series. Confirm the IP rating requirement for your project with your installer before ordering, as outdoor environments in New Zealand can vary significantly between coastal and inland sites.

---

Integration and Credential Compatibility

All FERN360 swing gates support RS485 and dry contact communication interfaces, making them compatible with the majority of commercial access control panels. Credential support includes IC card, ID card, and barcode readers. For biometric or mobile credential integration, confirm compatibility with your access control platform prior to specification.

---

Product Specifications

Specification	Detail
Material / Finish	1.2mm SUS304 Stainless Steel, Hairline 400 finish
Cabinet Dimensions (SW series)	1400 x 185 x 980mm (600mm models) / 1400 x 185 x 1020mm (900mm models)
Passing Width	600mm / 800mm / 900mm (model dependent)
Top Cover	12mm marble with acrylic + LED strip (SW600) / Acrylic + SUS (SW900)
Filling Panel	10mm acrylic with LED strip (SW600) / 6mm acrylic (SW900)
Working Voltage	100-240V, 50-60Hz
Operational Voltage	24V DC
Drive Unit	Brushed Motor + Encoder + Clutch
Operating Speed	0.2 seconds
Throughput	35-40 people per minute
Communication Interface	RS485 / Dry Contact
Credential Compatibility	IC card / ID card / Barcode
Working Temperature	-25°C to 70°C
Max Power Consumption	35W
Photocells	5 pairs
Supply / Lead Time	Made to Order - contact ESS for lead time

For full model-specific specifications and configuration options, view our products in the FERN360 Swing Gates collection.

---

Why Choose FERN360 Swing Gates for Your NZ Project

FERN360 swing gates are specified by security integrators and facilities managers across New Zealand for their build quality, integration flexibility, and range depth. With models covering indoor, outdoor, standard, speed gate, and barrier configurations - all in SUS304 stainless steel - the range supports a wide variety of project types from corporate headquarters to transport infrastructure. All models are made to order, ensuring each installation is configured to project requirements. To discuss your project or request a quote, contact the Essential Security Supplies team or view our full swing gate range.
