Retail CCTV Planning: Entrances, POS Areas, Stockrooms and Evidence Quality
Essential Security Supplies
Retail CCTV planning is not simply a matter of putting a camera in every corner. For New Zealand retailers, the useful question is whether the recorded footage can explain a real incident clearly enough for authorised staff to review, export and, where appropriate, provide to Police or another legitimate recipient. Entrances, point-of-sale areas, aisles, stockrooms and loading points each create different evidence requirements, lighting conditions and privacy considerations.
A strong design starts with the incident and works backwards. Decide what the client needs to see, at what distance, under what lighting, and how the footage will be retrieved. Camera resolution matters, but lens choice, field of view, mounting height, exposure, motion, compression, recorder settings and the physical layout can matter just as much. The examples below use current catalogue options from FERN360, TVT, UniView and Dahua to illustrate specification choices without assuming that one brand or model suits every retail site.
Start with the evidence objective, not the camera count
Before selecting hardware, define the purpose of each view. An entrance camera may need to provide useful facial detail as people cross a threshold. A POS camera may need to show the interaction around the counter and the movement of goods without unnecessarily recording sensitive information. A stockroom camera may need to show who entered a controlled area and what happened at a dispatch or receiving point. A wide sales-floor overview may be useful for context but still be unsuitable for identification.
Write these objectives into the camera schedule. A simple description such as “entrance identification”, “checkout transaction context”, “stockroom doorway” or “loading handover” gives the installer something testable at commissioning. It also discourages the common mistake of judging a system only by whether every camera produces a live picture.
The New Zealand Office of the Privacy Commissioner advises organisations to have a defined purpose for CCTV, collect only what is necessary, tell people they are being recorded, control access and decide how long information needs to be retained. Audio is more intrusive and should not be enabled merely because a camera has a microphone. Review the Commissioner's CCTV guidance as part of the client's policy and privacy review.
Entrance cameras: design for identification in difficult light
Retail entrances are deceptively difficult scenes. A person may move from bright outdoor daylight into a darker shop, walk beneath signage, turn away from the camera or be partly obscured by another customer. Automatic doors, glass, reflections and seasonal displays can also change the scene. A camera that looks excellent after hours may produce much weaker evidence during a busy afternoon.
For the entrance view, prioritise a useful angle and controlled field of view over covering the largest possible area. Mounting too high can produce mostly the top of a person's head. Going too wide can leave too few useful pixels on the subject. Where the scene is challenging, a motorised varifocal lens can make final framing easier because the installer can tighten the view after the camera is mounted.
One current ESSL example is the FERN360 FGSIP-P5TMVSA-27135 5MP motorised varifocal turret. Its catalogue specification includes a 2.7 to 13.5 mm motorised lens and wide dynamic range, both relevant features to evaluate for an entrance scene. The correct zoom position still has to be commissioned on site. Do not treat a WDR specification as proof that every backlit doorway will automatically produce identification-quality footage.
Test the entrance while the store is operating normally. Have a person walk the actual path in both directions. Check the recorded footage, not only live view, and repeat the test when exterior light is strong if daylight contrast is part of the risk.

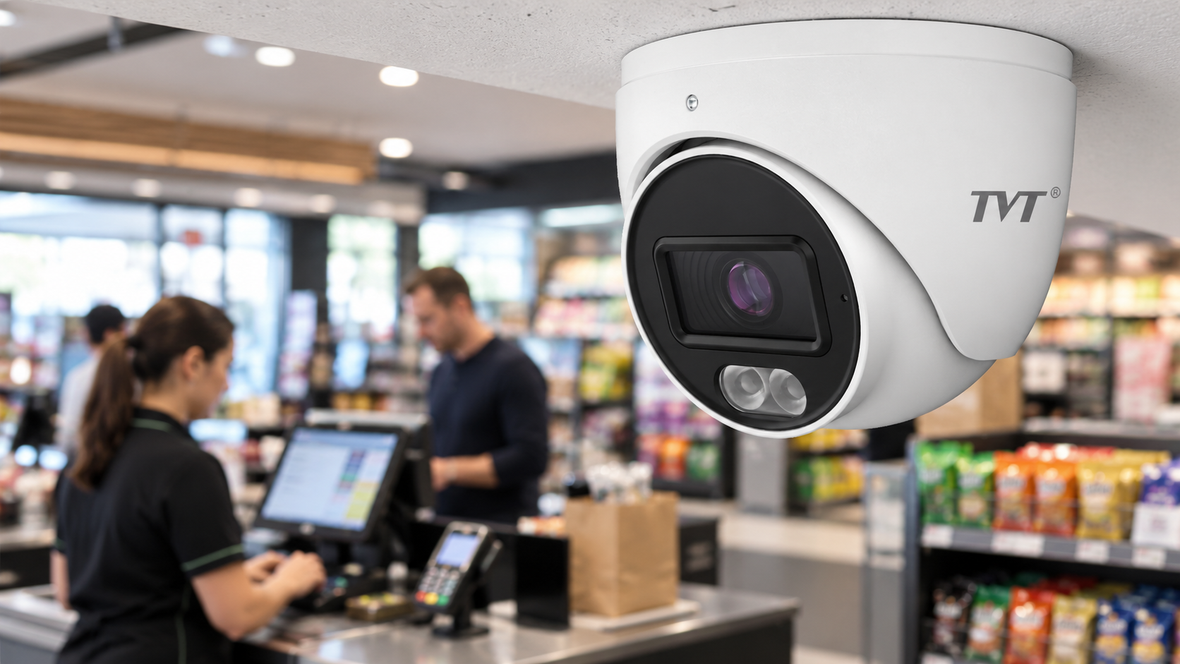

POS areas: capture transaction context without collecting more than needed
At a checkout, the objective is usually to understand what happened around the transaction. The camera may need to show the operator, customer position, counter surface and movement of merchandise. That does not mean the camera should be aimed directly at a PIN pad, customer phone screen or other sensitive detail. Frame the scene around the evidential purpose and coordinate it with the retailer's privacy and payment procedures.
If the client wants video associated with POS transaction records, verify the actual integration. Accurate time synchronisation is essential, but matching timestamps alone is not the same as an integrated POS search workflow. Confirm recorder, software and third-party compatibility before promising transaction-linked playback.
The TVT-D2.8-F-6MP 6MP fixed-lens camera is an example of a current TVT option in the ESSL catalogue. Its 2.8 mm fixed lens can suit a wider scene where the mounting position and required detail have already been established. The product also includes active-deterrence and two-way audio capabilities, but those features should be treated as separate design decisions. Do not enable audio by default. Confirm necessity, client policy and privacy implications first.
For POS commissioning, create an approved sample event. Record a short transaction, retrieve it using the staff workflow and export the relevant clip. Check that the exported file opens on an approved independent workstation and that the scene shows the intended activity without unnecessary sensitive detail.
Stockrooms, receiving and staff-only areas need purpose-built views
Stockrooms often fail because the camera is asked to cover too much. Tall shelving, stacked cartons, open doors, trolleys and moving stock create occlusion. A single wide camera at the ceiling may provide an overview but miss the detail needed at the point where goods change custody.
Start with choke points. Stockroom doors, dispatch benches, receiving areas and loading handover points are often more valuable than a very wide view of every shelf. Where the retailer uses access control, accurate timestamps can help authorised investigators compare video with door events. Again, confirm the actual integration rather than assuming two systems will correlate automatically.
The UniView IPC3618SB-ADF28KMC-I0 8MP Tri-Guard camera is one option to evaluate where higher recorded resolution and event features are relevant. Higher megapixel counts can provide more recorded detail, but they also affect bandwidth, storage and recorder workload. The useful result depends on the final field of view, motion, exposure and recording settings. Specify the scene first, then confirm the camera and NVR can meet it together.
Employee monitoring also requires care. The Privacy Commissioner notes that workplace recording must not be unlawful, unfair or unreasonably intrusive. For staff-only areas, document why the camera is required, who may review footage and how long it will be retained. Avoid cameras in sensitive areas where surveillance would be inappropriate.
Evidence quality is more than megapixels
“4K” or “8MP” on a specification sheet does not guarantee useful evidence. A high-resolution camera can still produce weak footage if the subject is too small in the frame, motion blur is excessive, the lens is wrong, the image is heavily compressed or the scene is poorly exposed. Conversely, a carefully framed lower-resolution camera may provide better evidence for a defined point than a much wider high-resolution overview.
For each critical camera, review these factors together:
- Field of view: does the subject occupy enough of the recorded image at the point where identification or detail is required?
- Lens: is a fixed lens suitable, or does the site benefit from motorised varifocal adjustment?
- Lighting: test backlight, reflections, low light and transitions between day and night.
- Shutter and motion: check moving people, not only a static person standing under the camera.
- Compression and bitrate: confirm the recorded stream retains the detail the client expects.
- Frame rate: select it for the scene and evidence requirement rather than using one setting everywhere.
- Recorder capacity: confirm channel count, incoming bandwidth, decoding, storage and retention requirements for the chosen streams.
For higher-detail applications, the Dahua IPC-HFW5849T1P-ASE-LED 8MP network camera is another current catalogue example. Its specification includes an 8MP sensor and low-light/full-colour features. Whether it is appropriate for an entrance, sales floor or another retail zone still depends on the required field of view, mounting position, lighting and recorder compatibility. Compare exact models and firmware requirements rather than assuming features apply across an entire brand.
Plan retention, storage and export before handover
Retention should be based on the retailer's legitimate purpose and policy, not an arbitrary “keep everything forever” setting. The Privacy Commissioner advises organisations to delete personal information once it is no longer needed. From a technical perspective, retention is also a storage calculation involving camera count, resolution, codec, bitrate, frame rate, recording schedule and activity level.
Build the storage requirement from the final recording profiles. Allow for the actual recorder configuration and any redundancy or operational headroom required by the project. Essential Security Supplies also provides CCTV planning resources and equipment through the CCTV collection, and installers can use the site's storage planning tools where appropriate before finalising HDD capacity.
Evidence export deserves its own acceptance test. Train authorised staff to locate an event, select the correct cameras and time period, export the footage and open it successfully away from the recorder. Record who has permission to perform exports and where exported files may be stored. Avoid ad hoc transfer of identifiable customer footage through personal phones, messaging apps or social media.
Privacy and security belong in the CCTV design
CCTV footage is personal information when people can be identified. Retailers therefore need more than a camera layout. They need clear signage, a defined purpose, access controls, retention rules, a process for responding to access requests and safeguards against unauthorised disclosure. The Office of the Privacy Commissioner specifically warns retailers about publishing suspected offender images on public “walls of shame” or social media. Sharing footage with Police for a legitimate law-enforcement purpose is different from public publication.
Security of the surveillance system matters as well. Use appropriate account permissions, strong credentials, supported firmware and controlled remote access. Decide who owns administrative credentials and how they will be transferred or recovered. Where a third-party security provider can access footage, the retailer remains responsible for appropriate safeguards and should have clear contractual and operational controls.
For a wider project process, see the Essential Security Supplies guide to security project planning for NZ installers. Lens selection is also covered in our fixed lens vs varifocal CCTV camera guide.
Commission the system with real retail conditions
Do not sign off the system from an empty store. Put promotional stands, queue barriers and representative stock where they will normally sit. Walk the customer route. Open the stockroom door. Move a trolley through the receiving area. Test daylight and low-light conditions where they matter. Review playback at the client workstation and export sample evidence.
A practical acceptance record should state the purpose of each critical view, the expected result, the configuration tested, the actual result and any corrective action. If a camera does not achieve the required evidence objective, change the lens, framing, mounting position, exposure or model as necessary and repeat the test.
| Retail zone | Typical evidence objective | Commissioning check |
|---|---|---|
| Entrance | Useful facial detail and direction of travel | Walk the real route in strong daylight and normal interior light |
| POS | Transaction context and movement of goods | Run an approved sample transaction and verify playback/export |
| Stockroom door | Entry/exit context | Test with the door open and closed and normal stock present |
| Receiving/loading | Goods handover and movement | Test with trolleys, cartons and representative delivery activity |
| Sales-floor overview | Incident context and movement | Check occlusion when the store is normally merchandised |
Frequently asked questions
What resolution should a retail CCTV camera use?
There is no single resolution that suits every retail view. Choose resolution together with lens, field of view, distance, lighting, frame rate, compression and recorder capacity. Prove the result with recorded footage at the actual site.
Should a POS camera show the EFTPOS PIN pad?
Normally the design should avoid collecting unnecessary sensitive detail. Frame the transaction area around the legitimate evidence objective and coordinate the view with the retailer's payment and privacy procedures.
Is a varifocal camera better for a retail entrance?
It can be useful where the installer needs to fine-tune the field of view after mounting. A fixed lens can still be appropriate when the mounting geometry and required scene are already well defined.
Should retail CCTV record audio?
Do not enable audio simply because the camera supports it. New Zealand privacy guidance treats audio as more intrusive and advises against recording sound where visual footage is sufficient.
How long should a retailer keep CCTV footage?
Retention should match the retailer's legitimate purpose, operational needs and applicable legal obligations. The Privacy Commissioner advises deleting personal information once it is no longer required, so the client should have a documented retention policy rather than retaining footage indefinitely.
