Security Fog Systems: When to Specify Them and How to Integrate an Alarm Trigger

Security fog systems can be considered where an assessed intrusion risk calls for a rapid reduction in visibility around protected assets. They need a site-specific design, compatible alarm interfaces and a controlled commissioning procedure. They are not a general substitute for detection, physical security or response. For NZ installers, begin with the exact machine's current manual and the premises' operating and safety arrangements before deciding how any alarm trigger should work.

Establish suitability before choosing output capacity

Describe the protected assets, likely intrusion scenario, occupied areas and response arrangement. Identify people who may remain on site outside normal hours, including cleaners, contractors and staff working alone. Check adjoining tenancies, shared spaces and possible movement of fog beyond the intended area. The design must consider normal occupation as well as the intrusion scenario.

Assess room geometry, ventilation, open doors, shelving and the permitted mounting positions. A headline cubic-metre figure does not establish performance in an open-plan shop, a ventilated workshop or connected rooms. Use the manufacturer's selection method and obtain model-specific advice. Do not promise a universal discharge duration or coverage result based only on floor area.

Coordinate the building and response arrangements

Consult the responsible site personnel about evacuation, fire detection, ventilation and emergency response. Identify any required specialist review or approvals for the exact premises. Do not claim that fog is universally harmless, suitable for every occupant or compatible with every fire detector. Use the manufacturer's current safety information and the site's risk assessment.

Agree who receives a fog activation or fault message and what they should do. Responders need accurate site information and a safe attendance plan. The installation should not rely on an untrained employee entering an area of poor visibility to decide whether an alarm is genuine. Include normal shutdown, service and restoration procedures in the operator documentation.

Build a cause-and-effect sequence before wiring

Describe the proposed sequence in plain language before drawing terminals. Identify the armed or enabled condition, the alarm condition, any supported validation, service inhibition and the resulting outputs. Distinguish an alarm panel's relay capability from the machine's exact input requirements. A relay closing is not a complete specification for a safe and reliable trigger.

Use only the input arrangement permitted for the selected machine and configuration. Depending on the model, the interface may use dry contacts or another defined electrical arrangement. Verify voltage, polarity, supervision, timing and contact state from the matching manual. Do not copy a terminal diagram from a different machine, revision or operating mode.

The UR FOG Fast 03/02 Pro Plus February 2025 manual describes model-specific inputs, outputs and operating arrangements. Its details must be checked against the supplied hardware and current manufacturer advice. This article deliberately provides design questions rather than a universal wiring recipe. Final connections belong in a controlled, model-specific design and commissioning record.

Treat inhibition and fault reporting as essential functions

Provide a documented method to prevent unintended discharge during installation, servicing and authorised tests, following the exact manual. Confirm how that state is indicated and who can control it. A software note saying do not trigger does not replace the manufacturer's required service procedure. Restore normal operation only after the approved checks are complete.

Identify all supported status outputs and connect the required ones to a monitored destination. Separate ready, fault, low consumable, tamper and activation meanings where the model provides them. An alarm panel must interpret the signal correctly and present a useful event name. A fault that is merely visible on the machine may be missed when the premises is unattended.

Check behaviour after power loss, low battery where applicable, communications loss and restoration. Confirm what remains enabled and what requires operator action. Do not assume every machine resumes the same state after an outage. Record the intended and observed result for the exact operating mode.

Match physical installation to the manual

Check mounting support, orientation, nozzle direction and exclusion clearances. Keep the discharge path clear of obstructions and follow the manufacturer's restrictions for nearby materials and equipment. Confirm service access for consumables and inspection. A concealed installation still needs suitable environmental conditions, access and a correctly designed discharge path.

Use the specified consumables and replacement procedure. Do not substitute theatrical fog fluid or another manufacturer's cylinder because the description sounds similar. Keep safety data and product identifiers in the service record. Where a unit has pressurised or heated components, follow its safe isolation and service instructions rather than treating it like an ordinary low-voltage detector.

Use a controlled commissioning plan

Notify the site, monitoring provider and other affected parties through the agreed process. Keep unauthorised people outside the test area and follow the manufacturer's safety arrangements. Do not improvise a discharge demonstration in an occupied shop. If a required functional test cannot safely take place, record it as outstanding rather than passing it from a relay click.

Distinguish design evidence from a performance guarantee

For an illustrative retail project, the designer may identify a protected stock zone, an enable condition, an alarm sequence and a monitoring destination. Those are design inputs. The final configuration still needs the exact machine's permitted interface, safety review and acceptance procedure. A successful demonstration in another room does not establish the result on this site.

Record ventilation, door position and other conditions during a functional test. If the premises changes later, reassess the design. New shelving, an opened partition or changed operating hours can affect both coverage and safe use. Include those change triggers in the client handover so the system is not treated as permanently suitable regardless of alterations.

Plan ongoing service and accountable operation

Provide operator training on status indications, fault reporting, service inhibition and authorised restoration. Identify who may change settings and who maintains the unit. Keep the selected manual revision, safety information, cause-and-effect record and test evidence together. A future technician should not need to reconstruct the trigger logic from unlabeled wires.

Follow the model's maintenance and consumable requirements and review after an activation or relevant building change. Investigate unexpected activations through the complete alarm sequence, rather than bypassing safeguards to make the system simpler. Specify security fog only when the site, equipment and response arrangements can support a documented and maintainable installation.

Equipment selection and technical references

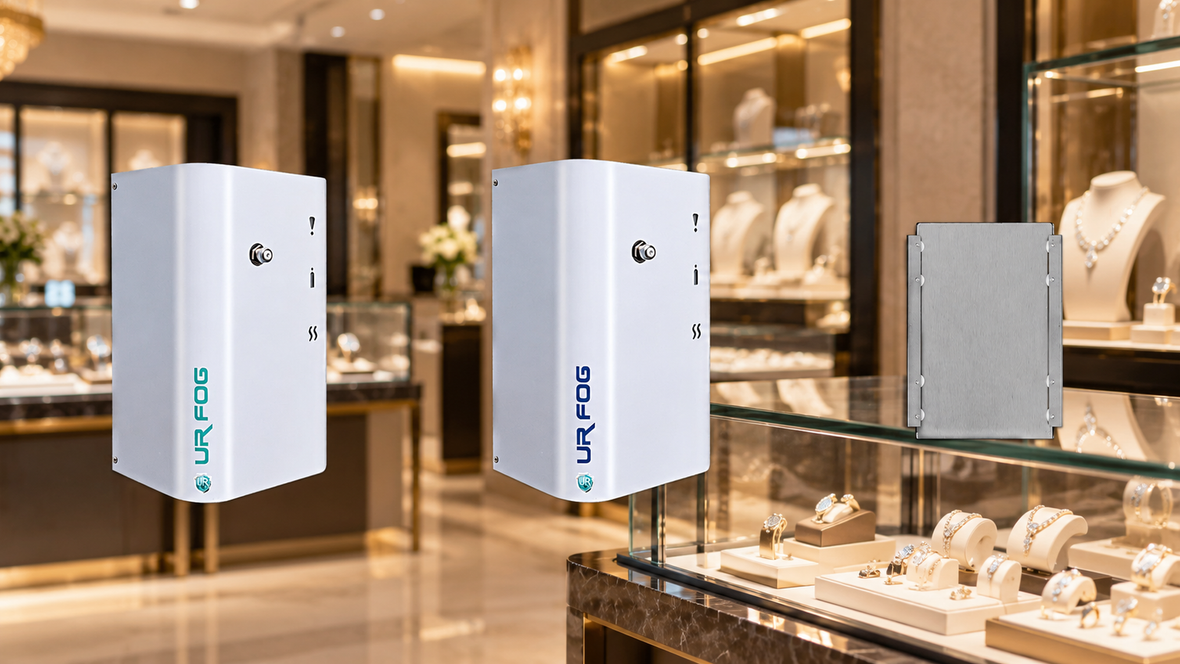

Use these alarm options as a starting point for a project specification. The pictured items are equipment candidates, not a pre-approved complete design. Confirm model, accessories, interface support and suitability before ordering.
