Speed Gates: The Smart Choice for High-Traffic Access Control

Speed gates have become the go-to access control solution for modern commercial buildings, transport hubs, and corporate campuses. Whether you're managing a busy office foyer, a stadium entrance, or a government facility, speed gates deliver the perfect balance of security, throughput, and aesthetics. In this guide, we cover everything you need to know about speed gates — how they work, the different types available, and what to look for when choosing the right system for your site.

What Are Speed Gates?

Speed gates — also known as speed stiles or optical turnstiles — are pedestrian access control barriers designed to manage the flow of authorised personnel through a controlled entry point. Unlike traditional full-height turnstiles, speed gates use retractable panels or swing barriers to allow fast, smooth passage while detecting and deterring unauthorised entry.

They are commonly integrated with access control readers, card systems, biometric scanners, and visitor management platforms to create a seamless, secure entry experience.

How Do Speed Gates Work?

Speed gates operate using a combination of infrared sensors, optical detection technology, and motorised barrier panels. Here's the basic process:

1. A user presents their credential — access card, PIN, biometric, or QR code — to the reader mounted on the gate housing.
2. The access control system validates the credential and sends an authorisation signal to the gate.
3. The barrier panels retract or swing open, allowing the authorised user to pass through.
4. Sensors detect the user passing through and close the panels behind them, preventing tailgating.
5. If an unauthorised entry is attempted, the gate triggers an alarm or alert.

The entire cycle typically takes less than a second, making speed gates ideal for high-throughput environments.

Types of Speed Gates

Not all speed gates are the same. Understanding the different configurations helps you select the right product for your environment.

Sliding Panel Speed Gates

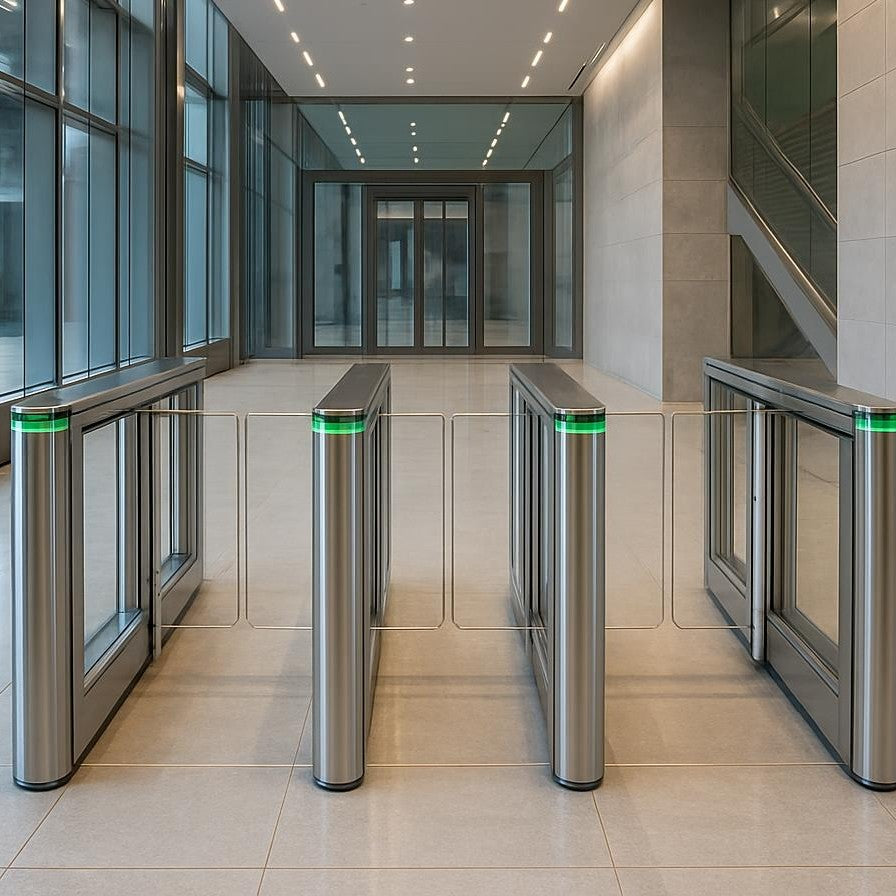

Sliding panel gates use retractable glass or acrylic panels that slide horizontally into the gate housing. They offer a sleek, modern appearance and are popular in corporate lobbies and premium office buildings.

Swing Barrier Speed Gates

Swing barrier gates use arms or panels that pivot outward to allow access. They are well-suited to environments requiring wider lane widths, such as wheelchair-accessible entrances or sites with high volumes of people carrying equipment or luggage.

Optical Turnstiles (No Physical Barrier)

Some speed gate systems use optical detection only — no physical barrier — relying on sensors and alarms to deter unauthorised entry. These are used in environments where throughput speed is the priority and the risk profile is lower.

Full-Height Speed Gates

For higher-security environments, full-height speed gate configurations provide a physical barrier from floor to ceiling, preventing climbing or jumping over the gate.

Key Features to Look For in Speed Gates

When evaluating speed gates for your site, consider the following features:

Throughput Speed — Look for gates rated for 30–60 persons per minute for busy environments. High-traffic sites such as transport hubs or stadiums require fast cycle times.

Tailgate and Piggybacking Detection — Advanced infrared and 3D sensor arrays detect when more than one person attempts to pass on a single credential. This is a critical security feature for any controlled access point.

Integration Compatibility — Ensure the gate is compatible with your existing access control platform, whether that's a card reader, biometric system, or visitor management software. Most modern speed gates support Wiegand, OSDP, or RS-485 protocols.

Lane Width — Standard lane widths range from 550mm to 900mm. Wider lanes (900mm+) are required for DDA/accessibility compliance to accommodate wheelchairs and mobility aids.

Barrier Material — Glass panels offer a premium aesthetic but require more maintenance. Acrylic panels are more impact-resistant and cost-effective for high-traffic environments.

Fail-Safe vs Fail-Secure Operation — Fail-safe gates open automatically in a power failure (for fire egress compliance). Fail-secure gates remain locked. Your site's requirements and local building codes will determine which mode is appropriate.

IP Rating — For outdoor or semi-outdoor installations, ensure the gate housing carries an appropriate IP rating (IP54 or higher) for dust and moisture resistance.

Alarm and Monitoring Outputs — Look for relay outputs that integrate with your building management system or security monitoring platform for real-time alerts.

Where Are Speed Gates Used?

Speed gates are deployed across a wide range of industries and environments:

• Corporate offices and headquarters — controlling access to reception areas and secure floors
• Government and defence facilities — managing personnel entry with high-security credential verification
• Transport hubs — airports, train stations, and ferry terminals managing passenger flow
• Healthcare facilities — restricting access to sensitive areas such as pharmacies, data centres, and operating theatres
• Education campuses — managing student and staff access across multiple buildings
• Stadiums and entertainment venues — processing large volumes of ticket holders quickly and securely
• Data centres and server rooms — enforcing strict access control for critical infrastructure

Speed Gates vs Traditional Turnstiles: What's the Difference?

Speed gates are the preferred choice when aesthetics, throughput, and integration capability matter. Traditional turnstiles remain a cost-effective option for lower-risk, lower-traffic environments.

Installation and Maintenance Considerations

Speed gates require professional installation by a qualified access control technician. Key installation considerations include:

• Floor preparation — gates must be mounted on a level, solid surface with appropriate cable conduit runs for power and data
• Power supply — most gates require a dedicated 240V supply with battery backup for fail-safe operation
• Network connectivity — IP-connected gates require a network drop at each lane for remote management and monitoring
• Ongoing maintenance — regular servicing of motor mechanisms, sensor calibration, and panel alignment is recommended every 6–12 months to maintain reliable operation

Choosing the Right Speed Gate for Your Site

Selecting the right speed gate comes down to four key factors: your security requirements, expected throughput, site aesthetics, and integration needs. A site security assessment by a qualified access control specialist will help you determine the correct lane configuration, barrier type, and credential technology for your environment.

See our range Our FERN360 full range of speed gates and pedestrian access control solutions, or contact our team for a site-specific recommendation.

Essential Security Supplies is a New Zealand-based supplier of professional-grade security hardware and access control systems. We supply security integrators, facilities managers, and commercial contractors across New Zealand.
