Warehouse Access Control: Staff, Contractors, Roller Doors and Restricted Areas

Warehouse access control needs to distinguish pedestrian movement, contractor access and vehicle or roller-door operation. Those openings have different hardware and safety requirements. NZ installers should define permissions and door events alongside the site's goods-handling workflow, without treating an access relay as a complete machine-control design.

Define boundaries by operational risk

Separate general staff entry, restricted stores, plant areas and goods-transfer zones. Ask which people need access, for how long and under whose authority. Mark shared entrances and areas that remain open during a shift. A broad warehouse permission can conceal important internal restrictions. Create a role and area matrix before choosing readers, then retain it as the basis for commissioning and later changes.

Handle contractors with expiry and ownership

Give each contractor an approved access period and a responsible host or manager. Define the process for early completion, suspension or a lost credential. Avoid a permanent shared contractor credential that removes accountability. Include cleaners and service technicians who attend outside staff hours. Test permissions at the intended shift boundaries and verify the revocation process on the actual controller topology.

Treat roller doors as a specialist interface

An access command may request operation through an approved roller-door controller interface. It does not replace the machine's safety devices, local controls or required operating procedures. Obtain the door contractor's interface specification and define the intended trigger and feedback. Keep pedestrian escape separate from a vehicle opening. Do not promise safe movement simply because a credential energises a relay.

Use contacts and event timing deliberately

A door contact can report whether an opening is closed, while a lock monitor or controller event may describe another condition. Label these separately. Set held-open timing around real loading operations and define authorised overrides. Overly short timing can produce nuisance alerts; an unlimited bypass can remove useful supervision. Test a normal delivery and an abnormal opening to prove the selected rules.

Coordinate access and evidence

Where an investigation needs video, align door identifiers and timestamps across the access and CCTV systems. Confirm any automatic camera-callup integration on the exact platforms. A credential event does not prove the cardholder was the only entrant or establish what goods were moved. Keep the investigation workflow proportionate and access to records controlled. Avoid turning a convenience integration into an unsupported evidence claim.

Plan recovery around shift operation

Identify which doors must remain usable locally during a communications interruption and what permissions are cached. Check the effect of a pending contractor revocation. Document manual assistance and approved mechanical access without distributing unrestricted codes. Test restoration and event reconciliation. Hand over the schedule, interface drawings and maintenance responsibilities so later shift changes do not undermine the original restrictions.

Apply the design to the actual project

Draw pedestrian and vehicle-opening interfaces separately. For a roller door, show the approved command path, position feedback and the door contractor's responsibilities. For a pedestrian door, show its own lock and exit arrangement. Keeping these distinct avoids treating an access permission as proof that a machine may move safely or that a vehicle opening provides an acceptable pedestrian route. Record the authorised operating procedure beside the interface drawing.

Test permissions against actual goods-handling periods. Use normal staff, a temporary contractor and a credential outside its approved hours. Include a delivery that holds an opening longer than ordinary pedestrian use and verify the intended event timing. Reconcile contact state, controller action and relevant video without assuming they are the same kind of evidence. Give the shift manager a process for temporary overrides with an owner and restoration point. Review the rules when the loading workflow changes so an exception does not become a permanent uncontrolled opening.

Separate security permissions from safe escape

Build permissions around roles and areas, then apply schedules and expiry dates. Give contractors time-limited access and allocate an owner to remove it. Use named operator accounts, restrict configuration rights and keep an audit trail of administrative changes. Test a valid credential, an expired credential and a credential without the required area permission. Include a revoked credential after synchronisation. Those tests reveal errors that a single successful presentation cannot show.

Entry control must be coordinated with the building's approved escape and accessibility arrangements. Do not treat a software unlock command as proof of acceptable emergency egress, and do not add an interlock that delays escape without the required design approval. Document the mechanical exit path, release devices and interfaces, with responsibility assigned to the relevant building professionals. New Zealand Building Code guidance on access routes and movement to a place of safety provides the starting point for the project's design review.

Commissioning acceptance checklist

Agree the expected result before testing. Use the installed configuration and retain evidence of each outcome, including a failure that must be corrected. The following checks supplement the exact manufacturer procedures and the approved project design.

Repeat affected checks after a material equipment, software or site change. Keep the test record with the as-built schedule so the next maintainer can understand which configuration passed and which assumptions still need review.

Equipment candidates and specification checks

These are relevant active catalogue candidates for a project review, rather than a universal recommendation or a promise of immediate stock. Use the full product page and current manufacturer information to confirm the supplied variant and its role in your design.

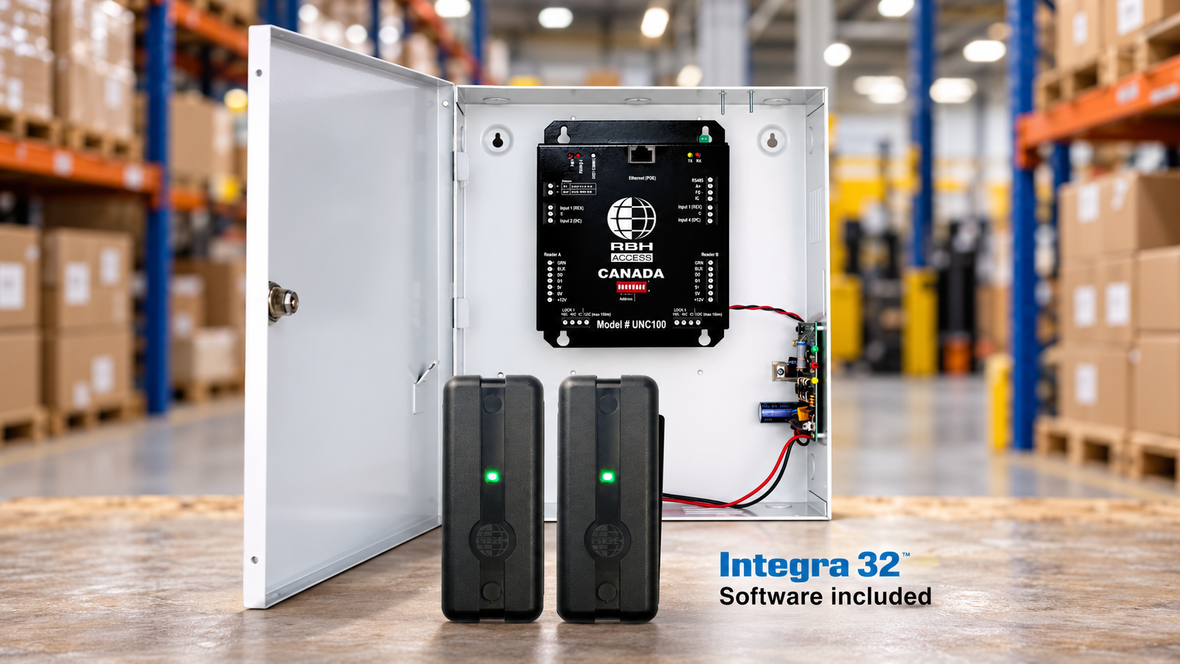

• RBH-IRC-2000 - RBH Integra32 2-Door Controller (UL Listed) includes Enclosure with 13.8VDC, 2A power supply. Confirm the exact supplied configuration, relevant interfaces and installation requirements before including it in the equipment schedule.
• RBH-BFR350 - Blueline Fingerprint Reader, PIN Keypad and Card Reader. Confirm the exact supplied configuration, relevant interfaces and installation requirements before including it in the equipment schedule.
• RBH-EXITRDR - RBH Exit Reader Module-URC, IRC (Ver4+) & UNC (INT). Confirm the exact supplied configuration, relevant interfaces and installation requirements before including it in the equipment schedule.

Review the relevant Essential Security Supplies equipment range alongside the intended workflow. For further context, read our related installer guide.

Frequently asked questions

Can an access relay replace a roller-door safety controller?

No. Use the door contractor's approved interface and preserve its safety arrangement.

Should contractors share one credential?

Individual, time-limited credentials give clearer accountability and revocation where the design supports them.

Does a door contact confirm the lock is secure?

It reports its configured door-position state. Lock monitoring is a separate function that must be specified.

Primary references and technical scope

Use the primary manufacturer or technical reference for the claims it covers. General design guidance does not replace the selected product's installation manual. Confirm current firmware, model variants and the approved project requirements before ordering or commissioning.
