Warehouse CCTV Design: Camera Coverage, Loading Bays, Storage and Perimeters

A good warehouse CCTV design starts with the movement of people, vehicles and goods, not with a camera count. Racking, pallets, forklifts, roller doors and loading vehicles can all create changing blind spots, so the design needs to define what evidence is required at each point in the workflow. For New Zealand warehouses, that usually means separating general overview coverage from identification views at loading bays, high-value storage, access points and perimeter approaches.

Essential Security Supplies carries CCTV options from TVT, FERN360, Dahua and UniView that can be applied to different warehouse roles. The important point is to select the exact model, lens and recorder capacity for the task rather than assuming one camera type will cover every zone.

Start with warehouse zones and evidence objectives

Before selecting hardware, walk the site and divide it into operational zones. Typical areas include receiving bays, dispatch bays, long rack aisles, picking and packing benches, high-value cages, staff entrances, vehicle gates, yards and external perimeter lines. Each zone should have a defined evidence objective.

For example, an aisle overview may only need to show movement and direction of travel, while a loading bay may need enough detail to identify a driver, confirm which vehicle was present and show the transfer of goods. A high-value cage may need a clear entry view plus an internal overview. A vehicle gate may need a separate plate-oriented view if number plate evidence is required.

Mounting height matters. Cameras placed very high can cover a large area, but faces and labels become smaller in the recorded image. In many warehouses, a combination of higher overview cameras and lower targeted cameras provides more useful evidence than a single camera trying to do both jobs.

Loading bays need more than one useful angle

Loading bays are among the most demanding CCTV areas in a warehouse. Trucks can block one another, open doors can produce strong backlighting and staff may work close to the rear of vehicles where an overhead camera cannot clearly see what is happening. Design the coverage around the actual transaction.

A practical loading bay layout may use one wider camera for context and a second tighter view for the goods transfer area. Motorised varifocal cameras can be useful where the installer needs to set the field of view precisely after the final mounting position is known.

The TVT-B2812POE-6MP-AI listed by Essential Security Supplies combines 6MP resolution with a 2.8 to 12mm motorised varifocal lens and PoE. That type of lens flexibility can be useful when the mounting location is fixed but the installer still needs to tune the view for a dock door, dispatch lane or loading zone. The exact analytics, recording mode and NVR compatibility should always be confirmed against the selected TVT recorder and current firmware.

Commission the loading bay with a real vehicle in position. Check the recorded image with the roller door open, closed and during the lighting transition between the two. A design that looks correct on a floor plan can perform very differently when bright daylight enters a darker warehouse.

Long aisles and storage areas require controlled fields of view

Warehouse aisles change as stock levels change. A camera that works when racks are half empty may lose important sight lines once pallets are stacked to full height. Temporary staging areas can create the same problem. During commissioning, test with representative stock positions and record any views that depend on keeping an aisle end clear.

Fixed wide-angle cameras are useful for general coverage, while varifocal models can help narrow the scene and increase useful image detail at a specific distance. The correct choice depends on whether the requirement is general activity, person identification, a doorway, a picking bench or an area where small items need to be seen.

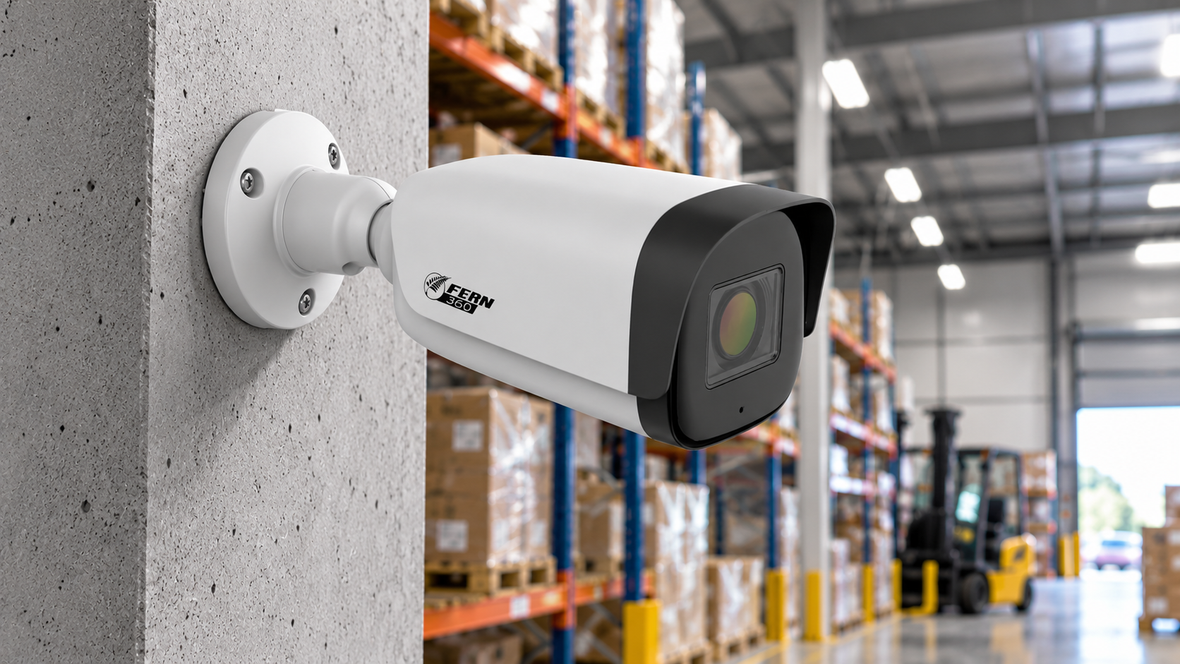

The active FERN360 FGSIP-C5BMVA-2812 in the Essential Security Supplies catalogue uses a 5MP sensor, Starlight technology, 120dB WDR and a 2.8 to 12mm motorised lens, with IR specified up to 80 metres. Those specifications make it a candidate for longer warehouse approaches or external areas where the installer needs a tighter field of view. Actual usable identification distance will still depend on scene width, mounting angle, lighting, motion and the required evidence quality.

For high-value cages and restricted stores, use a view that clearly records the entry point and another view where necessary to show activity inside the area. CCTV should complement access control records rather than be treated as a replacement for them.

Perimeters, yards and vehicle approaches need targeted cameras

Perimeter design should identify where a person or vehicle can realistically approach the building. A large yard may need general situational awareness as well as tighter views at vehicle entrances, pedestrian gates or vulnerable fence lines. Do not rely on a single wide image if the requirement is to identify a person or vehicle at the edge of the property.

The active Dahua IPC-HFW5631E-Z5E listed by Essential Security Supplies is a 6MP WDR bullet camera with a 7 to 35mm motorised zoom lens and IR specified up to 100 metres. A narrower lens range like this can suit perimeter approaches where the installer needs to concentrate pixels on a gate, driveway or more distant target. It is not a substitute for a plate-recognition camera where reliable licence plate capture is a defined project requirement.

Night testing is essential. IR distance figures do not automatically mean that identification quality will be achieved at the same distance. Reflective surfaces, wet ground, vehicle headlights, adjacent lighting and subject motion can all affect the result. Test the recorded image under the actual night conditions expected at the site.

Use wide-angle and active deterrence cameras where they solve a specific problem

Some warehouse areas benefit from very wide coverage, particularly open dispatch floors, cross-aisles or broad external approaches. Wide-angle cameras can reduce the number of separate views needed for general situational awareness, but the trade-off is lower pixel density on distant subjects. Use them where context is the priority, then add targeted cameras where identification is required.

The UniView IPC2128SB-ADF28KMC-I0 is listed by Essential Security Supplies as an 8MP fixed active deterrence camera. Active deterrence features can be useful around selected external approaches where the project calls for a visible or audible response, but they should only be enabled as part of an agreed site response plan. The installer should confirm detection zones, schedules, escalation procedures and the risk of nuisance activations before handover.

UniView also offers wide-angle options such as the IPC3605SB-ADF16KM-I0, which is listed with a 180 degree ultra-wide-angle lens. A camera like this can be useful for overview coverage, but it should not be expected to replace a tighter identification camera at a doorway or remote perimeter point.

Plan the network, PoE and recorder before installation

A warehouse CCTV design is not complete until the network and recording platform are sized. Count camera channels, calculate PoE demand, check switch uplinks and confirm how the traffic will reach the NVR. Large warehouses may require multiple PoE switches or fibre links between communications cabinets rather than long copper runs back to one location.

Storage should be calculated from the actual recording profile. Resolution, frame rate, codec, bitrate, motion activity, retention days and camera count all influence capacity. Do not size storage using megapixel count alone. Allow for future cameras if the client is likely to expand the warehouse or add new external areas.

Essential Security Supplies provides a surveillance range covering cameras, recorders and associated CCTV equipment. When mixing equipment or expanding an existing system, confirm exact protocol support and feature compatibility before ordering. Basic video interoperability does not guarantee that every analytic, audio, alarm or smart-search feature will operate across different manufacturers.

Worked example: sizing a 20-camera warehouse CCTV system

Consider a warehouse with eight aisle and storage cameras, four loading-bay cameras, four perimeter cameras and four access-point or high-value-area cameras. This is an illustrative planning example, not a recommended camera count for every site. Final quantities and views should come from the site survey and evidence objectives.

These figures are assumptions, not specifications for the cameras featured above. At 80 Mb/s, daily storage is about 0.864 TB using decimal units; over 30 days it is about 25.9 TB. Higher real bitrates, audio, extra metadata and recording overhead increase the requirement, while effective event recording may reduce it. Design usable capacity after RAID or redundancy losses, and remember RAID is not a backup.

Also verify the actual per-camera maximum PoE draw, switch per-port power limits and total PoE budget. Allow for uplink capacity, cable distances and future expansion. Use the ESSL CCTV storage calculator guide for retention assumptions and the PoE switch sizing guide when preparing the final equipment schedule.

Commission the system using real warehouse conditions

Commissioning should prove the evidence objective, not simply confirm that a picture appears on screen. Record representative activity at each important zone. For a loading bay, use a real truck if possible. For an aisle, walk the full length with stock at realistic heights. For a perimeter gate, test a vehicle approach during the day and at night.

Review playback on the workstation that the client will actually use. Export a short clip and confirm that it opens independently. Check camera names, timestamps and time synchronisation across the system. If an incident moves from the yard to the loading bay and then into a storage area, operators need to follow that event quickly across multiple cameras.

TVT, FERN360, Dahua and UniView in a warehouse project

These four brands can all form part of a warehouse CCTV specification, but the selection should be made at model level. The following examples are active Essential Security Supplies catalogue products and illustrate different camera roles:

• TVT-B2812POE-6MP-AI: 6MP PoE bullet camera with a 2.8 to 12mm motorised varifocal lens. Useful for project evaluation where the final framing needs adjustment.
• FERN360 FGSIP-C5BMVA-2812: 5MP Starlight bullet camera with motorised 2.8 to 12mm lens, WDR and long-range IR specification.
• Dahua IPC-HFW5631E-Z5E: 6MP WDR bullet camera with 7 to 35mm motorised zoom for tighter long-range views.
• UniView IPC2128SB-ADF28KMC-I0: 8MP fixed active deterrence camera for applications where deterrence forms part of the approved response design.

The correct NVR, firmware and camera combination should be verified before deployment. Keep the camera schedule, IP addressing, switch layout, lens settings and retention design with the as-built documentation so future service work can be performed without guessing the original design intent.

Frequently asked questions

How many CCTV cameras does a warehouse need?

There is no reliable camera count based only on floor area. The number depends on rack layout, loading bays, ceiling height, evidence objectives, access points, perimeter exposure and the required level of detail.

Is 4K always better for warehouse CCTV?

No. Resolution is only one part of the design. Lens choice, lighting, subject distance, frame rate, compression, mounting angle and recording quality can matter just as much. A correctly framed lower-resolution camera can provide more useful evidence than a very wide 4K view.

Should loading bays use fixed or varifocal cameras?

Both can work. Fixed lenses are suitable when the geometry is known and repeatable. Motorised varifocal cameras give the installer more flexibility to tune the field of view during commissioning, which can be useful around loading bays and long approaches.

Can one perimeter camera identify vehicles and cover the whole yard?

Usually that is a compromise. A wide camera can provide context, while a tighter camera can concentrate detail on a gate or driveway. If reliable licence plate capture is required, specify and test a dedicated plate-recognition solution.

How often should warehouse CCTV views be reviewed?

Review them after rack changes, building work, new staging areas, changes to loading operations or any incident that reveals a blind spot. Warehouses are dynamic environments, so the original camera layout should not be treated as permanent.

Get warehouse CCTV specification support

Essential Security Supplies can help installers and integrators review camera roles, lens selection, NVR capacity, storage, PoE and project compatibility for warehouse CCTV systems. Browse our surveillance equipment range or contact Essential Security Supplies with your site plan, required retention period and key evidence objectives for specification assistance and a project quotation.

For CCTV use in New Zealand, also consider the Privacy Commissioner's guidance on privacy and CCTV when defining camera placement, access to recordings and operating procedures.
