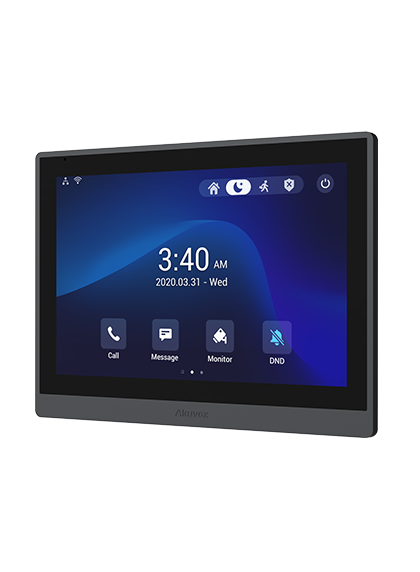

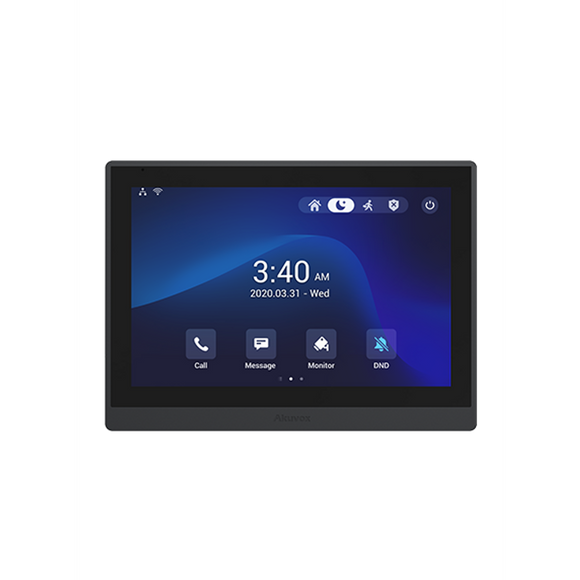

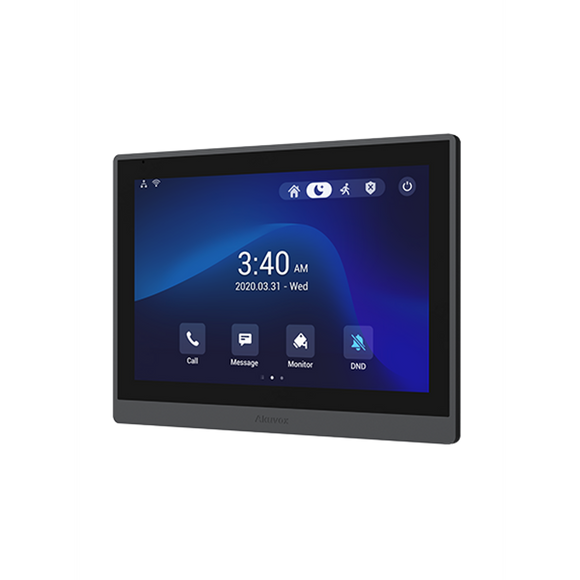

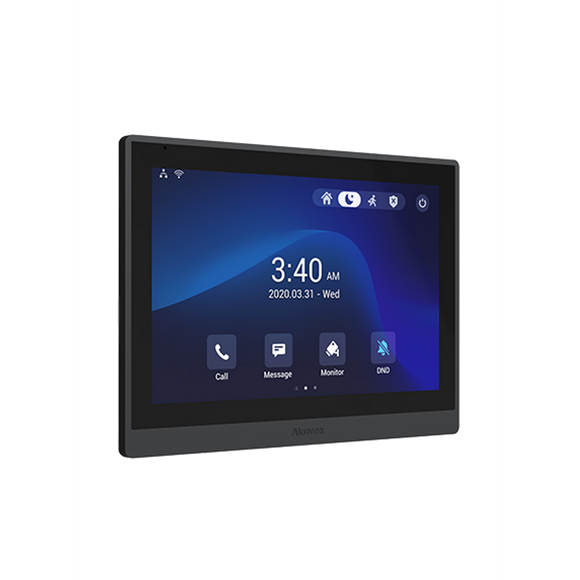

IT88A - Akuvox 10" Android Indoor Monitor WiFi with Camera

IT88 Specification

• Physical & Power

  Front panel: Aluminium alloy

  RAM / ROM: 2GB / 8GB

  Display: 10 Inch IPS LCD

  Screen: 10 Inch capacitive touch screen

  Wi-Fi: IEEE802.11 b/g/n, @2.4GHz

  BLE: Support BLE 4.2

  Camera: 1MP camera, CMOS

  Memory slot：1 Micro SD slot

  RS485 port: Support

  Relays out: 2

  Bell in: 1

  IO: 8

  Microphone: -26dB

  Speaker: Dual speakers, 4Ω / 3W

  Ethernet ports: 1xRJ45, 10/100Mbps adaptive

  802.3af Power-over-Ethernet

  12V DC connector (if not using PoE)

  Tamper resistant: Support

  Installation: Wall-mounted & Desktop

  Dimension: 251x182.5x29.75mm

  Working Humidity: 10~90%

  Working Temperature: -10°C ~ +45°C

  Storage Temperature: -20°C ~ +70°C

• Touch Screen Display

  Display Mode: Normally black, Transmissive

  LCD Size: 10inch (Diagonal)

  Aspect Ratio: 16:10

  Resolution: 1280x800

  Contrast ratio: 900:1

  Luminance: 350 cd/m²

  Viewing Angle: 80° Left, 80° Right, 80° Upper, 80° Lower

  Touch Screen: Projected capacitive

• Audio

  SIP v1 (RFC2543), SIP v2 (RFC3261)

  Narrowband audio codec: G.711a, G.711μ, G.729

  Broadband audio codec: G.722

  DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

  Echo Cancellation

  Voice Activation Detection

  Comfort Noise Generator

  Automatic Gain Control

• Video

  Streaming formats: H.263 & H.264

• Networking

  Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP

• Deployment & Maintenance

  Auto-Provisioning

  Web management portal

  Web-based packet dump

  Configuration backup / restore

  Firmware upgrade

  System logs (include door access logs)

• Voice Assistant

  Voice pickup distance up to 5 meters

  Voice recognition accuracy up to 95%

  Privacy protection with native voice data

  Support English

• Application Scenario

  Villas

  Apartment complexes

  Home automation systems

  Modern interiors
