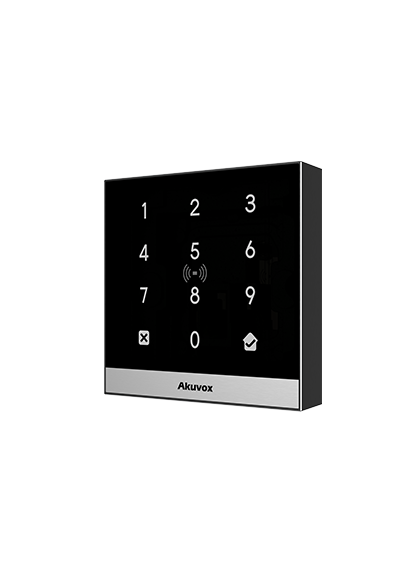

A02 - Akuvox IP Access Control Terminal Keypad

A02 Specification

• Physical & Power

  Front panel: Touch Keypad

  Frame: Aluminum Alloy

  RFID card reader: 13.56MHz & 125kHz

  Relay out: 1

  Inputs: 2

  Wiegand: Support

  Speaker: 8Ω / 0.5W

  Tamper proof alarm: Support

  Ethernet port: RJ45, 10/100Mbps adaptive

  802.3af Power-over-Ethernet

  12V DC connector (if not using PoE)

  Power output: 12V 600mA

  IP Level: IP65

  Installation: Flush-mounted or Wall-mounted

  Dimension: 86 x 86 x 33 (mm)

  Working Humidity: 10~90%，no condensing

  Working Temperature: -20°C ~ +55°C

  Storage Temperature: -30°C ~ +70°C

• Capacity

  User Capacity: 20,000

  Card Capacity: 20,000

  Event Log: 100,000

• Deployment & Maintenance

  Auto-Provisioning

  Web management portal

  Web-based packet dump

  Configuration backup / restore

  Firmware upgrade

  System logs

• Networking

  Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

• Door Entry Feature

  Access schedule export/import

  Access level management

  Supports switch to reader mode

  Door access logs query and export

  Flexible scheduling and attendance management
