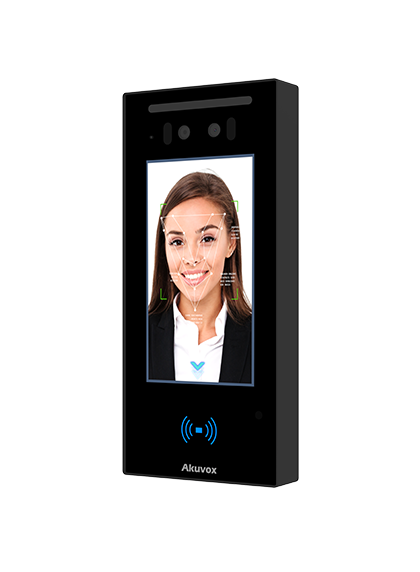

E16C - Akuvox Face Recognition Door Phone

E16 Specification

• At a Glance

  Visible light facial recognition;

  Better hygiene with touchless biometric authentication, fever and mask detection;

  Anti-spoofing algorithm against photo and video attack;

  20,000 face capacity & 20,000 card capacity;

  Face recognition duration less than 0.2s/user, face recognition accuracy rate greater than 99.7%;

  Allows both audio and video communication to an IP phone, mobile client, or softphone;

  Multiple verification methods including: face, PIN, cards and QR codes;

  Stand-alone operation;

  Configuration via web browser;

• Anti-epidemic Function

  Mask Detection

  Body Temperature Detection [Only E16C(MD01) & E16C(MD02) support]

• Physical & Power

  Housing Material: Plastic

  Display: 5 Inch IPS LCD, 1280x720

  Camera: 2M pixels, WDR

  Wiegand Port: Support

  RS485 Port: Support

  RF Card Reader: 13.56MHz, NFC

  Relay In / Out: 1 / 1

  Ethernet Port: RJ45, 10/100Mbps adaptive

  Bluetooth: Support

  802.3af Power-over-Ethernet

  12V DC Connector (if not using PoE)

  Tamper: Support

  Installation: Wall-mounted

  IP Level: IP65

  Working Humidity: 10~90%, no condensing

  Working Temperature: -20℃~+55℃

• Identification

  Identification Mode: Face, PIN, NFC, RFID Card, BLE & QR code

  Identification Speed: ＜200ms

• Capacity

  Face Capacity: 20,000

  Card Capacity: 20,000

  Event Log: 50,000

• Forehead Temperature Measurement

  Only E16C(MD02) support

  Distance: 0.3M ~ 1M

  Accuracy: 0.1℃

  Deviation: ±0.3℃

  Range: 34℃ ~ 45℃

• Wrist Temperature Measurement

  Only E16C(MD01) support

  Distance: 1cm ~ 5cm

  Accuracy: 0.1℃

  Deviation: ±0.3℃

  Range: 34℃ ~ 45℃
