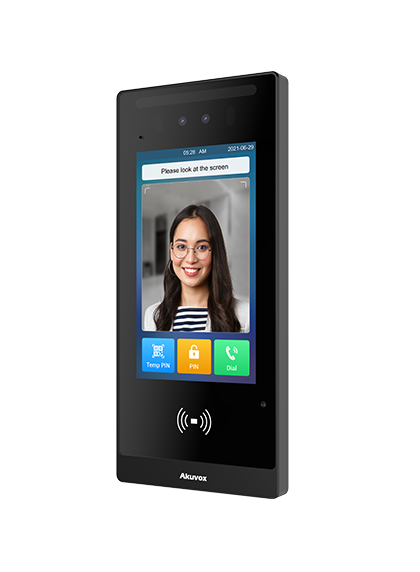

E18C - Akuvox 7" Face Recognition Door phone

E18 Specification

• Physical & Power

  Housing Material: Plastic

  Display: 7 Inch IPS LCD, 1024x600

  Camera: 2M pixels, WDR

  Wiegand In: 1

  Wiegand Out: 1

  RS485 Port: 1

  RF Card Reader: 13.56MHz,125kHz & NFC

  Relay In / Out: 3 / 2

  TF Card Slot: 1

  Ethernet Port: RJ45, 10/100Mbps adaptive

  Bluetooth: Support

  Reset: 1

  802.3af Power-over-Ethernet

  12V DC Connector (if not using PoE)

  Tamper: Support

  Installation: Wall-mounted

  IP Level: IP65

  Working Humidity: 10~90%, no condensing

  Working Temperature: -20℃~+55℃

  Storage Temperature: -30℃~+60℃

• Identification

  Identification Mode: Face, PIN, NFC, RFID Card, BLE & QR code

  Identification Speed: ＜200ms

• Capacity

  Face Capacity: 20,000

  Card Capacity: 20,000

  Event Log: 50,000

• Forehead Temperature Measurement

  Only E18C(MD02) support

  Distance: 0.3M ~ 1M

  Accuracy: 0.1℃

  Deviation: ±0.3℃

  Range: 34℃ ~ 45℃
