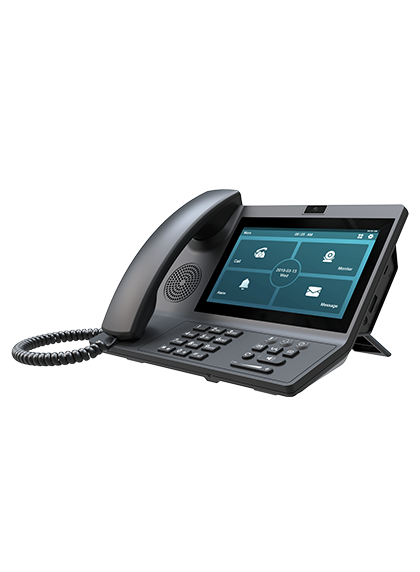

VP-R49G - Akuvox Android IP Video Phones Premium Android IP Video

R49G Specification

• Video Features

  Video Codec: H.263, H.264, H.265, VP8

  Video Solution: QCIF, CIF, VGA, 4CIF, 720P

  Video Bitrate: 64kbps-2Mbps

  Adaptive Bandwidth Adjustment

  Video Character: PIP, Full Screen, Local Video ON/OFF Control, Color Enhancement

  Image Codec: JPEG, GIF, PNG, BMP

  Hardware Encode/Decode Acceleration

  Variable Bit-Rate

• Audio Features

  Wideband Audio Codec: G.722

  Narrowband Audio Codec: PCMA, PCMU, OPUS, iLBC, G.729

  Noise Suppression, VAD, CNG, AGC,

  Audio Accelerator

  Echo Cancelation: AEC, AES, NLP

  Full-Duplex Speakerphone

  4 DTMF modes: RFC2833, In-Band, SIP INFO, Auto

• Network and Security

  SIP V1(RFC2543), SIP V2(RFC3261)

  Network Type: IPv4 & IPv6

  UDP Keep Alive

  NAT traversal: STUN

  IP Assignment: DHCP, Static IP, PPPoE, VPN, VLAN

  QoS: Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ)

  Protocols: HTTP/HTTPS/FTP/TFTP/SNMP/DNS/SNTP/RTSP/SRTP/RTP/TCP/UDP/TLS/ICMP/DHCP/ARP/DNS-SRV/PNP/ZRTP

  Digest Authentication Using MD5/MD5-sess

  AES encryption for configuration file

  Access for Administration

• Wireless

  Wideband Audio Codec: G.722

  Frequency: 2.400 GHz ~ 2.497 GHz

  Channels: No

  Bandwidth: 20MHz

  E.I.R.P: 802.11b /11Mbps : 18 dBm

  E.I.R.P: 802.11g /54Mbps : 17 dBm

  E.I.R.P: 802.11n /65Mbps : 16 dBm

  Modulation mode: 802.11b: DQPSK, DBPSK, CCK

  Modulation mode: 802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK

  Bluetooth: E.I.R.P 11dBm

  Antenna type: Monopole Antenna

• Phone Features

  Android 9.0 Operation System

  Support 2 SIP accounts

  Call Waiting

  Call Transfer

  Call Hold

  Mute

  Auto Redial, Call Return

  Speed Dial

  Direct IP call

  Dial Plan

  Hotline

  Multicast Paging

  Action URL/URI

  Local Audio/Video Call Recording

  Conference

  DND (Do Not Disturb)

  Volume Adjustable

  Ring Tones Selectable

  Multi-Languages Support

  Daylight Saving Time

  Default Apps: Browser, Calculator, Calendar, Camera, Clock, Contacts, Dial, Downloads, Explorer, Gallery, Message, Music, Phone Settings, Reboot Setting, Search, Settings, Sound Recorder, Surveillance, Video.

  3rd Party Android Applications

• Directory

  Local Phonebook up to 3000 Groups

  Phonebook with Contact Picture

  Call Logs: 600 Entries (200 Missed Calls; 200 Dialed Calls; 200 Received Calls.)

  Intelligent Search Method

  Favorites

  Blacklist

  LDAP

• Management

  Firmware Local Update: USB Flash Disk

  Firmware Remote Update: HTTP/HTTPS method on Web

  Auto Provisioning Using FTP/TFTP/HTTP/HTTPS, PNP/DHCP Option/Manual/Automatic methods

  System Log Export

  Restore to Factory Default

  Configuration Managements Via LCD

• Physical Features

  7 Inch Capacitive Touch Screen, Resolution 1024*600, 16:9 Wide Screen Aspect Ratio

  3 LED Lights (1 Power Light, 1 Network Light, and 1 Message Light)

  Flash Memory 8GB

  2GB DDR3 Memory

  Foot Stand

  2 Mega Pixels CMOS Camera

  RJ9 Handset

  3.5mm Headset jack

  2 RJ45 10/100/1000M Ethernet Jacks

  Energy Efficient Ethernet: IEEE802.3az

  Power over Ethernet: IEEE802.3af

  Bluetooth

  Wireless Access: 802.11b/g/n

  1 Type C

  1 HDMI Video Out Port

  Power Adapter: AC 100~240V Input, DC 12V/1A Output

  Dimensions: 250x210x98 (mm)

  Operating Temperature: 32º ~ 104ºF (0~ 40ºC)

  Storage Temperature: -4º~ 158ºF (-20 ~ 70ºC)

  Operating Humidity: 10% to 90% Noncondensing

  Storage Humidity: 10% to 90% Noncondensing

  Power consumption (approx.): 12W

  Weight (approx.): 1.72kg

  Giftbox Size: 498x254x148(mm)
