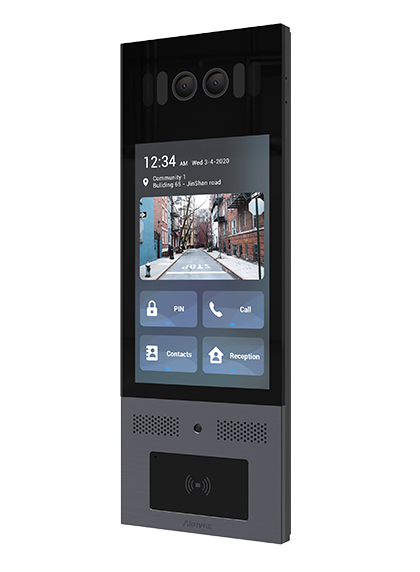

X915S- Akuvox High-end Smart Door Phone for Luxury Buildings

X915 Specification

• Perfect Choice for Daily Life

  Akuvox’s X915S is designed to provide a visually stunning and intuitive user-experience. It brings a number of innovative new features to provide a fully customizable solution for occupant and visitor access control in condominiums, apartment buildings, office buildings, gated communities and industrial buildings.

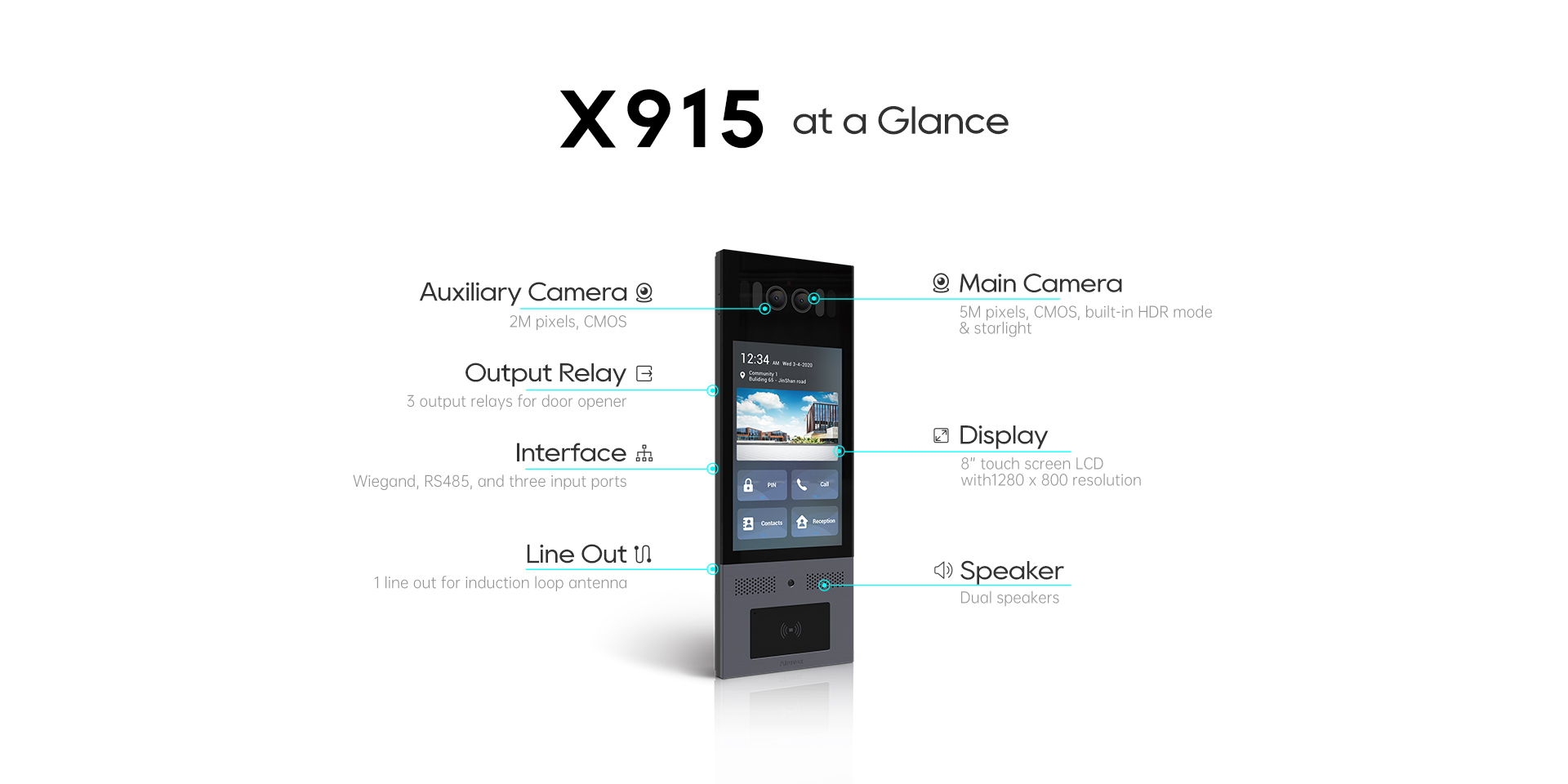

• At a Glance

  Main camera features a built-in HDR mode to tackle a variety of high-contrast scenes;

  Face verification accuracy >99% ; face comparison speed <0.6s per person; false recognition rate<0.1%;

  Intuitive interface with color touch display for superior resident and visitor usability;

  8” fully-color touch display provides ultra-wide viewing angles;

  Presents information and user navigation options unique to your business;

  Supports SIP to provide reliable two-way voice & one-way video communication;

  Complies with ONVIF standard for easy integration with any network surveillance system;

• Physical & Power

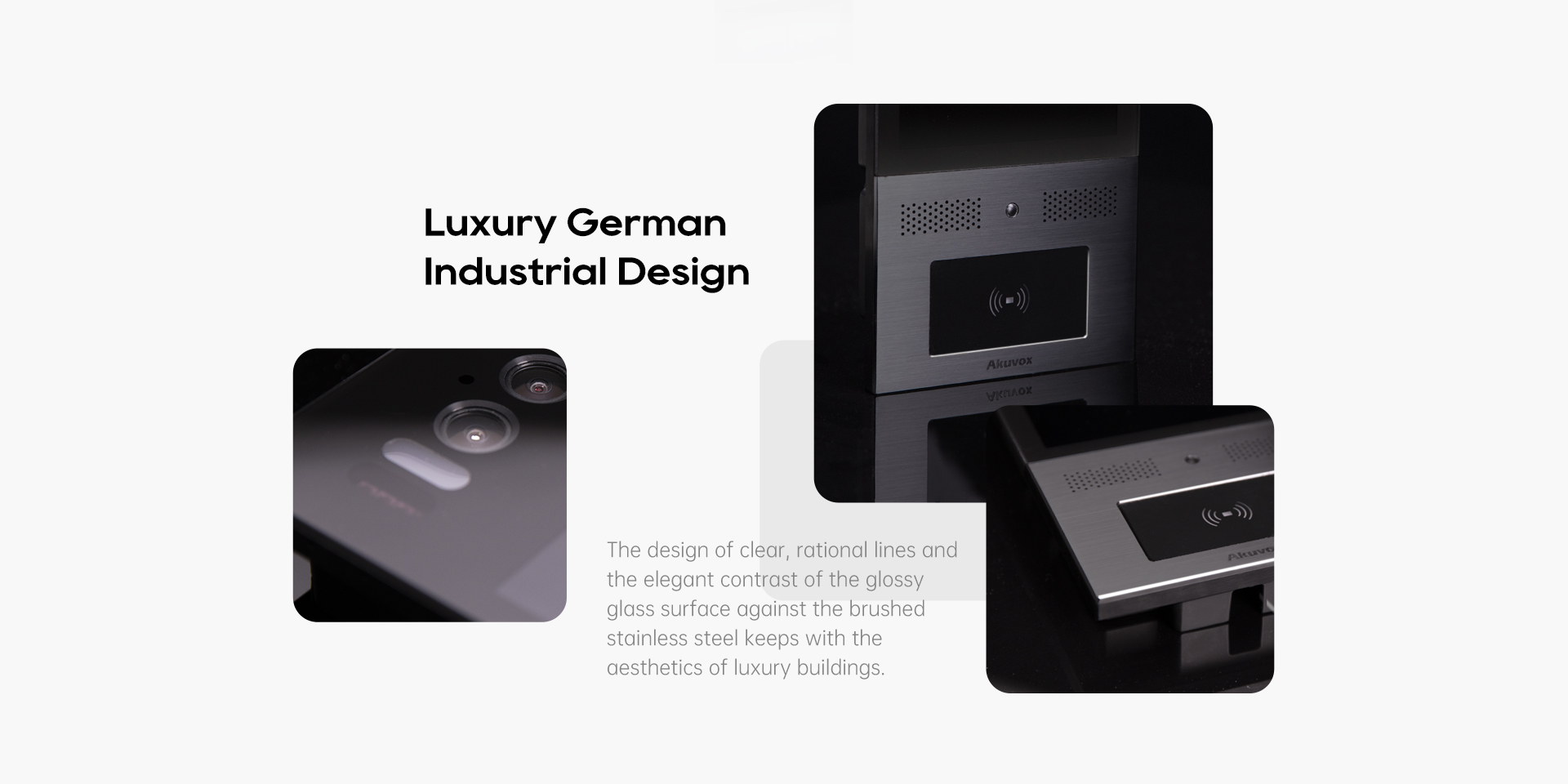

  Front Panel: 316 grade stainless steel

  RAM / ROM: 2GB / 16GB

  Display: 8 Inch IPS LCD

  Main Camera: 2M pixels, with starlight

  Light Sensor: Support

  Infrared Sensor: Support

  Wiegand Port: Support

  RS485 Port: Support

  Line Out: Support

  RF Card Reader: 13.56MHz & 125kHz

  Relays Out: 3

  Inputs: 3

  Microphone: 2, -42dB

  Speaker: 2, 8Ω / 2W

  Reset Button: 1

  Ethernet port: 1xRJ45, 10/100Mbps adaptive

  IEEE 802.3at PoE+

  12~24V DC connector (if not using PoE+)

  IP & IK Level：IP65 & IK10

  Installation: Flush-mounted & Wall-mounted

  Flush-mounted DIM: 350x130x53.9mm

  Wall-mounted DIM: 350x130x41.6mm

  Working Humidity: 10~90%

  Working Temperature: -30°C ~ +60°C

  Storage Temperature: -30°C ~ +70°C

• Audio

  SIP v1 (RFC2543), SIP v2 (RFC3261)

  Narrowband audio codec: G.711a, G.711μ, G.729

  Broadband audio codec: G.722

  DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

  Echo Cancellation

  Voice Activation Detection

  Comfort Noise Generator

• Video

  Sensor: 1/2.8”, CMOS for main camera

  Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p

  Video codec: H.264

  Video technology: HDR

  Video resolution: up to 1920x1080p

  Max. image transfer rate: 1080p – 30fps

  Viewing angle: 115°(H) / 63°(V)

  Compatible to 3rd-Party-Video components,

  e.g. NVRs

• Networking & Protocol

  Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

• Door Entry Feature

  Android OS for any 3rd party software or customization

  Relays controlled individually by DTMF tones

  Multi-way Unlock: Face, Card, PIN, BLE & QR code

  Camera permanently operational

  Auto-night mode with LED illumination

  White balance: auto

  Minimum illumination: 0.1LUX

• Deployment & Maintenance

  Auto-Provisioning

  Web management portal

  Web-based packet dump

  Configuration backup / restore

  Entry log export

  Access table export / import

  Firmware upgrade

  System logs (include door access logs)
