Product Description

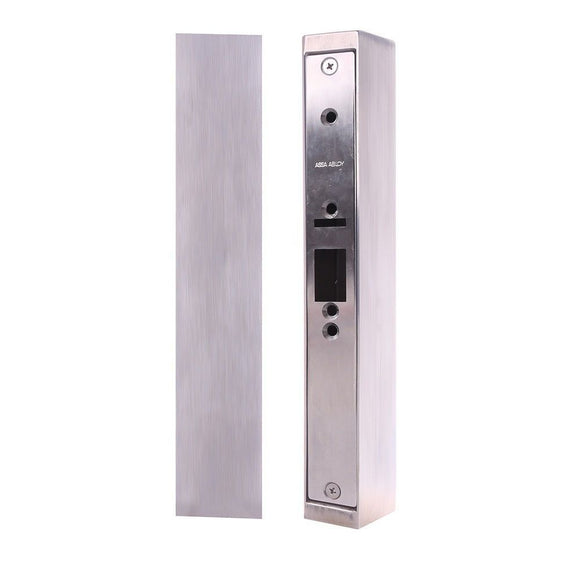

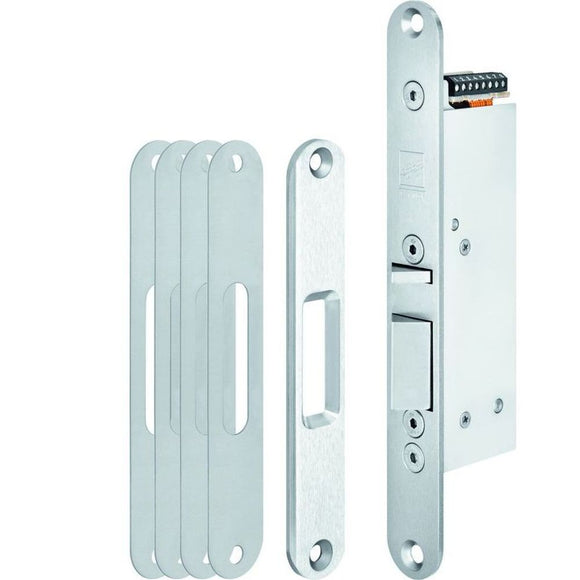

The 351 Solenoid is an electromechanical lock which operates on Fail Safe principle and can be used for double action swinging doors, single action doors.
With a pre-load of 510kg, this lock is also best suited for perimeter and high traffic applications.
Product Features
-Suitable as a supplementary locking system for installation in fire doors
-Vertical and horizontal universal installation position in the door frame or in the door leaf
-Holding force of 510 kg
-Reliable unlocking under preload
-Monitoring contact and armature contact integrated
-Sturdy design for demanding requirements
Technical data
-Handing Universal
-Operating Voltage 12VDC or 24VDC
-Monitoring contact (RR) Yes
-Diode (05) Yes
-Fail-unlocked Yes
-Rated operating voltage tolerance range 12 V ± 1 V
-Nominal resistance 12 V 37 Ω
-Current consumption DC (stabilized) 12V 320mA or 24VDC 160mA
-Dead bolt cutout No
-Faceplate Thickness 2 mm
-Anchor contact Yes
-Break-in resistance 510 kg
-Length 200 mm
-Width 25 mm
-Depth 42 mm
-Max. latch preload 510 kg
-Continuous function load cycles 200,000
-Color Stainless steel
The 351 Solenoid is an electromechanical lock which operates on Fail Safe principle and can be used for double action swinging doors, single action doors.
With a pre-load of 510kg, this lock is also best suited for perimeter and high traffic applications.
Product Features
-Suitable as a supplementary locking system for installation in fire doors
-Vertical and horizontal universal installation position in the door frame or in the door leaf
-Holding force of 510 kg
-Reliable unlocking under preload
-Monitoring contact and armature contact integrated
-Sturdy design for demanding requirements
Technical data
-Handing Universal
-Operating Voltage 12VDC or 24VDC
-Monitoring contact (RR) Yes
-Diode (05) Yes
-Fail-unlocked Yes
-Rated operating voltage tolerance range 12 V ± 1 V
-Nominal resistance 12 V 37 Ω
-Current consumption DC (stabilized) 12V 320mA or 24VDC 160mA
-Dead bolt cutout No
-Faceplate Thickness 2 mm
-Anchor contact Yes
-Break-in resistance 510 kg
-Length 200 mm
-Width 25 mm
-Depth 42 mm
-Max. latch preload 510 kg
-Continuous function load cycles 200,000
-Color Stainless steel
Specs
| Model No | 351U80-58135E91 or 351U80-58135F91 |
|---|---|
| Voltage | 12VDC or 24VDC |
| Power Option | 12v DC or 24VDC |
| Current Draw | 320mA or 160mA |
| Monitoring | MONITORED |
| Bolt Material | Steel |
| Door Thickness Range | 35-55mm |
| Bolt / Latch Projection | 10mm |
| Bolt Type / Function | Deadbolt / Springlatch |
| Fixing Type | Concealed |
| Handing | Reversible |
