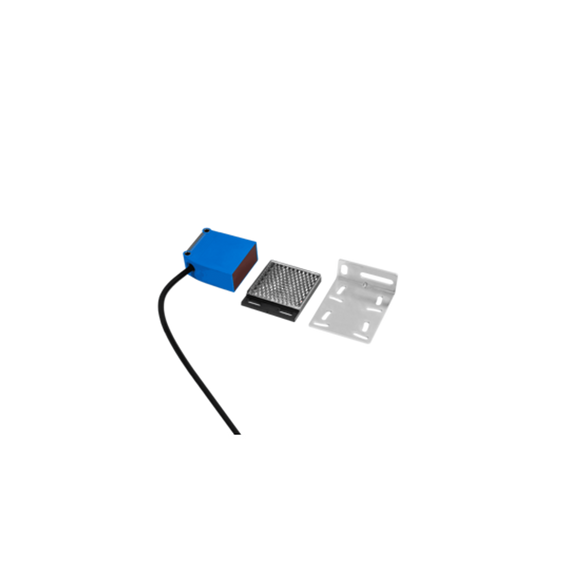

Photoelectric retro-reflective safety beam AC/DC 24-240v. Does both NO and NC
| Functional principle | Photoelectric retro-reflective sensor |
| Enclosure rating | IP67 |
| Functional principle detail | Dual lens |
| Dimensions (W x H x D) | 20 mm x 50 mm x 51.5 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. |
0.08 m ... 15 m 1) |
| Sensing range |
0.15 m ... 12 m 1) |
| Type of light | Visible red light |
| Light source | PinPoint LED 3) |
| Light spot size (distance) | Ø 58 mm (5 m) |
| Wave length | 625 nm |
| Housing material | Plastic, ABS/PMMA |
| Relay switching cycles min. | 100.000 cycles (3 A) |
| EMC compatibility | EN 60947-5-2 EN 61000-6-3 (2011-09) |
| Ambient operating temp | –30 °C ... +60 °C |
1) Reflector PL80A.
2) Reflector P250.
3) Average service life: 100,000 h at TU = +25 °C.
Warranty: 2 Year Return to Base Warranty
