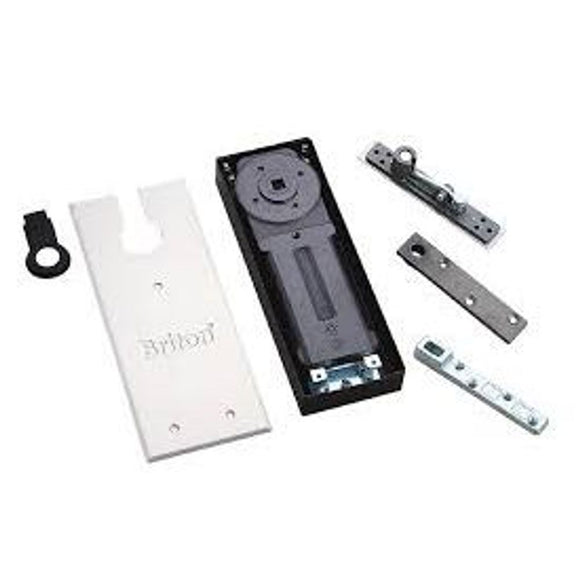

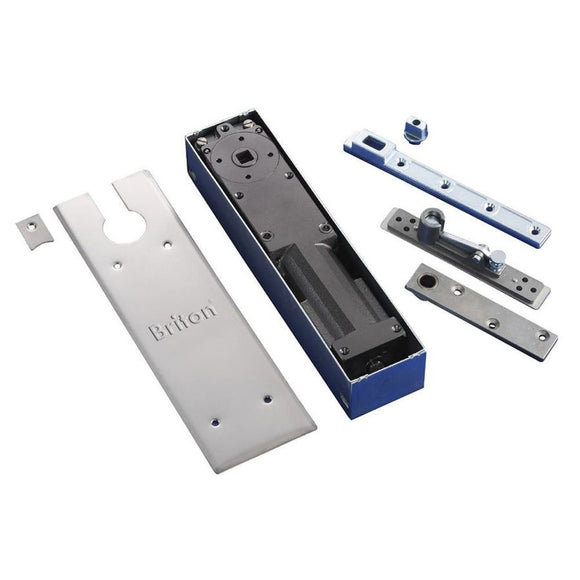

Designed for heavy traffic, single or double pivoting application doors, the Briton 7500 Series Floor Spring offers improved adjustability and versatility. The Briton 7500 Series Floor Spring consists of a high grade cast iron body, which is power adjustable sizes 3 to 6, allowing onsite adjustment to suit the prevailing conditions. The securely designed speed-adjustment valves protect the spring mechanism from abuse and adverse weather conditions, and the internal mechanism components utilize heat-treated high alloy steels and ball bearings for optimum efficiency. The 7500 Series Floor Spring is suitable for use with timber, metal and tempered glass doors up to 300kg.
- Tested to 500,000 cycles
- Independent latching and closing speed adjustments
- All adjustment screws concealed behind the cover plate to prevent tampering
- Door Adjustment - floor spring body can be adjusted within cement box for width, length and height alignment
- Universal stainless steel cover plate
- Optional range of interchangeable spindles to provide greater floor clearance
Specifications
|
Door Type |
Timber, Metal or Glass |
Door thickness |
Metal - minimum 37mm Timber - minimum 40mm. |
|
Door Size |
Maximum door weight 300kg; 750mm-1400mm maximum door leaf width |
Strength |
3 to 6 site adjustable |
|
Adjustment Controls |
Closing speed 130° - 15° Latching speed 15° - 0° |
