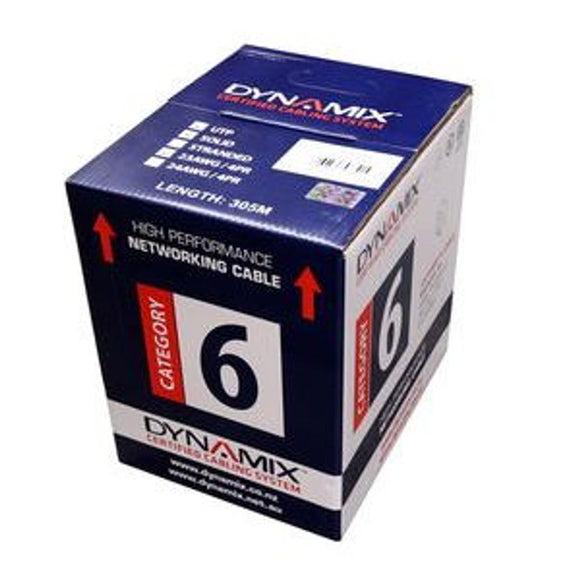

C-C6-SLD-Kit - 305m Cat6 UTP SOLID Cable Roll, 250MHz, 23AWGx4P, PVC

MODEL CODE

C-C6-SLDBLUE / C-C6-SLDGREEN / C-C6-SLDWHITE / C-C6-SLDBLACK / C-C6-SLDYELLOW / C-C6-SLDGREY / C-C6-SLDPURPLE / C-C6-SLDRED

Conductor

Material

SOLID-Bare Copper

Nom. O.D. (mm)

0.550

Up

+0.005

Down

-0.005

Insulation

Material

HDPE

Diameter

0.95  0.03mm

Colour

A. White-Blue, Blue

B. White-Orange, Orange

White-Green, Green

White-Brown, Brown

Rip-cord

Yes

Drain Wire

No

Sheath

Thickness

0.55  0.05mm

External O.D.

6.2  0.4mm

Surface

Clean, Frap, Satiation

Material

PVC (Complies RoHS and CM (UL) rated)

Colour

White

Sheath

Physical

Properties

Before Aging

Tensile Strength(Mpa) 13.5 / Elongation(%) 150

Aging Period (^oC x hrs)

100^oC x 24h x 7d

After Aging

Tensile Strength(Mpa) 12.5 / Elongation(%) 125

Cold Bend (-20  2^oCx4h)

No visible cracks

Electrical

Characteristics

(20°C)

1.0-250.0MHz, Characteristic impedance ( )          100  15

1.0-250.0MHz, Delay Shew (ns/100m)                     45

Resistance (      /100m) max                                 9.38

Conductor Resistance Unbalance (%)max              5.0
