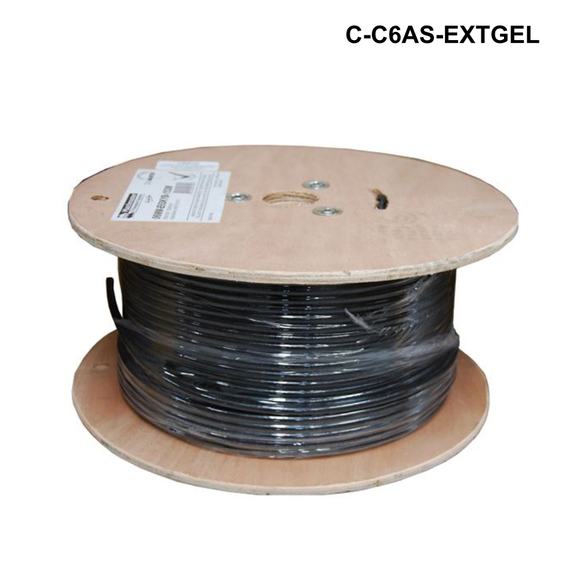

C-C6AS-EXTGEL - 305m U/FTP Cat6A Gel Filled, UV Stabilised PE jacket

Dynamix SKU: C-C6AS-EXTGEL

$639.68 NZD

Shipping calculated at checkout

Item is available to order. Please note the estimated delivery times below (If not displayed please contact us). Please call to pre-arrange any pick-ups.

Please Note: Estimated delivery details below

Features Specs PDFs

Includes:

  • Cat6A U/FTP Gel Filled Cable Roll
  • UV Stabilised Black PE Jacket for outdoor cable
  • 305m Wooden Roll
  • External Underground Cable
PRODUCT SPECIFICATIONS
Category U/FTP-ZST CAT6A-4P-PE
Test Standard ISO/IEC1180, TIA-568-C.2
Conductor   Material SOLID-Bare Copper
Nom. O.D. (mm): 0.560 Up: +0.005
Down: -0.005
Inner Screening Material Aluminum Foil Drain wire: Yes
Insulation  Material Skin-foam-skin PE
Diameter 1.330±0.05mm
Core Colour  A. White-Blue B. White-Orange
C. White-Green D. White-Brown
Sheath Thickness 0.55 ± 0.05mm
External O.D. 7.4 ± 0.4mm
Surface Clean
Material LDPE (complies RoHS)
Colour Black
Surface Printing Letter Height 3.0±0.3mm
Colour White
Print Error & Space ≤±0.5%, 1m
Packing Drum
Packing Length 305±1.5m
Rip-cord Yes
Out Jacket Physical Properties Before Aging Tensile Strength (Mpa): ≤10.0
Elongation (%): ≤350
Aging Period (°C x hrs) 100°C x 24h x 10d
After Aging Elongation (%): ≤300
Cold bend (-20±2°C×4h)  No visible cracks
Electrical Characteristics (20°C) Delay Shew (ns/100m) ≤45
Unbalanced-to-ground capacitance (pf/100m) max. 330
DC Resistance (Ω/100m) max 9.38
DC Conductor Resistance Unbalance (%) max 5.0
