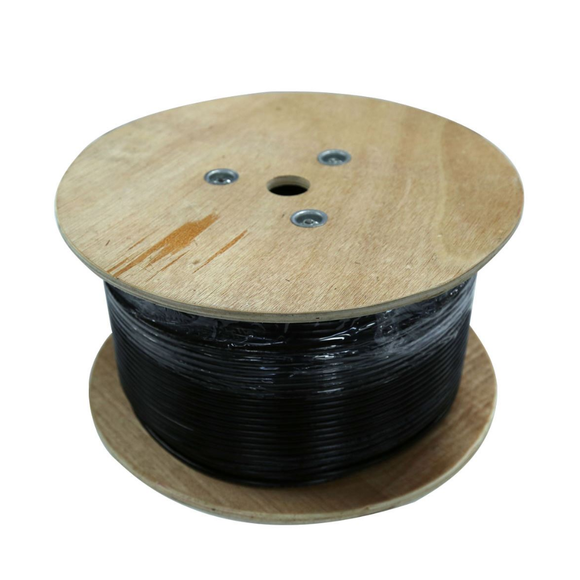

C-STPC6EXT-SLD - 305m S/FTP Cat6 23 AWG, 30%TC braid + UV Stabilised PE jacket

Dynamix SKU: C-STPC6EXT-SLD

$593.97 NZD

Shipping calculated at checkout

Item is available to order. Please note the estimated delivery times below (If not displayed please contact us). Please call to pre-arrange any pick-ups.

Please Note: Estimated delivery details below

Features Specs PDFs

Includes:

  • Cat6 S/FTP External Solid Cable Roll
  • UV Stabilised Black PE Jacket for outdoor cable
  • 305m Wooden Roll
  • 23 AWG, 30%TC braid
Category F/UTP CAT6-4P-PE
Test Standard ISO/IEC11801, TIA- 568-C.2, YD/T 1019
Conductor Material: SOLID-Bare Copper
Nom. O.D. (mm): 0.570; Up: +0.005; Down: -0.005
Insulation Material: HDPE
Diameter: 1.09±0.03mm
Colour A. Blue, White-Green
B. Orange, White-Orange
C. Green, White-Green
D. Brown, White-Brown
Sheath Thickness: 0.60±0.05mm
External O.D.: 7.4±0.4mm
Surface: Clean, Frap, Satiation
Material: PE
Surface Printing Letter Height: 3.0±0.3mm
Colour: Black
Print Error & Space: ≤±0.5%, 1m
Packing Wooden Tray and Carton
Packing Length 305±1.5m
Rip Cord Yes
Drain Wire Yes
Sheath Physical Properties Before Aging Tensile Strength (Mpa): ≥10.0
Elongation(%): ≥150
Aging Period (°C x hrs): 100°C x 24h x 10d
After Aging Elongation(%): ≥300
Cold bend (-20±2°C×4h): 8×Cable O.D. No visible cracks
Electrical Characteristics (20°C) 1.0-250.0MHz, Characteristic impedance (Ω): 100±15
1.0-250.0MHz, Delay Shew 20°C (ns/100m): ≤45
DC Resistance 20°C (Ω/100m): Max. 9.38
DC Conductor R
