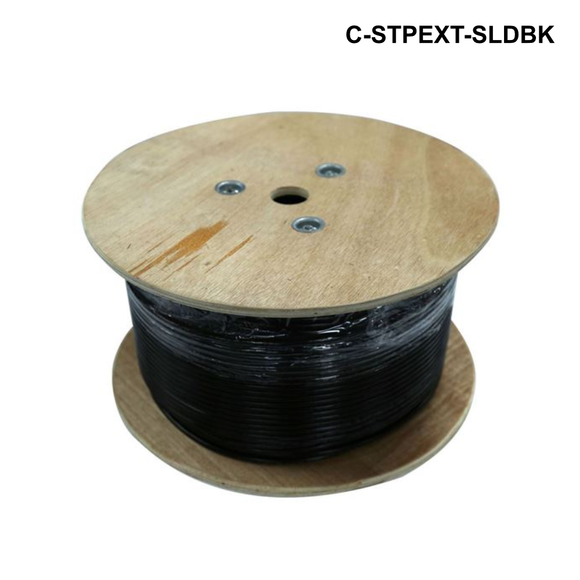

C-STPEXT-SLDBK - 305m Cat5E STP External UV Stabilised Solid Cable Roll

TECHNICAL SPECIFICATIONS

Category

F/UTP CAT5E4PPE

Test Standard

ISO/IEC11801, TIA568C, 2 YD/T1019

Conductor

Material

Solid Bare Copper

Nom. O.D.(mm)

0.500

up: +0.005

down: 0.005

Insulation

Material

HDPE

Diameter

1.00 ±0.03 mm

Screening Material

Aluminium Foil

Sheath

Thickness

0.55 ±0.05mm

External O.D.

6.3 ±0.4mm

Surface

Clean, Frap, Satiation

Material

LDPE (complies RoHS)

Colour

Black

Surface Printing

Letter height

3.0 ±0.3mm

Colour

White

Print error & Space

≤ ±0.5%, 1m

Core Colour

1. WhiteBlue/Blue

2. WhiteOrange/Orange

3. WhiteGreen/Green

4. WhiteBrown/Brown

Packing

Wooden Tray

Packing length

305 ±1.5m

Ripcord

Yes

Drain wire

TC 0.45mm

Sheath Physical Properties

Before Aging Tensile Strength (Mpa)

≥10.0

Elongation (%)

≥350

Ageing Period (°C×hrs)

100°C×24h×10d

After Aging Elongation(%)

≥300

Cold bend

(20±2°C ×4 h)

8×Cable O.D.

No visible cracks

Electrical Characteristics (20°C)

1.0100.0MHz

Impedance(Ω) 100±15

1.0100.0MHz

Delay Shew (ns/100m) ≤45

Unbalanced-to-ground capacitance

(pf/100m), max 330

DC Resistance (Ω/100m) max

9.5

DC Conductor Resistance Unbalance

(%) max 5.0
