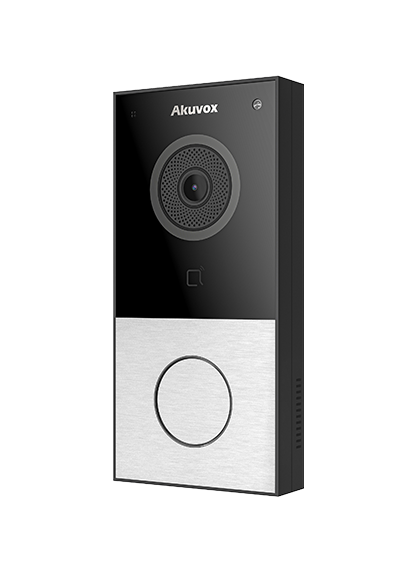

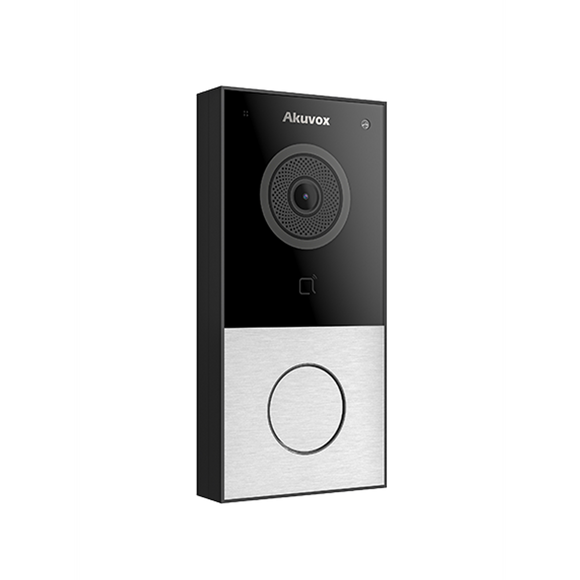

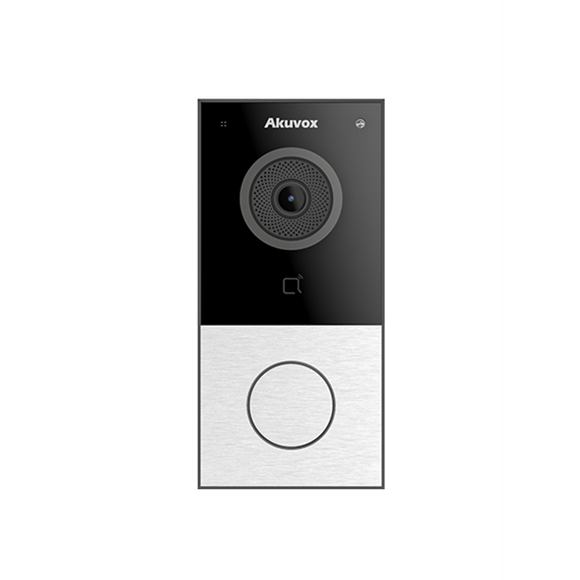

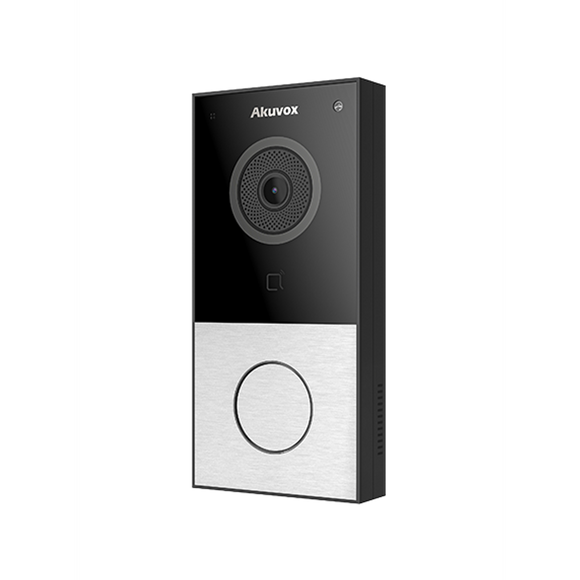

E12S-2 - Akuvox 2-wire SIP Intercom with one Button (Video & Card reader)

E12S-2 Specification

• Physical & Power

  Body Material: Plastic

  Camera: 2M pixels, automatic lighting

  Button: 1 call button

  Wiegand port: Support

  RF card reader: 13.56MHz，NFC

  Light sensor: 1

  Relays out: 1

  Inputs: 2

  TF card slot: 1

  Microphone: 1

  Speaker: 1

  BLE: Support

  Tamper Alarm: Support

  Power Interface: 1

  IP Rating: IP65

  Installation: Wall-mounted

  Size:146x70x23mm

  Working Humidity: 10~90%

  Working Temperature: -40°C~ +55C

  Storage Temperature: -40°C~ +70°℃

• Audio

  SIP v1 (RFC2543),SIP v2 (RFC3261)

  Narrowband audio codec: G.711a,G.711u

  Wideband audio codec: G.722

  DTMF: In-band, out-of-band DTMF(RFC2833), SIP Info

  Echo Cancellation

  Voice Activation Detection

  Comfort Noise Generator

• Video

  Sensor: 1/2.7",CMOS

  Pixels: CIF, VGA,4CIF,720p,1080p

  Video codec: H.264

  Video resolution: up to 1920x1080

  Max.image transfer rate: 1080p - 30fps

  Viewing angle: 123°(H)/ 69°(V)

  White LEDs for picture lighting during dark hours

  Compatible to 3'd party video components, e.g. NVRs

• Door Entry Feature

  Relays controlled individually by DTMF tones

  Camera permanently operational

  Auto-night mode with LED illumination

  White balance: auto

  Minimum illumination: 0.1LUX

• Networking & Protocol

  Protocols support: lPv4,HTTP,HTTPS,FTP,DNS, NTP,RTSP,RTP,TCP,UDP,ICMP,DHCP,

  ARP

• Deployment & Maintenance

  Auto-Provisioning

  Web management portal

  Configuration backup / restore

  Entry log export

  Access table export / import

  Firmware upgrade

  System logs (include door access logs)

• Application Scenario

  Apartment/flat intercom with door access control

  Remote site entry over Internet
