Akuvox SKU: E12S-2/C313W-2

$429.00 NZD $599.00 NZD Save $170.00 NZD

Shipping calculated at checkout

Item is available to order. Please note the estimated delivery times below (If not displayed please contact us). Please call to pre-arrange any pick-ups.

Please Note: Estimated delivery details below

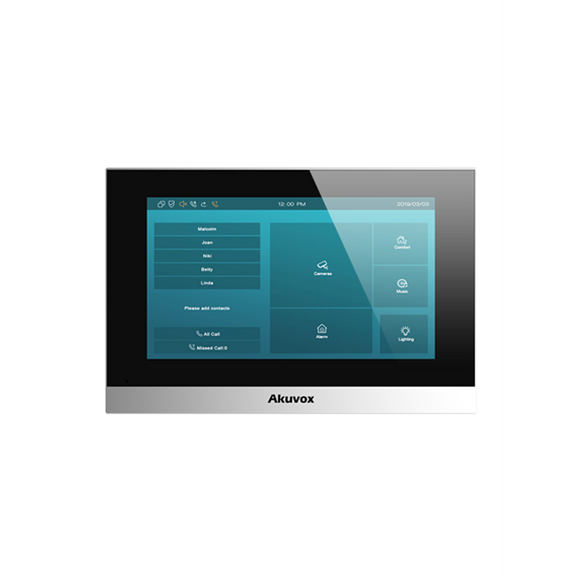

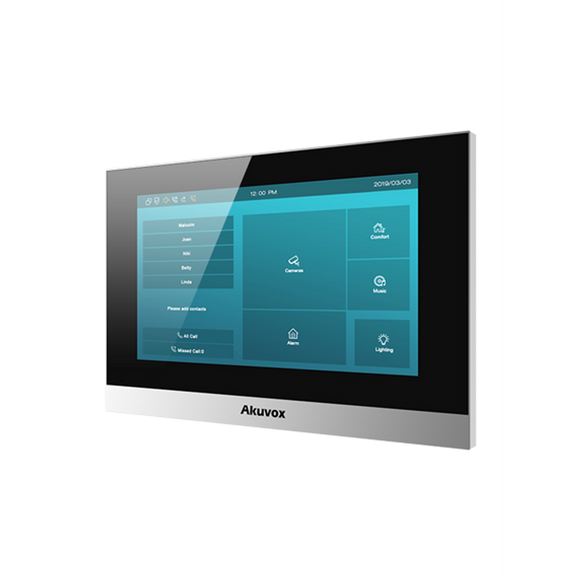

C313W-2



    • Physical & Power

      Front panel: Plastic
      RAM / ROM: 64MB / 128MB
      Display: 7 Inch TFT LCD
      Screen: 7 Inch capacitive touch screen
      Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
      RS485 port: Support
      Relay out: 1
      Bell in: 1
      I/O: 8
      Microphone: -58dB
      Speaker: 4Ω / 2W
      2-wire ports: 2 pair
      Ethernet ports: 1xRJ45, 10/100Mbps adaptive
      48V DC connector (if not using NS-2)
      Installation: Wall-mounted & Desktop
      Dimension: 200.2x132.2x27.2mm
      Working Humidity: 10~90%
      Working Temperature: -10°C ~ +45°C
      Storage Temperature: -20°C ~ +70°C

    • Touch Screen Display

      Display Mode: Normally white, Transmissive
      LCD Size: 7inch (Diagonal)
      Resolution: 800x480
      Contrast ratio: 500:1
      Luminance: 220 cd/m²
      Viewing Angle: 50° Left, 50° Right, 40° Upper, 50° Lower
      Touch Screen: Projected capacitive

    • Audio

      SIP v1 (RFC2543), SIP v2 (RFC3261)
      Narrowband audio codec: G.711a, G.711μ, G.729
      Broadband audio codec: G.722
      DTMF: Out-of-band DTMF (RFC2833), SIP Info
      Echo Cancellation

    • Video

      Streaming formats: H.264

    • Networking

      Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

    • Deployment & Maintenance

      Auto-Provisioning
      Web management portal
      Web-based packet dump
      Configuration backup / restore
      Firmware upgrade
      System logs (include door access logs)

    • Application Scenario

      Old villas retrofit
      Old apartment retrofit
