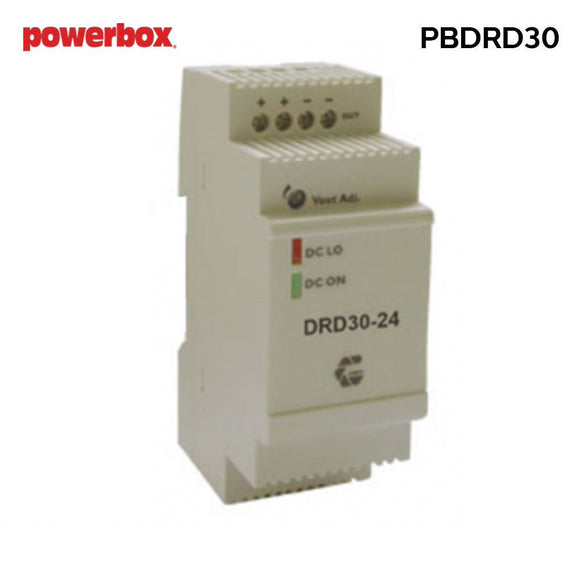

PBDRD30 - Powerbox 9-36V DC input to output (5V,9V,12V,15V or 24V) 30 Watts

Powerbox SKU: PBDRD30-05

$69.23 NZD

Shipping calculated at checkout

Item is available to order. Please note the estimated delivery times below (If not displayed please contact us). Please call to pre-arrange any pick-ups.
Output Voltage: PBDRD30-05 - 5V Output

Please Note: Estimated delivery details below

Features Specs

Features:

  • 30W DC/DC Converter
  • DIN Rail Mounting
  • 9-36V 4:1 Input Range
  • Short Circuit Protection
  • Internal input filter
  • Low Profile.
INPUT
Input voltages 12Vdc, 24Vdc
Input voltage range

9 to 36Vdc (PBDRD15)

10 to 36Vdc (PBDRD30)
OUTPUT
Output Power 15W - 30W
Output Voltage see selection table
Voltage Trim Range +/-10% Vnom
Output  voltage accuracy ±1%
Line & Load regulation ±1%
Switching frequency 100 to 200Khz
Startup time 50ms
Transient recovery time 1ms
Ripple &noise 100mV
Efficiency >81% Typical
STANDARDS & APPROVALS
UL/cUL UL508
cTUVus UL60950-1
TUV EN60950-1
CE

EN 61000-6-3, EN 55022 Class B

EN 61000-6-2, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4

EN61000-4-5, EN 61000-4-6, EN61000-4-8, EN50204, EN 61204-3
Vibration resistance Meet IEC 60068-2-6 (Mounting on rail:10-500 Hz, 2G, along X, Y, Z each Axis, 60 min for each Axis
Shock resistance Meet IEC 60068-2-27 (15G, 11ms, 3Axis, 6 Faces. 3 times for each face)
PROTECTION
Input fuse T3A/63VDC internal
Over voltage protection

Yes Auto Recovery
Rated over load protection 110 to 165 %
Internal surge voltage protection IEC 61000-4-5, Varistor
Output short circuit Current limited (Auto-recovery)
Isolation voltage Input-Output 1500Vdc
Isolation resistance Input-Output 100M ohm @500Vdc
Degree of protection IP20
MTBF >689,000hrs
INDICATORS
DC ON Indicator threshold at start up (Green LED)
DC LOW Indicator threshold after start up (Red LED)
Remote ON/OFF Yes
ENVIRONMENTAL
Operating temperature -40 to +71C
Cooling Free Air Convection
Derating Derate from +51 ˚C to +71˚C at 2.5%/C
MECHANICAL
Dimensions/Weight

15W: 91 x 18 x 56.5mm / 65g

30W: 91 x 35 x 56.5mm / 120g
Case material Plastic
