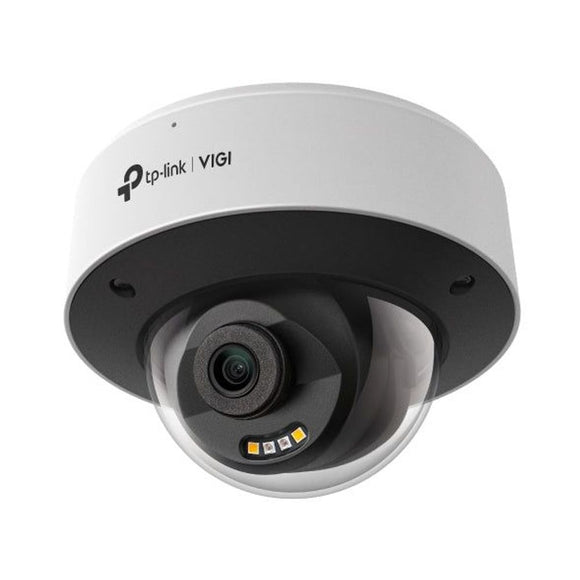

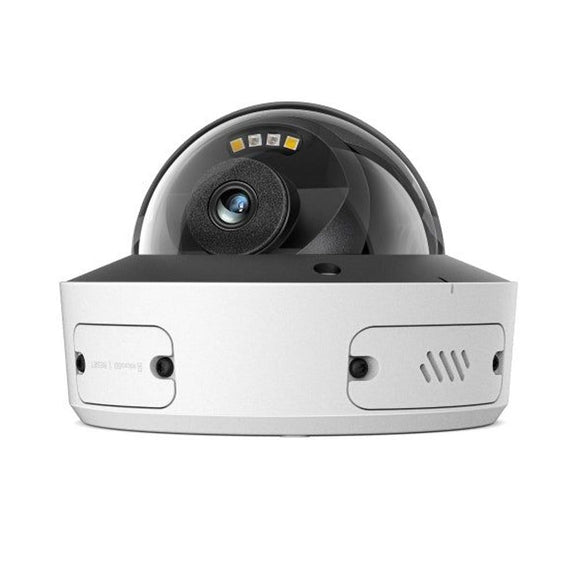

TL-INSIGHTS285(2.8MM) - TP LINK InSight S285 VIGI 8MP Full-Colour Dome Network Camera
TL-INSIGHTS285(2.8MM) - TP LINK InSight S285 VIGI 8MP Full-Colour Dome Network Camera
TL-INSIGHTS285(2.8MM) - TP LINK InSight S285 VIGI 8MP Full-Colour Dome Network Camera
TL-INSIGHTS285(2.8MM) - TP LINK InSight S285 VIGI 8MP Full-Colour Dome Network Camera
TL-INSIGHTS285(2.8MM) - TP LINK InSight S285 VIGI 8MP Full-Colour Dome Network Camera-5
TL-INSIGHTS285(2.8MM) - TP LINK InSight S285 VIGI 8MP Full-Colour Dome Network Camera-6

TL-INSIGHTS285(2.8MM) - TP LINK InSight S285 VIGI 8MP Full-Colour Dome Network Camera

TP-LINK SKU: TL-INSIGHTS285(2.8MM)

$169.85 NZD

Shipping calculated at checkout

Currently

Please Note: Estimated delivery details below

Description Specs

InSight S285

VIGI 8MP Full-Color Dome Network Camera

  • 4K (8MP) Ultra HD and 24h Full-Color
  • People & Vehicle Analytics†
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Active Defense and Two-Way Audio
  • IP67 Waterproof and IK10 Vandal-Proof
  • H.265+ Compression Technology



All The Colors, All The Time

8MP Full-Color Dome Network Camera

InSight S285

  •  Ultra HD

  • Full-Color

  • People & Vehicle Analytics

  • Human & Vehicle Classification

  • Smart Detection

  • Active Defense

  • Two-Way Audi

  • IK10 Vandal Proof

People & Vehicle Analytics†

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.


Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.



Alarm Triggered

Alarm Filtered

Smart Video Enhancement Technology

  • True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△

  • Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

  • 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

  • White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology

H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.*

†This function must be used with VIGI specified software.

△When People & Vehicle Analytics is enabled, only DWDR is supported.

*Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.

§SD card is not included in the package.





CAMERA
Image Sensor 1/2.7” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 2.8 mm / 4 mm
Aperture F1.6
FOV • 2.8 mm:
Horizontal FOV: 110°, Vertical FOV: 58.1°, Diagonal FOV: 133.5°

• 4 mm:
Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°
Lens Mount M12*P 0.5
DORI Distance • 2.8 mm
Detect: 85 m (278 ft)
Observe: 35 m (116 ft)
Recognize: 17 m (56 ft)
Identify: 8 m (28 ft)

• 4 mm
Detect: 107 m (350 ft)
Observe: 44 m (146 ft)
Recognize: 21 m (70 ft)
Identify: 11 m (35 ft)
Angle Adjustment (Manual)
Range Pan: 0° to 346°, Tilt: 0° to 75°, Rotation: 0° to 355°
ILLUMINATOR
IR LED • Quantity: 2
• Range: 30m
• Wavelength: 850nm
White LED • Quantity: 2
• Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 3840 x 2160
Main Stream • Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• Resolution:
3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If HDR is turned on, the frame rate can only support up to 20fps.
Sub-Stream • Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• Resolution:
848x480, 704x576, 640x480, 640x360, 352x288, 320x240

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If HDR is turned on, the frame rate can only support up to 20fps.
Bit Rate Control CBR, VBR
Video Compression • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate • Main Stream: 256 Kbps to 8 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/Smart IR
Wide Dynamic Range 120 dB

Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS,FTP/SFTP,RTP,IPv4,IPv6,ARP
ONVIF Yes
API Open Network Video Interface (Profile S/T/G)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, Web UI, VIGI VMS, Utility
Web Browser • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
Basic Event • Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts)
• Camera Tampering
• Exception (Illegal Login)
Alarm Linkage • Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
Deep Learning Function
People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.†
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB§
Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker Yes
Audio N/A
GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)

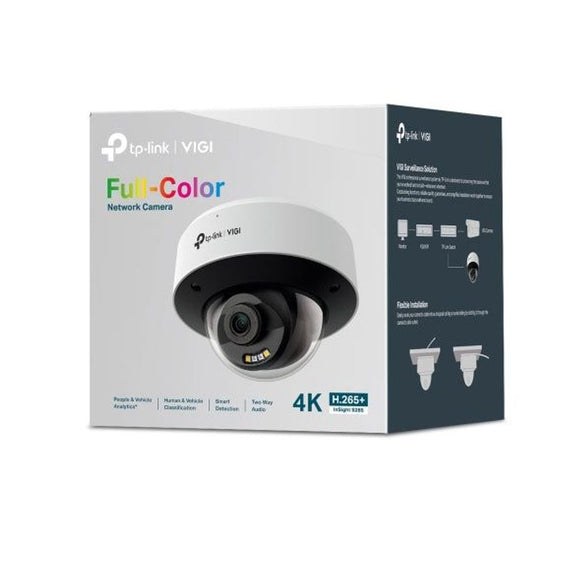

Package Content • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
Material Metal
Net Weight 0.62 Kg
Power Supply • 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 12.3 W
Protection IP67 Waterproof, IK10 Vandal Proof
Product Dimensions (L x W x H) 4.80 × 4.80 × 3.50 in (122 × 122 × 89 mm)
Certifications CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC
