TP-LINK SKU: TL-VIGISP18090

$2,846.00 NZD

Shipping calculated at checkout

Item is available to order. Please note the estimated delivery times below (If not displayed please contact us). Please call to pre-arrange any pick-ups.

Please Note: Estimated delivery details below

Description Specs

VIGI SP18090

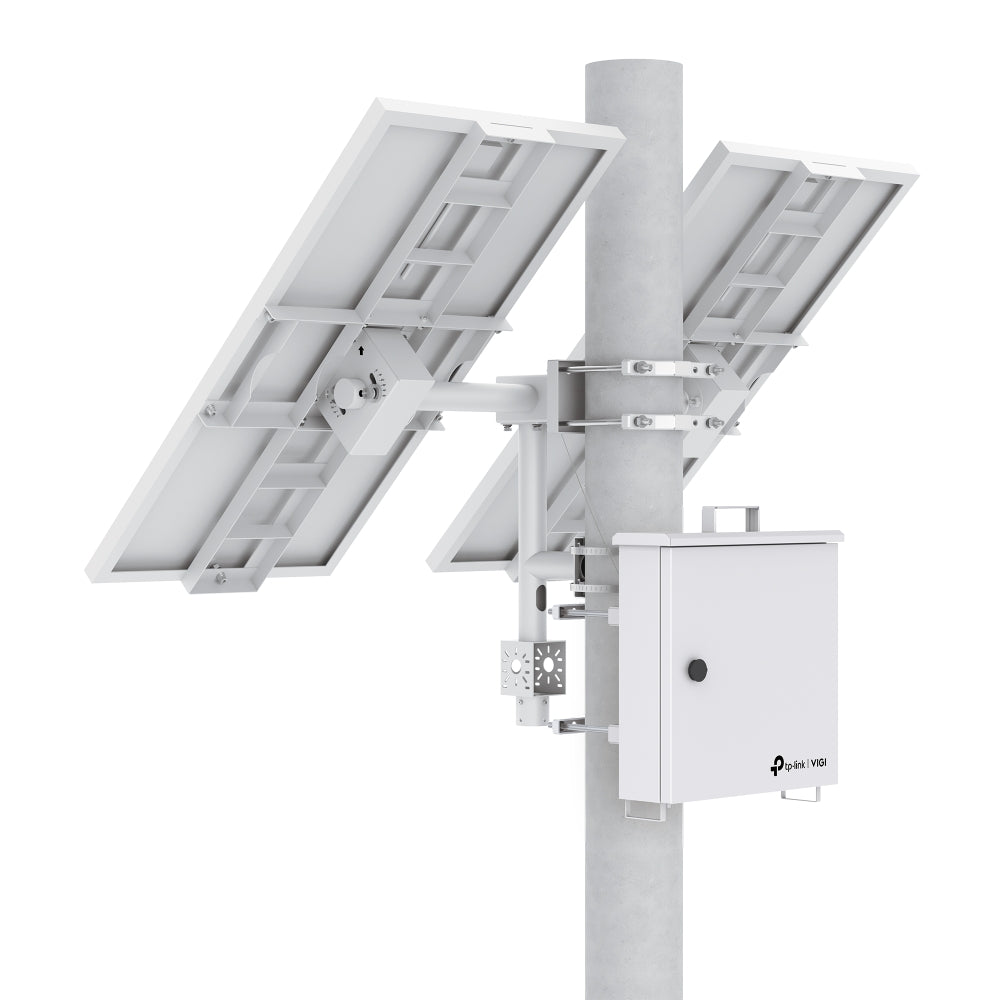

VIGI Intelligent Solar Power Supply System

  • 2× 90W Photovoltaic Panels and 93.6Ah/10.95V Lithium Battery
  • 3× DC Voltage Output Ports
  • Modular Design
  • 5°/15°/25°/35°/45°/55° Adjustable Angles
  • Independent Protection Circuit
  • Intelligent Auxiliary Heating Technology
  • Maximum Power Point Tracking (MPPT) Charging Controller
  • IP66 Weatherproof
  • Remote Management and Simple Installation





Solar Panel (Photovoltaic Panel)
Power 180 W (90 W per panel)
Voltage 18 V
Dimensions (L x W x H) 39.3×20.3×1.2 in (998×516×30 mm)
Battery
Type Lithium
Intelligent Auxiliary Heat Yes
Battery Capacity  93.6Ah (Max),31.2Ah (Per Lithium Battery)
Voltage 10.95 V
Max. Output Voltage 12.6 V
Life More than 500 cycles*
Dimension • 9.4×2.9×2.8 in (240×74×72 mm) (Per Lithium Battery)
Charging Condition • 0°C~45°C
• -30°C~45°C (With intelligent auxiliary heating)
Discharging Condition • -20°C~60°C
• -30°C~60°C (With intelligent auxiliary heating)
Angle Adjustment (Manual)
Range 5°/15°/25°/35°/45°/55°
HARDWARE
Interface • 1× Three-pin Female Connector For Connecting The Controller
• 1× Three-pin Male Connector For Connecting The Modular Battery
• 2× Four-pin Female Connectors For Connecting The Solar Panel
• 1× 10/100 Mbps RJ45
• 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
Indicator LED • Quantity: 6 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 3× BAT Indicator)
• Color: Blue
SOFTWARE FEATURES
Load Control Three-way Load
High and Low Temperature Protection Yes
Overdischarge Protection Yes
Power Consumption Statistics Yes
Displays Real-time Load Status Yes
Battery Level Display Yes
Time Zone Selection Yes
Region Selection Yes
Schedule Saving Yes
Firmware Remote Update Yes
Remote Reboot Yes
Local LAN Management Yes
Smart Charging Control -30°C~5°C
Account Management Yes
Remote Reset Yes
Remote Message Push Yes
OTHERS
Certification • CE, FCC, RoHS, IP66 Weatherproof
• IP67 Weatherproof (Solar Panel)
Environment • Operating Temperature: -30°C-60°C (With intelligent auxiliary heating)
• Operating Humidity: 10%~90%RH, Non-condensing
