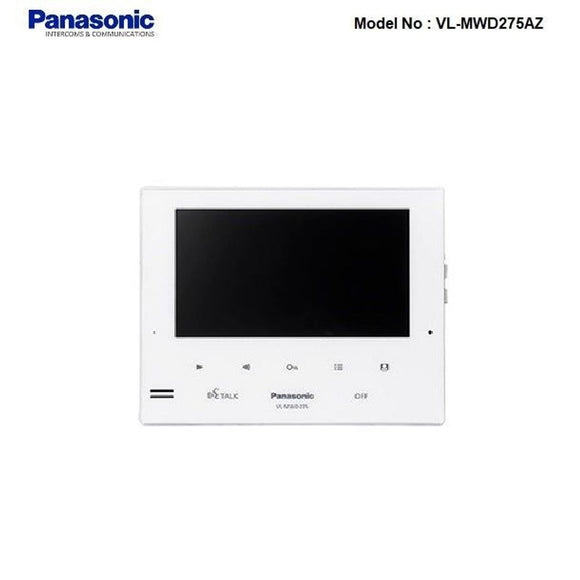

| Monitor |
Power source |
Power supply unit (VL-PS241) 24 V DC, 0.6 A |
| Power consumption |
Standby: 2.2 W , Operating: 14.0 W
Measurement conditions: Main Monitor (1 pc.) with Door Station VL-V524 (1 pc.) is connected to VL-PS241, and wireless monitor VL-WD619 (1 pc.) is linked to the main monitor. |
| Dimensions (H x W x D) |
Approx. 158 x 201 x 25 mm |
| Mass (weight) |
Main monitor: 605 g
Power supply unit: 215 g (VL-PS241) |
| Operating environment |
Ambient temperature: Approx. 0C to +40C Relative humidity (non-condensing): up to 90 % |
| Display size |
7-inch wide colour / WVGA (800 x 480 pixels)
(Touch sensor keys) |
| Display language |
English, Arabic |
| Talking method |
Hands-free |
| Installation method |
Flame retardant ABS resin and PMMA resin |
| External material |
Flame retardant ABS resin |
