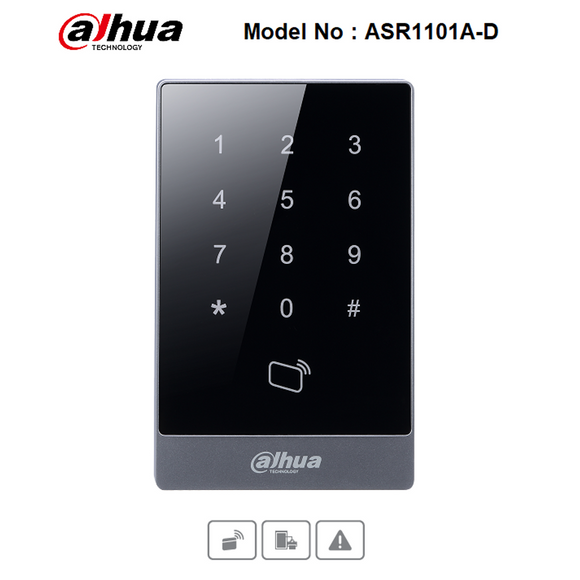

DHI-ASR1101A-D - RFID Pinpad Wiegand Reader IP55 ‐ Blue Backlit
DHI-ASR1101A-D - RFID Pinpad Wiegand Reader IP55 ‐ Blue Backlit

DHI-ASR1101A-D - RFID Pinpad Wiegand Reader IP55 ‐ Blue Backlit

Dahua SKU: DHI-ASR1101A-D

$39.00 NZD $149.00 NZD Save $110.00 NZD

Shipping calculated at checkout

Currently

Please Note: Estimated delivery details below

Features Specs

Includes

  • RFID Pinpad Reader ‐ Blue Backlit
  • Support RS485, Wiegand34 protocol(Wiegand 26 optional)
  • 125KHz(EM‐ID)
  • Red and Green LEDs
  • Touch keypad with blue backlight
  • Buzzer and LED indicator
  • Surface mounted installation
  • 9‐15V DC, IP55, .025Kg

Technical Specification

Mode

ASR1101A

ASR1101A-D

System

Main Processor

8 Bit

Read

Read Format

13.56MHz

125KHz

Read Range

1cm–4cm (max.)

Reading time

<0.1s

Function

Tamper Alarm

Yes

Interface

To Controller

RS485, Wiegand34 (Wiegand 26 optional)

General

Keypad

12Keys (0-9,*,#)

Sensitive touch keypad

Blue backlight

Beep Tone

Buzzer

Power Supply

9V–15V DC/100mA

Operating Temperature

-30°C to +60°C

Working Humidity

≤95%

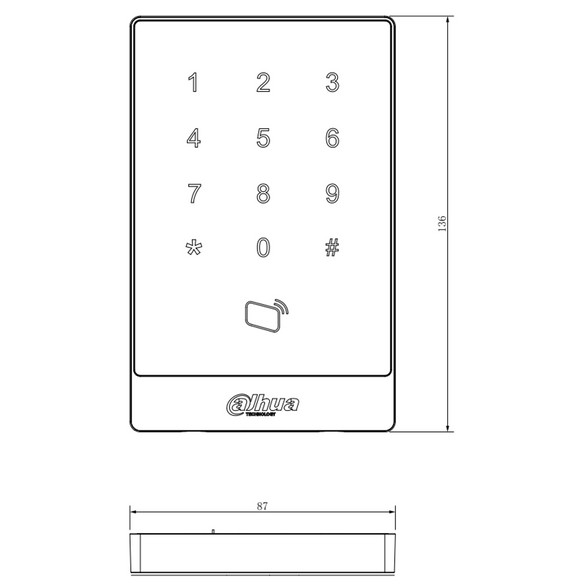

Dimension(W×D×H)

87mm×13mm×136mm

Weight

0.25kg

Working Environment

Indoor

Certificates

CE

Yes

FCC

Yes
