Emergency access: emergency key and electronic override

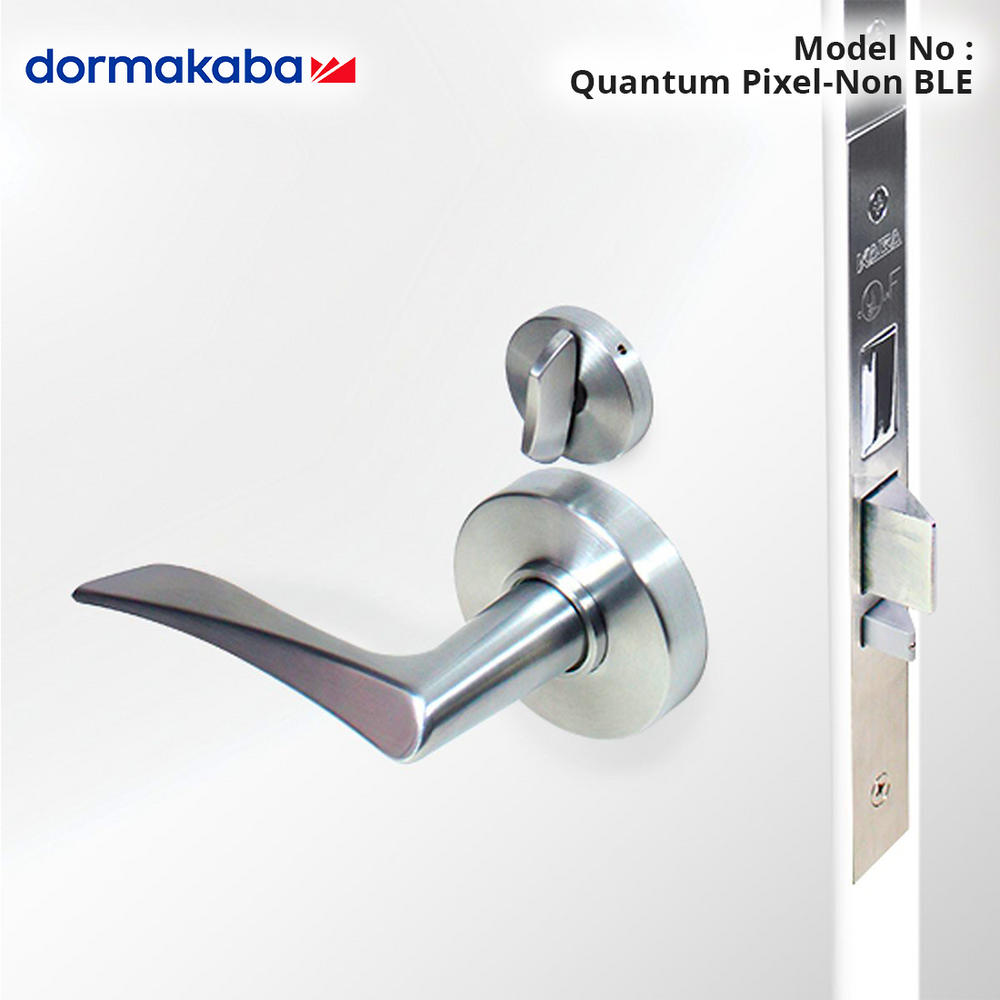

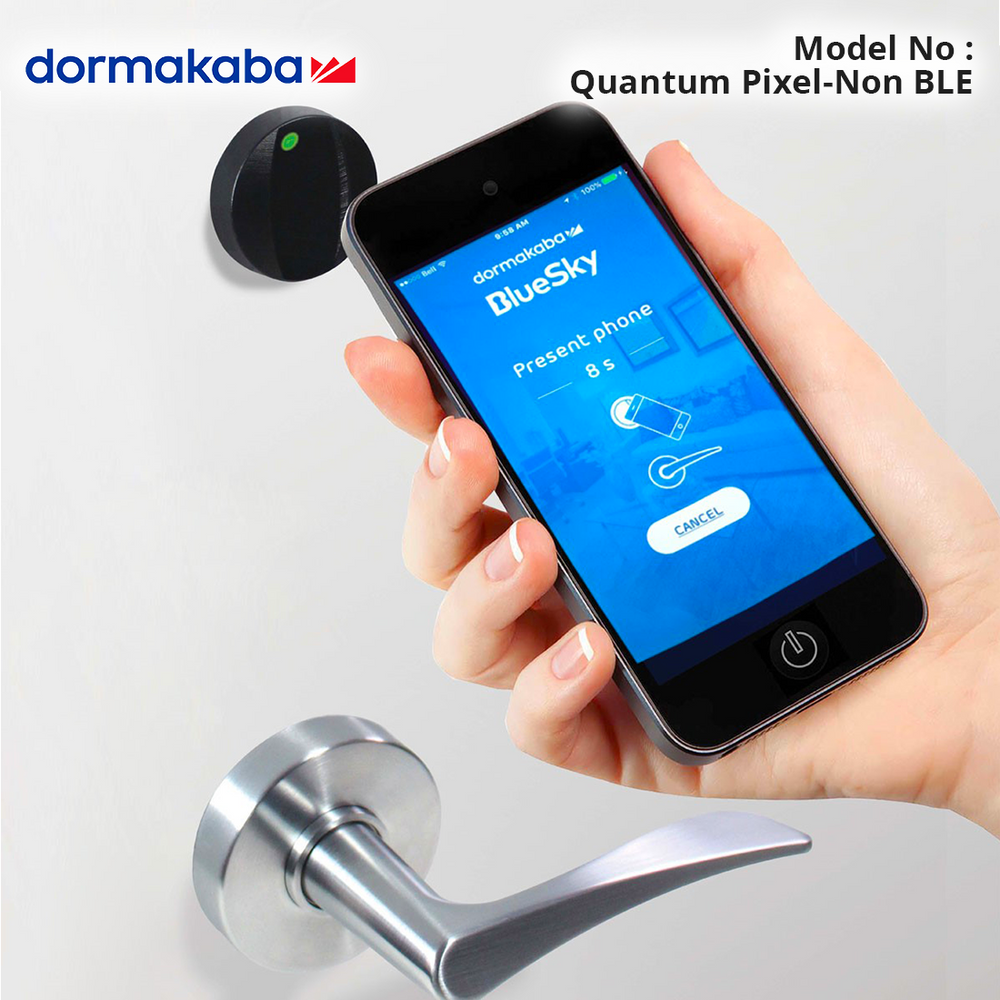

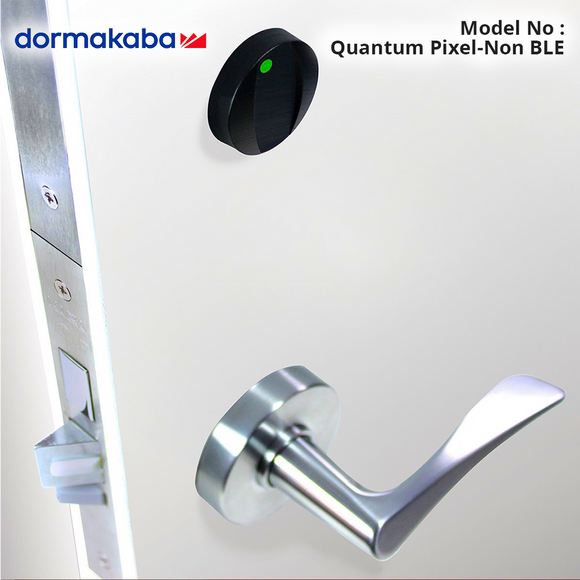

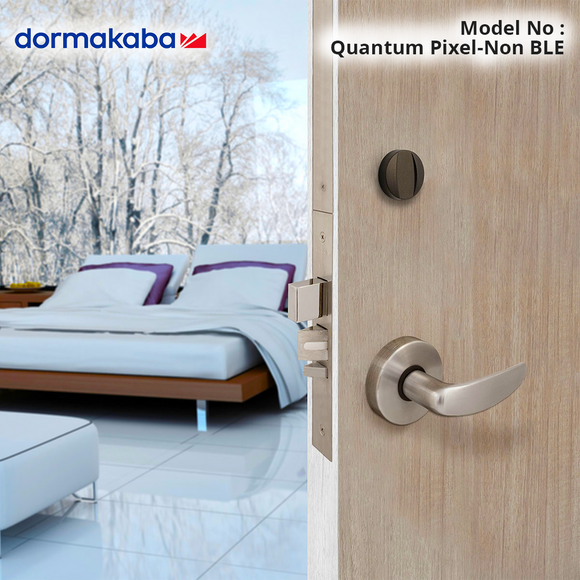

Model - Quantum-Pixel-Non-BLE
Security Features
Tamper Resistant
Tracking mortise for door ajar reporting
Emergency access: emergency key and electronic override
Technical Data
Reader cover: polycarbonate. Color: Black (white available soon)
ADA Standard levers: bright chrome, bright brass, satin chrome, satin brass
Door Thickness: 1.75" to 3". No mortise offset, no rabbeted doors
Locking options: ANSI lock case with 1" lock front mortise
RFID credentials: Mifare Classic and Mifare Plus available
BHMA and UL certified
dormakaba products are certified to a number of performance-oriented standards. In obtaining these certifications, dormakaba ensures product durability and performance, give our customers the peace of mind that comes with owning a quality solution that meets and exceeds industry standards for access control, life safety, and security.
Functionality
Low Maintenance
Batteries last up to 3 years
Low battery indicator alerts staff
Lock programming and audit records are not erased during battery replacement
Service tray for easy battery access
Components
The following dormakaba components are needed for a full functionality of the Quantum Pixel lock:
Core Package:
Saflok System 6000
dormakaba RFID encoder
dormakaba Maintenance Unit
Keycards and/or credentials
Optional:
Saflok Messenger Lens, for online capabilities
A dormakaba Mobile Access Solution Program
Applications
Ideal for new construction projects or when doors are being replaced
