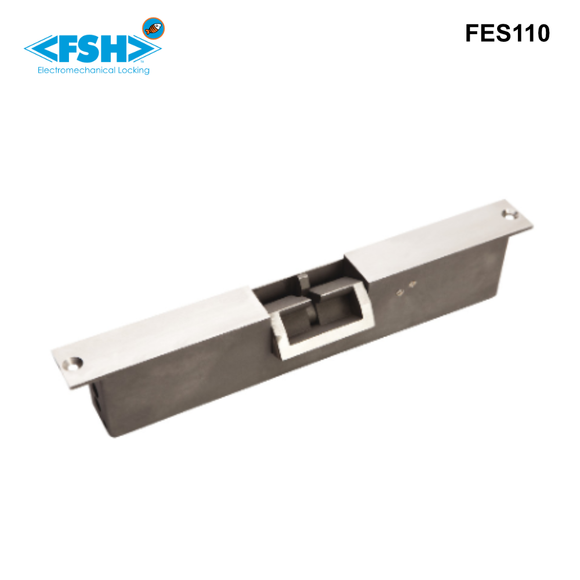

FES110 - FSH High Security Custodial Electric Deadlock Strike
FES110 - FSH High Security Custodial Electric Deadlock Strike

FES110 - FSH High Security Custodial Electric Deadlock Strike

FSH SKU: FES110-30-12PTL

Free

Shipping calculated at checkout

Item is available to order. Please note the estimated delivery times below (If not displayed please contact us). Please call to pre-arrange any pick-ups.
Please Select Model: FES110 Strike 12Volt Power To Lock

Please Note: Estimated delivery details below

Description PART No.   FUNCTION   HOLDING STRENGTH VOLTAGE/CURRENT APPROVALS MONITORING SIZE

Features

Includes:

  • Stainless steel faceplate and keeper
  • Holding strength of up to 500kg
  • 2 year warranty
  • 12 or 24VDC operation (has to be specified)
  • Monitoring Lock Status (LSS) and Door Status (DSS)
  • Fire rated to up to 2hours
  • PTO and PTR version available

PRODUCT DESCRIPTION

The FES110 series deadlock electric door strike release mechanism has been designed to provide door access control while maximising security to a door assembly fitted with square bolt deadlocks.

The FES110 monitors both door lock tongue and internal locking of the strike. The device is supplied in 12VDC or 24VDC, 2 year warranty.

Specs

Technical Specification





        FES110-30-12PTL/24PTL            FES110-40-12PTR/24PTR

Power To Lock

Power To Release





 Up to 500kg Up to 500kg





 12VDC/900mA 24VDC/450mA 12VDC/900mA 24VDC/450mA





 2 hour fire rated and S.C.E.C. Approved 2 hour fire rated and S.C.E.C. Approved





Lock bolt and locking solenoid

 Lock bolt and locking solenoid

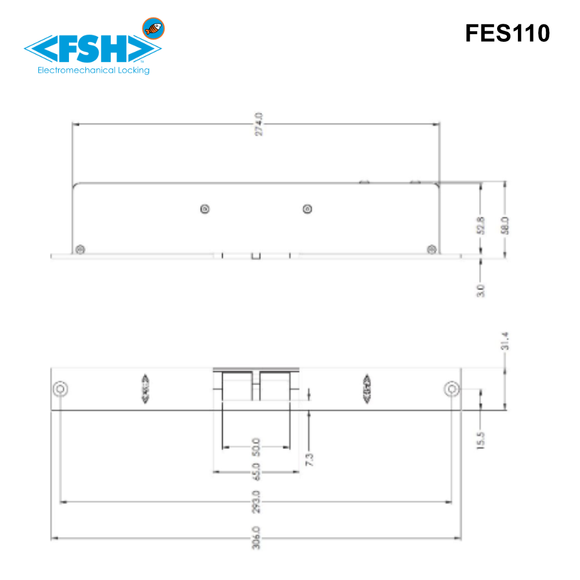

 L= 306 x W= 32 x H= 58mm L= 306 x W= 32 x H= 58mm
