OC200
Omada Hardware Controller

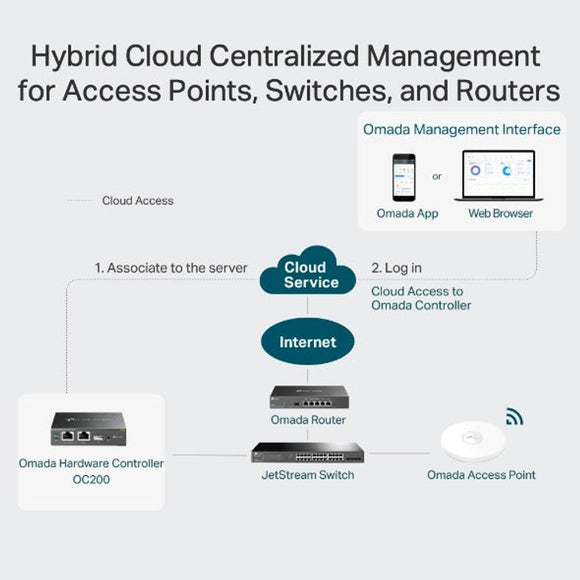

- Centralized Management: Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers.
- Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
- On-Premises Management: Locally monitor and manage devices with the ultimate security and stability.

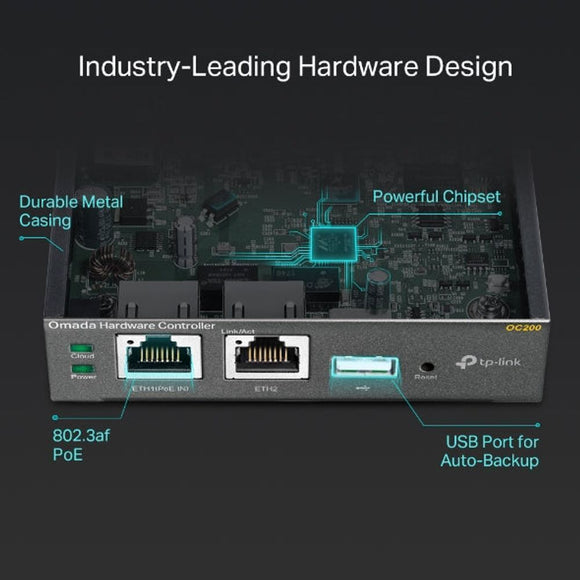

- Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports.
- Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation.
- Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.
- Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance.
- Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance.
| HARDWARE FEATURES | |
|---|---|

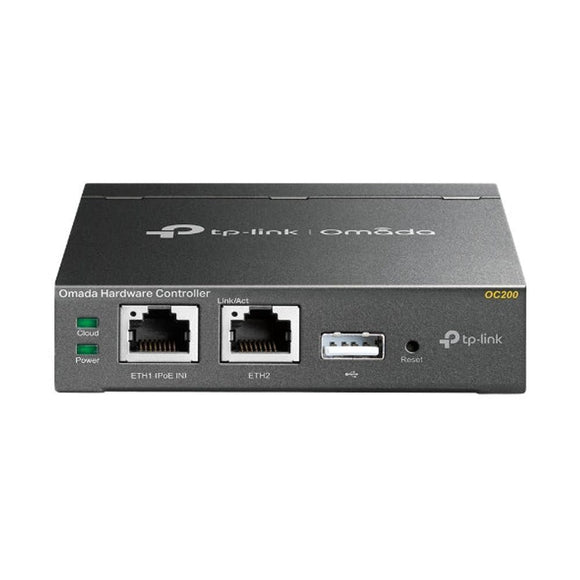

| Interface | 2 × 10/100Mbps Ethernet Port 1 × USB 2.0 Port for configuration backup 1 × Micro USB Port for power |
| Power Supply | 802.3af/at PoE or Micro USB（DC 5V/1A） |
| Dimensions | 3.9 × 3.9 × 1.0in. (100 × 98 × 25mm) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers • Up to 1,000 Clients Note: Please refer to www.tp-link.com/en/business-networking/all-omada/ to find all the device models supported by OC200 |
| Cloud Access | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • Omada Hardware Controller OC200 • Quick Installation Guide • Ethernet Cable |
| System Requirements | Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
