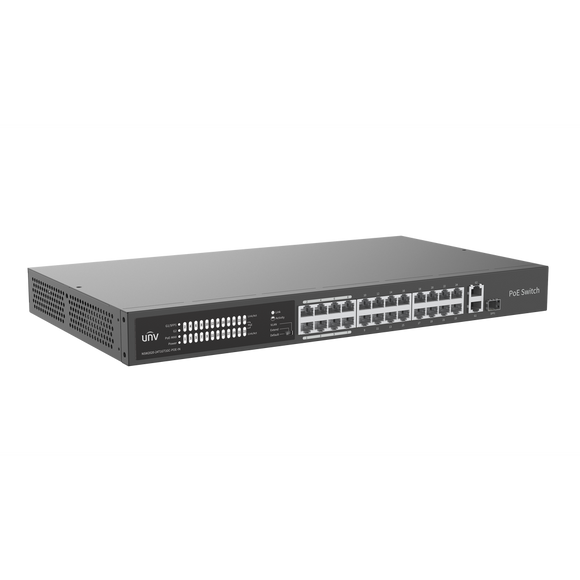

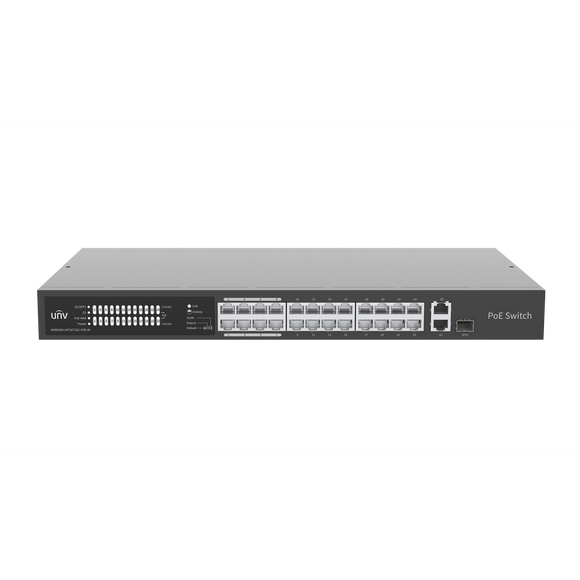

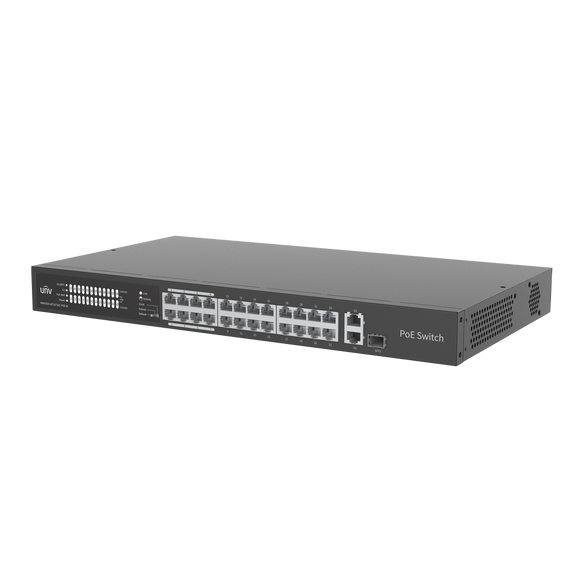

NSW2020-24T1GT1GC-POE-IN - UniView Unmanaged Ethernet Switch (PoE)
NSW2020-24T1GT1GC-POE-IN - UniView Unmanaged Ethernet Switch (PoE)
NSW2020-24T1GT1GC-POE-IN - UniView Unmanaged Ethernet Switch (PoE)

NSW2020-24T1GT1GC-POE-IN - UniView Unmanaged Ethernet Switch (PoE)

UniView SKU: NSW2020-24T1GT1GC-POE-IN

$748.31 NZD

Shipping calculated at checkout

Item is available to order. Please note the estimated delivery times below (If not displayed please contact us). Please call to pre-arrange any pick-ups.

Please Note: Estimated delivery details below

Description Specifications:

• Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable





Hardware Specification
Ports Type 24×100Mbps PoE ports (RJ45) + 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports
Switching capacity 8.8 Gbps
Packet Buffer 4 M bit
MAC 16K
Forwarding performance 6.55Mpps
Prior Ports 1 to 8
Standards IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Power Supply AC: 100 to 240V, 50/60Hz
PoE Standard IEEE 802.3 at, IEEE 802.3af
PoE Mode ModeB (4578)
Max.PoE Power Max capacity:370W
Max capacity for single port: 30W
Max.Power 390W
Cooling Fans 1
Dimensions (W×D×H) 440*250*44mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 10% to 90% (noncondensing)
Indicator POWER:
Steady on: AC input is normal
Off: No AC input
PoE:
Off: No PoE power supply
Steady on: PoE power supply is normal
PoE-MAX：
off ：The POE power supply power of the whole machine is less than 80% of the specification
Steady on : The POE power supply power of the whole machine is greater than 85% of the specification
LINK/ACT：
Off: No link
Steady on: Linked
Flashing: Transmitting data
Weight 2.93KG
Working Mode Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports
