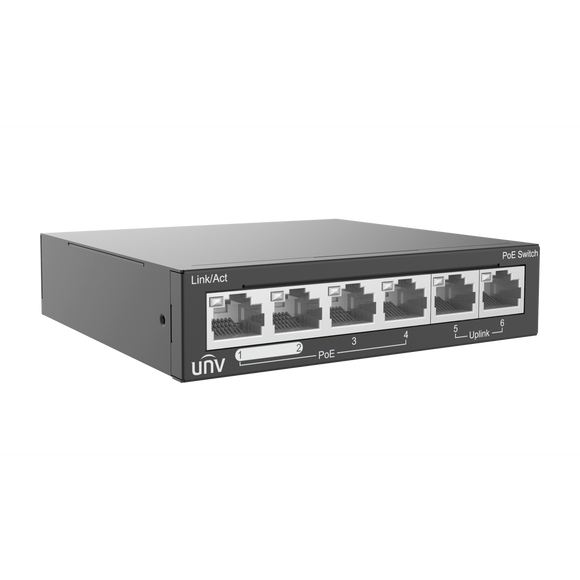

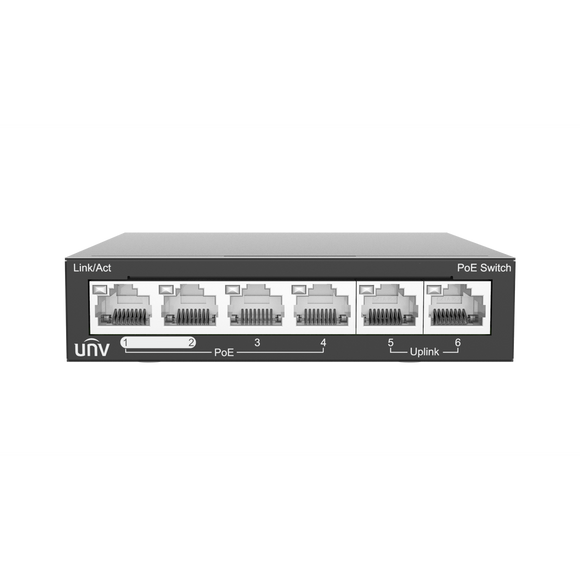

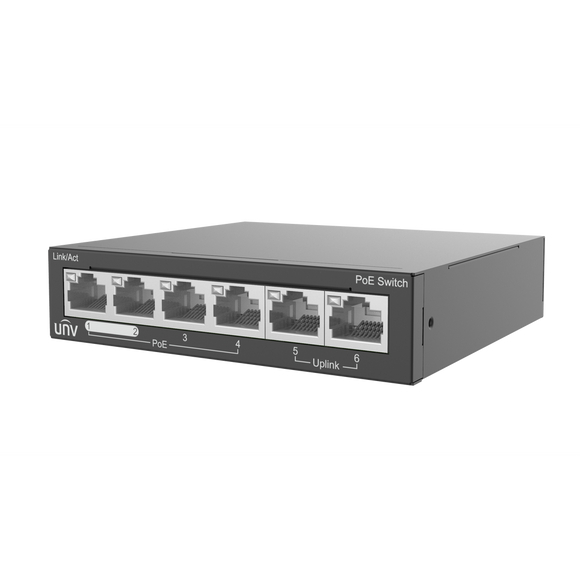

NSW2020-6T-POE-IN - UniView Unmanaged Ethernet Switch (PoE)
NSW2020-6T-POE-IN - UniView Unmanaged Ethernet Switch (PoE)
NSW2020-6T-POE-IN - UniView Unmanaged Ethernet Switch (PoE)

NSW2020-6T-POE-IN - UniView Unmanaged Ethernet Switch (PoE)

UniView SKU: NSW2020-6T-POE-IN

$57.00 NZD

Shipping calculated at checkout

Item is available to order. Please note the estimated delivery times below (If not displayed please contact us). Please call to pre-arrange any pick-ups.

Please Note: Estimated delivery details below

Description Specifications:

• Multiple working modes to address your business needs: Default(Normal mode), EXTEND(Surveillance mode)
• Support port traffic control
• Up to 250m transmission distance on Extend mode
• Support buffer optimization
• All metal housing, safe and reliable





Hardware Specification
Ports Type 6×100Mbps network ports (RJ45), including 4 PoE ports
Switching capacity 1.2 Gbps
Packet Buffer 448K bit
MAC 1K
Forwarding performance 0.90Mpps
Prior Ports 1 to 2
Standards IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Power Supply DC: 48/51V, powered by adapter(100 to 240V, 50/60Hz)
PoE Standard IEEE 802.3 at, IEEE 802.3af
PoE Mode ModeB (4578)
Max.PoE Power Max capacity:60W
Max capacity for single port: 30W
Max.Power 65W
Cooling Fans 0
Dimensions (W×D×H) 107*101*25mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 10% to 90% (noncondensing)
Indicator POWER:
Steady on: AC input is normal
Off: No AC input
No PoE Indicator
PoE-MAX：
off ：The POE power supply power of the whole machine is less than 80% of the specification
Steady on : The POE power supply power of the whole machine is greater than 85% of the specification
LINK/ACT：
Off: No link
Steady on: Linked
Flashing: Transmitting data
Weight 0.19KG
Working Mode Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters
