TP-LINK SKU: TL-INSIGHTS345-4G(4MM)

$285.00 NZD

Shipping calculated at checkout

Currently out of stock - please contact us - ph: 09 415 1500 or sales@esssec.co.nz

Please Note: Estimated delivery details below

InSight S345-4G

 New

VIGI 4MP Outdoor Full Color 4G Bullet Network Camera

  • 4MP super high definition and 24h color recording
  • 4G mobile connection* 1

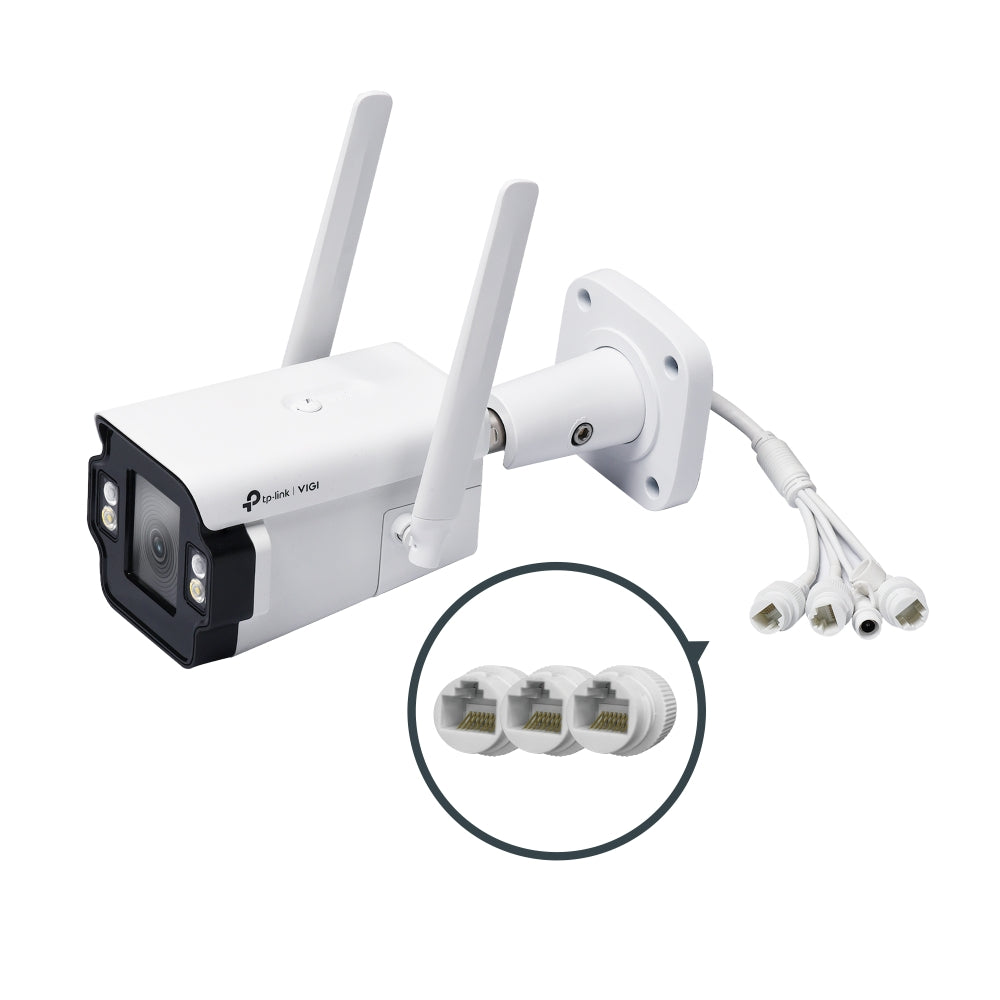

  • 3 LAN ports for downstream devices
  • Person and vehicle detection
  • Intelligent detection
  • Intelligent video optimization technology
  • Active defense and two-way audio
  • H.265+ compression technology
  • IP66 weather protection



VIGI's LightPro night vision technology intelligently switches between IR night vision and color night vision when people or vehicles are detected. This allows important details to be captured more clearly with the white light on, while the IR light reduces light pollution and energy consumption—ideal for a wide range of deployment scenarios.

  • IR Light On

    If no people or vehicles are detected, only IR night vision is displayed.

    IR light switched on
  • White Light On

    When a vehicle or person is detected, color night vision is activated.

    White light switched on
    Please leave the area
  • IR Light On

    When people or vehicles leave the area, the camera switches back to IR night vision.

    IR light switched on
  • More Details

    More details

  • Less Light Pollution

    Less light pollution

  • More Deterrence

    More deterrence

  • More Concealment

    More inconspicuousness

Intelligent video optimization technology

  • True WDR: By analyzing and combining different exposures, True WDR ensures correctly exposed bright and dark areas—for a balanced and natural-looking image even in strong light contrasts.

  • Smart IR: Smart IR dynamically adjusts infrared illumination to avoid overexposure, improve visibility at different distances, and ensure clear images.

  • 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across multiple frames to selectively reduce image noise while preserving important details.

  • White balance: White balance ensures that white in an image appears neutral – regardless of the lighting conditions.

Efficient H.265+ compression technology

H.265+ reduces the bandwidth and storage required for video while maintaining high image quality. Compared to H.264 and H.265, storage space is saved by 57.5% and 15%, respectively.*

* 1 MicroSD card and Nano SIM card are not included.

**The conditions for the maximum power consumption test are: 4G streaming preview of the IPC, network coverage for three IPCs, IR lights on, and light-sound alarm.

**Typical power consumption test conditions are: IPC cable preview and 4G streaming preview without white light (day mode), with IR light (night mode with IR LED), and with white light (night mode with white light LED). Results are for reference only and may vary depending on the test environment.









CAMERA
Image sensor 1/2.7" progressive scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow shutter Yes
Minimum light intensity 0.005 lux; 0 Lux with IR/White Light
Day/night mechanism IR Cut Filter
Day/Night Switch Unified/Scheduled/Auto
LENS
Type Fixed Focal Lens
Focal Length 4 mm
Aperture F1.6
FOV Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°
Lens Mount M12
DORI Distance Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range • Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotate: 0° to 360°
ILLUMINATOR
IR LED • Quantity: 2
• Range: 50m
• Wavelength: 850nm
White LED • Quantity: 2
• Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2688 x 1520
Main Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
2688x1520,2560x1440,2304x1296,2048x1280,1920x1080,1280x720
Substream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
848x480,704x576, 640x480, 640x360,352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression • Main stream: H.265+/H.265/H.264+/H.264
• Sub stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate • Main Stream: 256 Kbps to 6 Mbps
• Sub Stream: 64 Kbps to 512 Kbps
Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range 120 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 masks
ROI 1 region
OSD Setting Yes
AUDIO
Audio communication Two-way audio
Audio input Yes (Built-in Microphone)
Audio output Yes (Built-in Speaker)
Audio compression Yes
Audio Sampling Rate 8KHz
Environmental Noise Filtering Yes
Audio Bit Rate 64 Kbps (G.711 alaw)
NETWORK
protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF Yes
API Open Network Video Interface (Profile S/G/T)
Simultaneous Live View 3 main streams & 3 sub streams
Client VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web browser • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
4G
standard LTE-TDD/LTE-FDD/WCDMA
SIM Type Nano SIM* 1
Category 4
Frequency • LTE FDD: B 1/3/5/7/8/20/28
• LTE TDD: B 38/40/41
• WCDMA: B 1/5/8
Uplink and Download Data Rate Uplink: 50 Mbps, Downlink: 150 Mbps
Antenna • Quantity: 2

• Type:
690~960&1710~2690MHz Dipole Omni-Directional Antenna

• Gain:
Ant1:0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz
Ant2:0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
ALARM AND EVENT PROCESSING
Smart Event • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
Basic Event • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception (Illegal Login)
Alarm Linkage • Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
• Upload to FTP server
• Send to Alarm Server
• Email Alarm

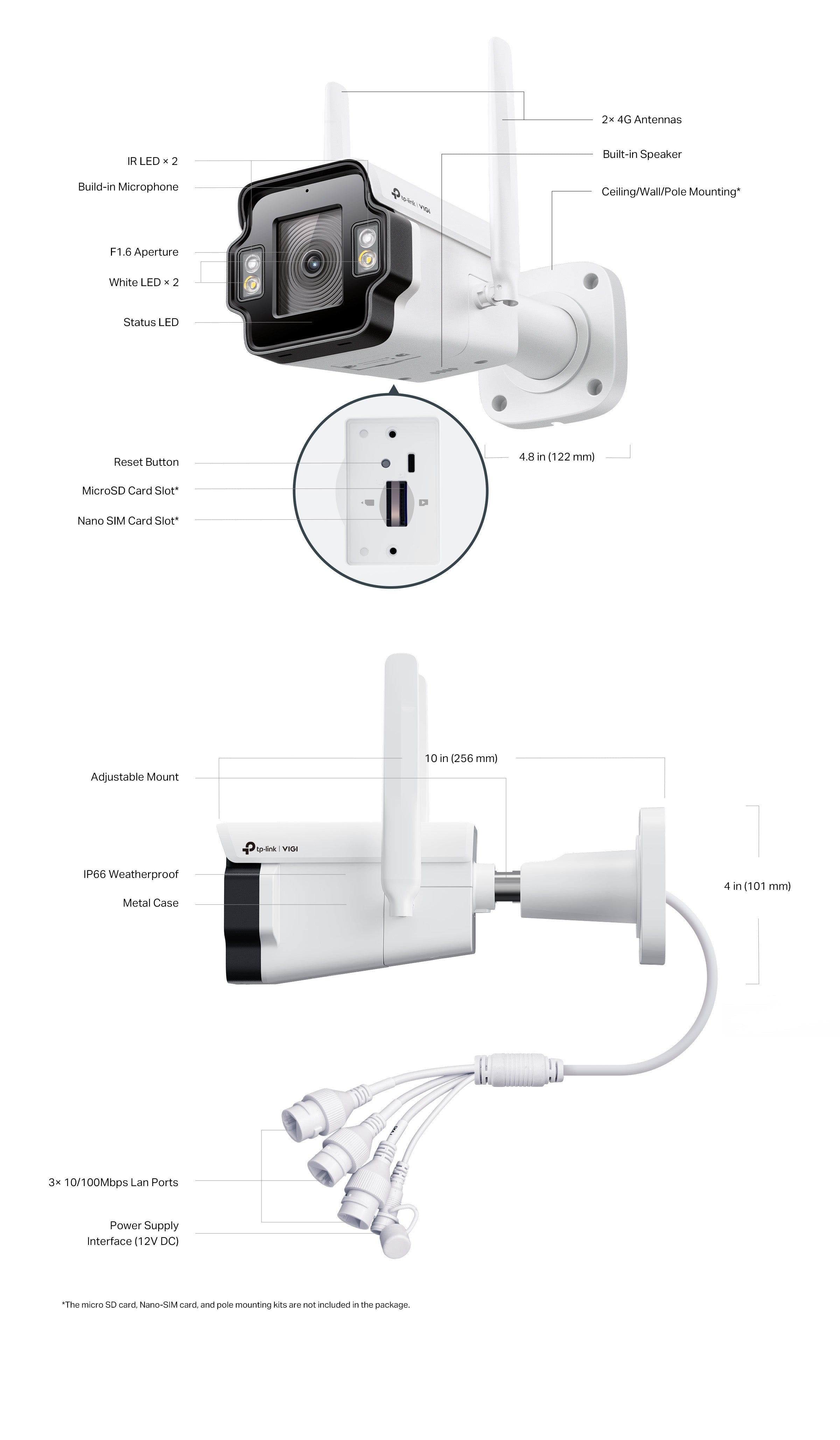

INTERFACES
Ethernet interface 3 RJ45 10/100M LAN ports
alarm N/A
Reset button Yes
power DC Power Port
On-board storage Built-In Memory Card Slot, Support MicroSD Card, Up to 512GB* 1

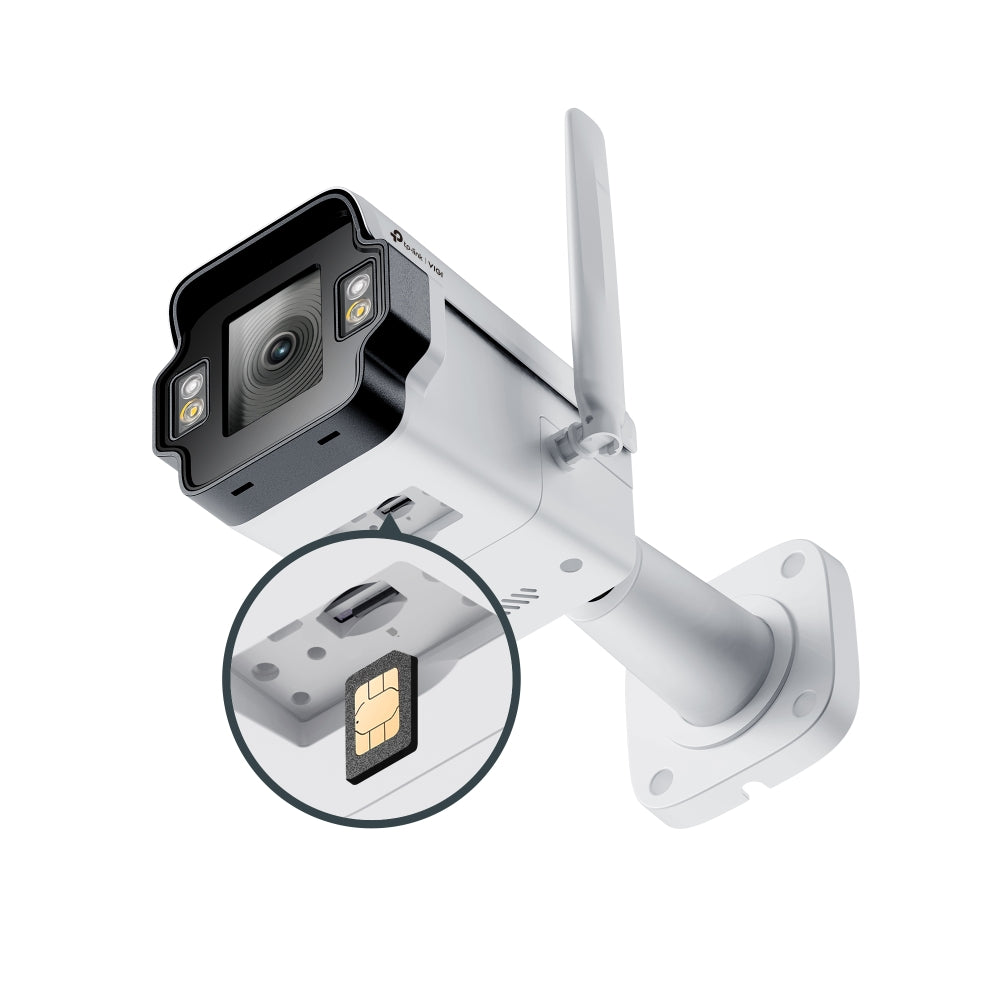

Built-in Nano-SIM card slot Yes
Built-in microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in speaker Yes
Audio N/A
GENERALLY
Operating Temperature -30℃ to 60°C
Storage Temperature -40℃ to 60°C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Packaging contents • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Power Adapter
material Metal
Net Weight 1.09 kg
Power Supply • 12V DC/1A, 5.5mm coaxial power plug
Antenna • Quantity: 2

• Type:
690~960&1710~2690MHz Dipole Omni-Directional Antenna

• Gain:
Ant1:0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz
Ant2:0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
Protection IP66 Weatherproof
Product Dimensions (L x W x H) 10 × 4.8 × 4.0 in (256 × 122 × 101 mm) (excluding antennas)
Certifications WPS, WHQL, Energy Star, RoHS, CE, NCC,NTRA,KC,RCM,ONVIF, IP66
