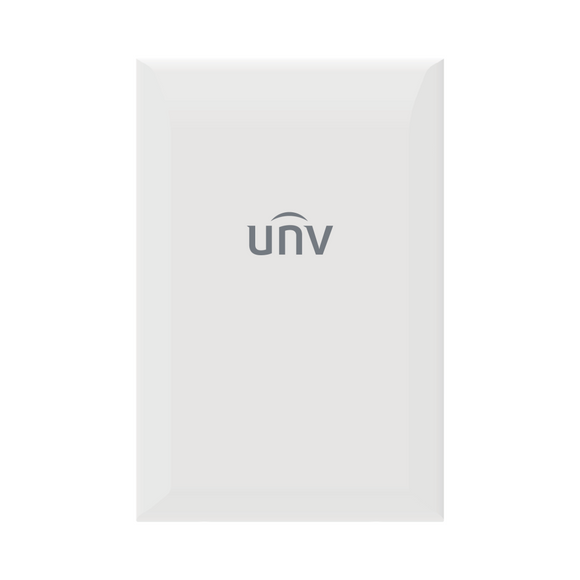

WLN-EB5N-IN - UniView Outdoor 1.5KM Long-Distance Wireless Bridge
WLN-EB5N-IN - UniView Outdoor 1.5KM Long-Distance Wireless Bridge

WLN-EB5N-IN - UniView Outdoor 1.5KM Long-Distance Wireless Bridge

UniView SKU: WLN-EB5N-IN

$311.31 NZD

Shipping calculated at checkout

Item is available to order. Please note the estimated delivery times below (If not displayed please contact us). Please call to pre-arrange any pick-ups.

Please Note: Estimated delivery details below

Description Specifications:

• Supports 802.11a/n standard
• The highest transmission rate is 90Mbps
• Outdoor transmission distance: 0~1.5km
• Integrated antenna, quick installation
• Shipped in pairs, no configuration required
• Built-in VTrans technology, including
• 1) TDMA: eliminate the performance degradation caused by hidden terminals and maximize the wireless transmission efficiency
• 2) Frequency (channel) expansion function: eliminate interference caused by the same frequency and adjacent frequency through more frequency selection
• 3) Band width selection: by adjusting the channel width, the overlapping parts of spectrum can be avoided and the influence of interference by other channels can be reduced
• 4) AutoAck function: intelligently calculate the ACK value required for long-distance transmission to achieve the optimal performance at this distance
• Supports bridge and router modes. Network architecture can be flexibly deployed by adjusting the network mode of devices
• Intelligent QoS wireless multimedia optimization technology, providing high priority transmission levels for voice and video
• Supports web page management, making installation and maintenance of equipment more convenient
• IP65





Hardware Specification
Dimensions(mm) 140x93x43mm
Weight(kg) 0.19kg
Installation Pole mounting,
Diameter≤55mm
Protection Level IP65
Antenna Gain 12dBi
Beam Width H：35°，V：35°
Max Power Consumption(W) 6W
Average Power Consumption(W) 4W
CPU AR9344
DDR \ Memory 64MB DDR2, 8MB Flash
Physical Interface 2*10/100Mbps
Indicator Light 1*Power Indicator,
1*WLAN Indicator,
1*LAN Indicator,
3* Signal strength indicator
Maximum Transmitted Power 24dBm
Working Temperature -40℃~65℃
Working Humidity 5%~95%RH Non-condensing
Surge POE/GE: CM 2KV , DM 1KV
ESD Protection Contact 6KV , Air 8KV
Wind Survivability 134km/h
Hardware Specification
Power Supply 12V Passive POE
Storage Temperature -40℃~85℃
Software Specification
Protocol 802.11a/n
Frequency 5180~5320MHz, 5745~5825MHz (China),
5180~5320MHz, 5500~5720MHz, 5745~5825MHz (United States),
5160~5340MHz, 5480~5720MHz, 5745~5865MHz (India),
5160~5340MHz, 5480~5720MHz, 5745~5825MHz (United Arab Emirates),
5745~5805MHz (Indonesia),
Supported frequency range: 4920~6100MHz (should depend on the local regulation),
* The above frequencies need specific version support
Operating Mode Station, WDS Station
Network Mode Bridge/ Router
Management Support Web/AC/SNMP
Other Timed restart，Support VLAN，QoS, Watchdog
Software Specification
Security WPA2-PSK, Hidden SSID, IP/MAC Filtering
