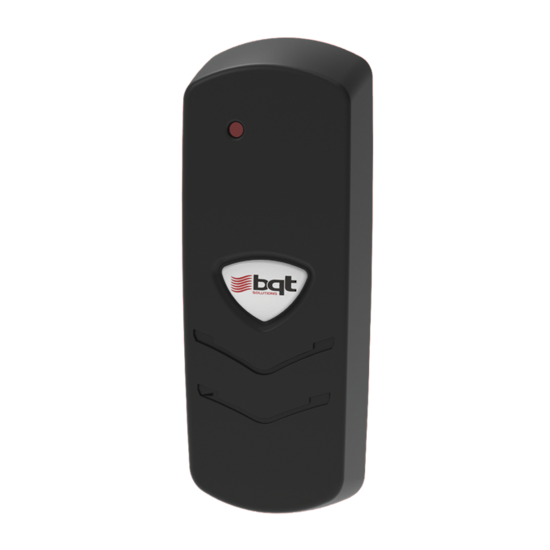

The BT950 reader is stylish as well as functional. Its low profile and slimline shape allow for easy installation on door architraves or mullions where larger readers do not fit. It can be mounted directly on a metal door frame with no adverse effect on the reader's function. In addition, the BT950 is available in a range of secure options right up to military grade technology and encryption. It provides a flexible solution through customisation to suit all access control requirements. This standard footprint mullion MIFARE smart card reader can be purchased pre-configured or customised and will integrate seamlessly with existing systems to facilitate upgrading to higher security technology.
Benefits
- Its narrow design offers an aesthetically pleasing, non-obstructive reader that takes up less physical space than traditional cases while being engineered with robust materials to provide effective access control in the most challenging environments.
- Offering pre-configured and customised operations, the BT950 can be set up to accept your custom key and data formats and is designed to work with your pre-existing security configurations.
- The BT950 offers installation flexibility and integration with many existing access panels and can be customised to suit a proprietary system. When you receive your reader, all you will have to do is connect them in to secure your site with your existing access control system.
Ideal use case
New sites locking for a narrow, aesthetically pleasing reader that has a need for high usage contactless access control. The BT950 is available in several technology levels for all security requirements and is the ideal slimline reader for all market sectors.
Voltage at Reader 8VDC to 16VDC
Current Usage Average: 80mA, Peak: 160mA
Card Read Range 20mm to 40mm (0.8” to 1.6”)
Operating Temperature -25°C to +65°C (-13°F to +149°F)
Relative Humidity (% max) 90%, operating noncondensing
Reader Dimensions 119mm (4.69”) X 43mm (1.69”) X 23mm (0.91”)
Materials Reader / Shroud Body: ABS Plastic, Colour Finish: Charcoal
Feedback Green/Red LED, with external control Buzzer, with external control Tamper detection, optional output
Credential Options ISO14443A, MIFARE Classic® 1K/4K, MIFARE Plus® X 2K/4K, MIFARE® DESFire® EV1 4K/8K, MIFARE® DESFire® EV2 4K/8K, MIFARE® DESFire® EV3 4K/8K
Compliance and Certification FCC, CE, UKCA, RCM, RoHS, IP65
