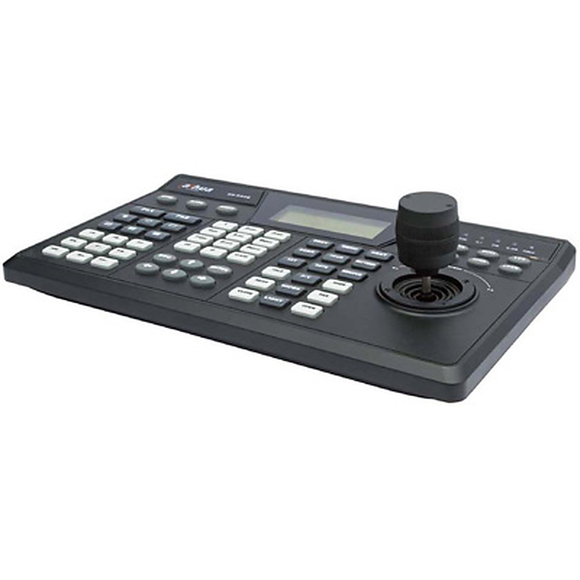

Dahua DH-KBDB PTZ Control Keyboard with 3-Axis Joystick

The Dahua DH-KBDB is a desktop control keyboard designed for direct control of compatible Dahua DVRs and PTZ dome cameras. It provides an electromechanical key panel, a 3-axis joystick and direct RS232/RS485 communication for CCTV control applications.

Key Features

• 3-axis joystick with twist and return-to-centre control
• Direct PTZ control via RS232 and RS485
• Supports Dahua DVR control and Dahua high-speed dome control
• Supports preset position, auto scan, auto pan, auto tour and pattern functions
• LCD display for menus and operating guidance
• Supports Dahua DH1/DH2 DVR protocols and DH-SD, Pelco-D, Pelco-P, Pelco-D1 and Pelco-P1 dome protocols

Specifications

• Model: DH-KBDB
• Keyboard: Electromechanical
• Joystick: 3-axis, vector-solving, twisting, return-to-centre
• Connections: RS232, RS485
• Communication: Direct mode
• Display: 84 mm × 31 mm LCD
• Power supply: DC 12 V / 1 A via supplied power adaptor
• Power consumption: 5 W
• Operating temperature: -10°C to +55°C
• Operating humidity: 10% to 90%
• Dimensions: 320 × 190 × 50 mm, approximately 100 mm high including joystick
• Weight: 2.5 kg

Compatibility note: DH-KBDB is the non-network version of this Dahua keyboard family and does not provide RJ45 network control. Confirm compatibility with the intended recorder or PTZ camera before installation.
