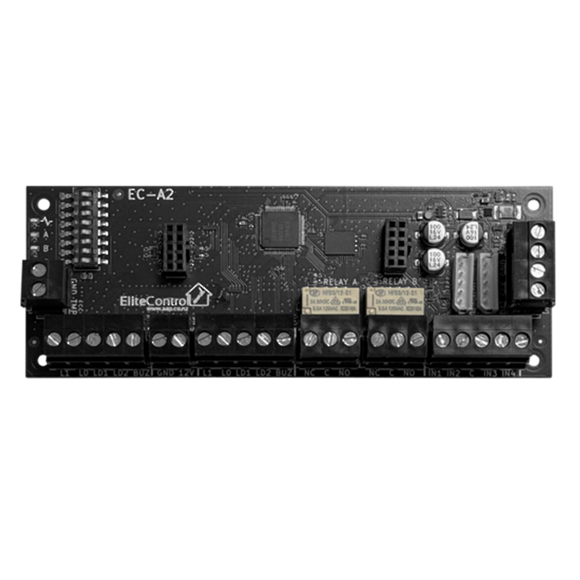

EC-A2 REX - 2 Door Access Control Module for EC & EC-i system

2 Door Access Control Module for EC & EC-i systems only. (Not suitable for Elite S, ESL-2 or earlier)

Features
2 x Reader/keypad inputs
4 x Inputs (2x dedicated REX & 2 x assignable)
2 x Clean outputs, 2A rated @ 30V
2 x Quick connect keypad bus sockets
Keypad bus updates (now supported)
All terminals are large & plug in
Add up to 16 x EC-A2 to 1 x EC control panel
5 year warranty
Dimensions - 140 x 52 x 25mm
Optional plug in battery back up 12V power supply,
1.4A - EC-PSU2 or 5A - EC-PSU5
