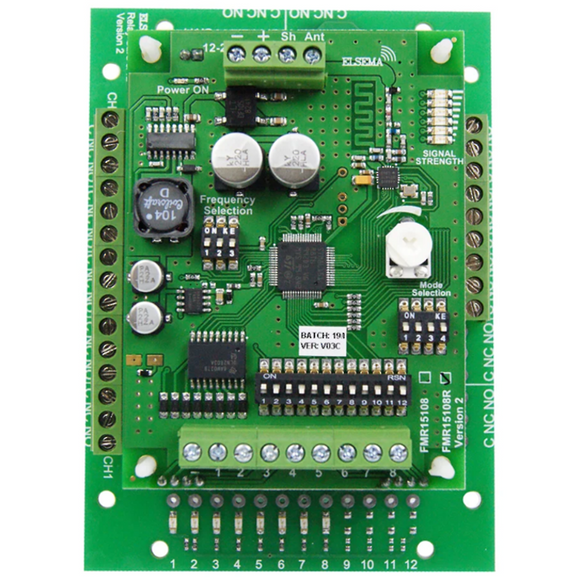

FMR16108R - Eight Channel FMR Series Receiver.

Eight Channel FMR Series Receiver. FMR16108R

Each version is carefully designed to cater to specific needs across various industrial and commercial applications. Operating on the 161MHz frequency band, these receivers are fully compatible with the FMT series of long-range transmitters, allowing for an impressive operating range of up to 5,000 meters.

The FMR16108R receiver offers flexible relay modes that can be set to momentary, latching, or delayed Off. These different output modes can be easily selected using the onboard 4-way dipswitch, providing several preselected mode combinations to suit a wide range of application.

Users can select from eight different narrowband frequencies and program an unlimited number of transmitters to the receiver. Programming the transmitter is straightforward, requiring only the matching of the 12-way dip switch settings between the receiver and the transmitter.

The 161MHz frequency band is ideal for long-range communication, making these receivers an excellent choice for applications where maintaining a strong and stable connection over vast distances is crucial.


Technical Specifications

Frequency
161MHz for New Zealand

Application
Industrial or Commercial use

Supply Voltage
12 – 24 Volts AC/DC

Coding
12-way dipswitch

Output Type
Voltage free relay output

Output Modes
Momentary, Latching & Delayed Off

Storage Capability
Unlimited Remotes

Dimension
95 x 70 x 30 mm

User Manual
Click Here

Compliance
Click here

Warranty: 2 Year Return to Base Warranty
