MC

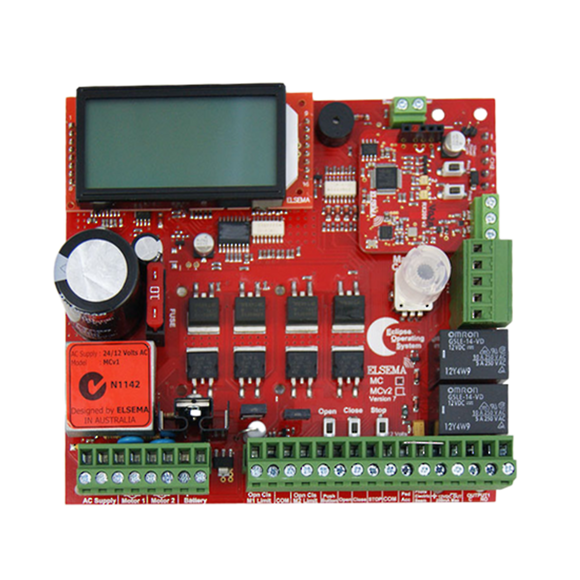

Control Card for Automatic Sliding & Swing Gates

The MC control card, powered by the Eclipse® operating system, is an intelligent motor control card which can be used on automatic swing or sliding gates which can be single, and double gates. Developed with direct customer feedback and the latest technology, this control card offers a user-friendly experience from installation to operation. Its design focuses on simplicity and efficiency, featuring a large LCD display that provides clear, step-by-step instructions. With its 1-touch control, users can easily navigate settings and adjust the system with minimal effort.

What sets the MC control card apart is its ability to handle a wide range of gate types, making it a go-to choice for residential, commercial, and industrial applications. Whether you’re managing a single gate or a more complex double gate system with or without Limit switches, this control card delivers reliable performance every time. The MC card is also highly adaptable and can be converted into a solar kit, offering a sustainable solution for gates in areas where electricity is limited or unavailable.

In addition to its functionality, the MC control card is competitively priced, offering exceptional value without sacrificing quality. It’s a cost-effective solution for those seeking a high-performing, durable, and adaptable gate control system. As one of the most popular cards available, it continues to stand out for its reliability and user-centric design, making it an ideal choice for anyone looking to upgrade their gate automation system.

Technical Specifications

Input Voltage
12 or 24 Volts AC/DC

Motor Voltage
12 or 24 Volts DC

Gate Type
Single or Double up to 120W Motors

Display & Control
Large LCD with One Touch Control

Gate Limit Options
Limit Switch or Current Sensing

Usable Keyring Remotes
PentaFOB® series
PentaCODE® series

Control Card Dimensions
140 x 130 x 45 mm

Operating System
Eclipse Operating System (EOS)

User Manual
Click Here

Connection Diagram
Click Here

Warranty: 2 Year Return to Base Warranty
