MCR91502R

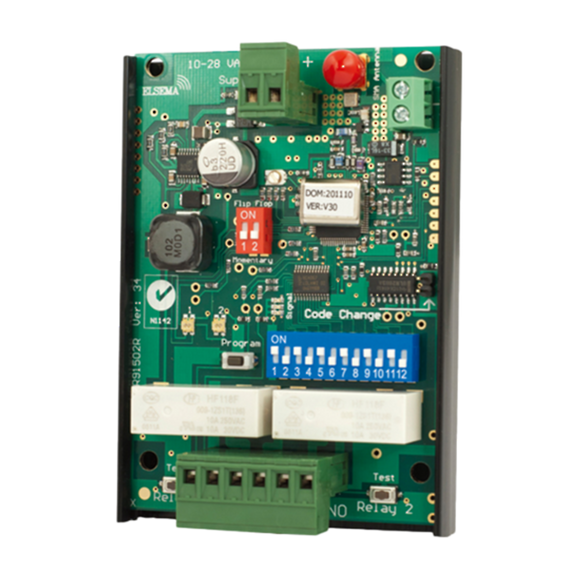

Two Channel Multicode Series Receiver. MCR91502R

The MCR91502R receiver, equipped with dual relay outputs, offers a highly dependable solution tailored for a wide range of industrial and commercial applications. Each relay output is rated for 8 Amps at 240VAC, providing reliable and consistent performance. Designed with user-friendliness in mind, this receiver features pluggable terminal blocks for straightforward wiring, a premium SMA antenna connector for optimal signal reception, and a quick-mount (QM100) option for easy installation. For added protection in challenging environments, the MCR91502R is also available in an IP66-rated weatherproof version (MCR91502RE).

Utilizing advanced Multicode Technology (MCT), the MCR91502R receiver offers dual digital coding options, including a 12-way dipswitch for standard uses and encrypted coding for high-security requirements. This flexibility makes the MCT91502R an excellent choice for applications that demand both adaptability and enhanced security.

The MCR91502R excels with its cutting-edge combination of Frequency Hopping Spread Spectrum (FHSS) and MCT technologies. FHSS, a technique commonly employed in sophisticated military and medical devices, ensures superior resistance to interference and unauthorized access. This advanced yet easy-to-use receiver is ideal for situations where reliability, security, and simplicity are paramount, positioning the MCR91502R as a leading option for those in need of a reliable and secure receiver solution.

Technical Specifications

Frequency
915MHz License free band.

Application
Industrial or Commercial use

Usable Transmitters
Multicode series

Supply Voltage
12 – 24 Volts AC/DC

Coding
Encrypted coding or 12-way dipswitch

Antenna
915MHz Series

Output Type
Voltage free relay output

Output Modes
Momentary & Latching

Storage Capability
Unlimited Remotes

Dimension
95 x 70 x 30 mm

Compliance
Click here

User Manual
Click Here

Warranty: 2 Year Return to Base Warranty
