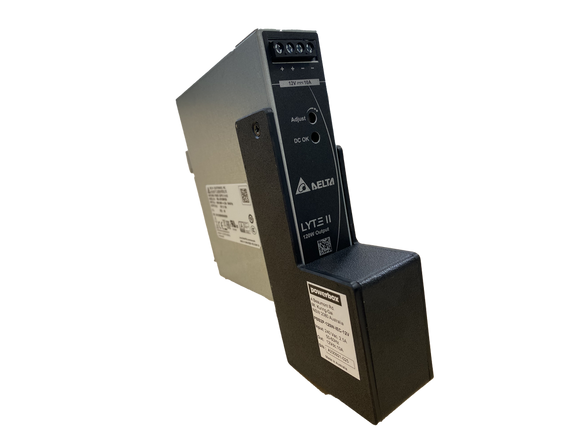

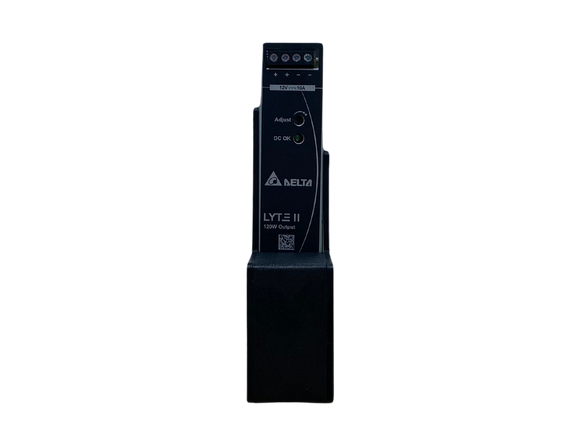

120W Series DIN rail power supply series is designed for cost sensitive users who need to fulfill essential features needed for many general industrial applications, without compromising on quality and reliability.
The convection-cooled PBB2P 120W Series will operate full power from -30°C to +50°C, then de-rating up to +70°C at 230 Vac. It can operate in constant current mode, making it suitable for inductive and capacitive loads.
Features
- 120W output power
- 12/24/48 Vdc output voltages
- Universal AC input voltage range
- Built-in constant current circuit for reactive loads
- Operate from -30°C to +70°C with -40°C Cold Start
- Reduced no-load power consumption
| INPUT | |||
|---|---|---|---|
| Model Number | PBB2P-120W-IEC-12V | PBB2P-120W-IEC-24V | PBB2P-120W-IEC-48V |
| Input Voltage Range | 90-264 Vac | ||
| Nominal Input Frequency | 50-60 Hz | ||
| Input Current | 2.1 A typ. @ 115 Vac, 1.3 A typ. @ 230 Vac | ||
| Efficiency at 100% Load | 86% typ. @ 230 Vac | 88.5% typ. @ 230 Vac | 89.5% typ. @ 230 Vac |
| Leakage Current | < 0.5 mA @ 240 Vac | ||
| OUTPUT | |||
|---|---|---|---|
| Model Number | PBB2P-120W-IEC-12V | PBB2P-120W-IEC-24V | PBB2P-120W-IEC-48V |
| Output Voltage | 12 Vdc | 24 Vdc | 48 Vdc |
| Output Voltage Adjustment Range | 10.8 - 13.2 Vdc | 21.6 - 26.4 Vdc | 43.2 - 52.8 Vdc |
| Output Current | 10.0 A | 5.0 A | 2.5 A |
| Output Power | 120 W max | ||
| Line Regulation | ± 0.5% @ 115 Vac & 230 Vac | ||
| PARD (20MHz) | < 120mVpp @ 0°C to +70°C < 360mVpp @ -30°C to 0°C |
< 150mVpp @ 0°C to+70°C < 450mVpp @ -30°C to 0°C |
< 200mVpp @ 0°C to+70°C < 600mVpp @ -30°C to 0°C |
| Hold-up Time | 10 ms typ. @ 115 Vac (100% load) 16 ms typ. @ 230 Vac (100% load) |
||
| MECHANICAL | ||||
|---|---|---|---|---|
| Model Number | PBB2P-120W-IEC-12V | PBB2P-120W-IEC-24V | PBB2P-120W-IEC-48V | |
| Case Cover / Chassis | SGCC / Aluminum | |||
| Dimensions (H x W x D) | 151 x 46 x 159 mm (5.94 x 1.81 x 6.26 inch) | |||
| Mounting Rail | Standard TS35 DIN Rail in accordance with EN 60715 | |||

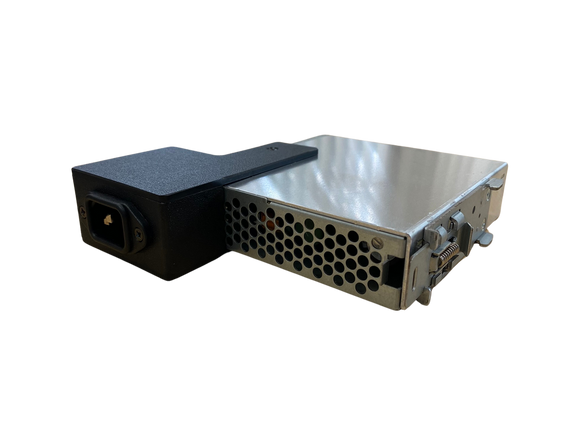

| Input Connector | IEC Socket (with 2M IEC power cable) | |||
| Output Connector | 4 Pins (Rated 300 V / 20 A) | |||
| Wire Output | AWG 18-12 (Current rating can refer to “AWG Wire Table”) | |||
| Unit Weight | 0.53 kg (1.17 lb) | |||
| ENVIRONMENTAL | ||||
|---|---|---|---|---|
| Model Number | PBB2P-120W-IEC-12V | PBB2P-120W-IEC-24V | PBB2P-120W-IEC-48V | |
| Operating Temperature | -30°C to +70°C (-40°C Cold Start) | |||
| Storage Temperature | -40°C to +85°C | |||
| Power De-rating | > 40°C de-rate power by 1.67 % / °C @ 115 Vac > 50°C de-rate power by 2.5 % / °C @ 230 Vac |
|||
| Cooling System | Convection | |||
| Operating Humidity | 20 to 90% RH (Non-Condensing) | |||
| Operating Altitude | 0 to 5,000 Metres (16,400 ft.) | |||
| PROTECTIONS | |||
|---|---|---|---|
| Model Number | PBB2P-120W-IEC-12V | PBB2P-120W-IEC-24V | PBB2P-120W-IEC-48V |
| Overvoltage | < 17.4 V, SELV Output, Latch Mode | < 33.6 V, SELV Output, Latch Mode | < 64.8 V, SELV Output, Latch Mode |
| Overload / Overcurrent | 105 - 150% of rated load current, Auto-recovery Continuous current limit Mode (Vo > 80%) |
||
| Over Temperature | Latch Mode | ||
| Short Circuit | Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed) |
||
| Protection Against Shock | Class I with PE connection | ||
| Galvanic Isolation |
Input to Output - 3.0 KVac |
||
| RELIABILITY DATA | ||
|---|---|---|
| MTBF | Telcordia > 700,000 hrs | SR-332 I/P: 115 Vac & 230 Vac, O/P: 100% load, Ta: 25°C | |
| Expected Cap Life Time | 10 years (230 Vac, 50% load @ 40°C) | |
| STANDARDS | ||
|---|---|---|
| EMC | AS/NZS CISPR32 | |
| Electrical Safety | IEC 62368-1, IEC 61010-1 & -2 -201 | |
| CE | In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU | |
| SELECTION TABLE | |||
|---|---|---|---|
| Model Number | Output | IEC Socket | Delta Power Supply |
| PBB2P-120W-IEC-12V | 12V / 10A | Y | DRL-12V120W1EN |
| PBB2P-120W-IEC-24V | 24V / 5A | Y | DRL-24V120W1EN |
| PBB2P-120W-IEC-48V | 48V / 2.5A | Y | DRL-48V120W1EN |
