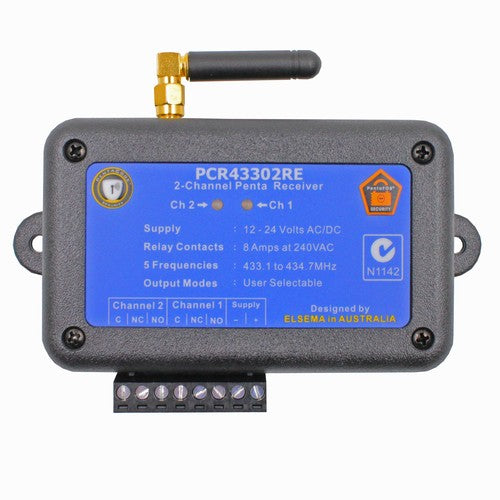

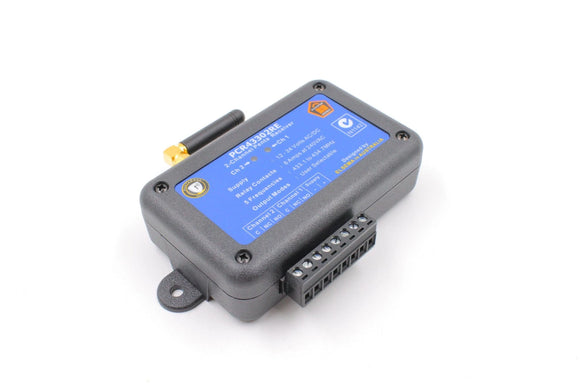

PCR43302RE - 2-Channel, 433MHz Penta Receiver with Relay outputs

Features
 Frequency hopping between 433.10 to 434.70MHz
 Coding using 12-way dipswitch or encrypted codes
 Momentary and latching modes are user selectable
 Antenna diversity for robust link with extended range
 Unlimited remotes can be programmed to the receiver
 Compatible with PentaFOB® and PentaCODE® remotes
 Wide operating supply voltage and low current consumption
 Add, edit and delete individual PentaFOB® remotes with
programmer
 On-board diagnostic LED’s to indicate correct power, reception and relay activation
Applications
 Keyless access control for automatic gates and doors
 Home automation i.e. garden lights, swimming pool control etc.
 Security, lighting and automotive controls
…. and anywhere else you need a wireless signal to transmit a
 contact closure

This receiver is compatible with “PentaFOB®” and “PentaCODE®” remotes. The receiver can be easily installed
into your existing automatic gate opener or garage door controls. Other applications include light control,
security shutters or anywhere else you need a wireless signal to transmit a contact closure.
The PentaCODE® dual coding system gives the installer the option to use the classic 12-way dip switch coding
or one of over 17 billion encrypted codes.
With the 12-way dip switch, just match the keyring remotes and the receiver's dip switch and it's coded. With
the encrypted code, you switch all the 12-way dip switches OFF and the remote and receiver automatically goes
into the encrypted coding. Please see coding instructions for encrypted coding procedure.
