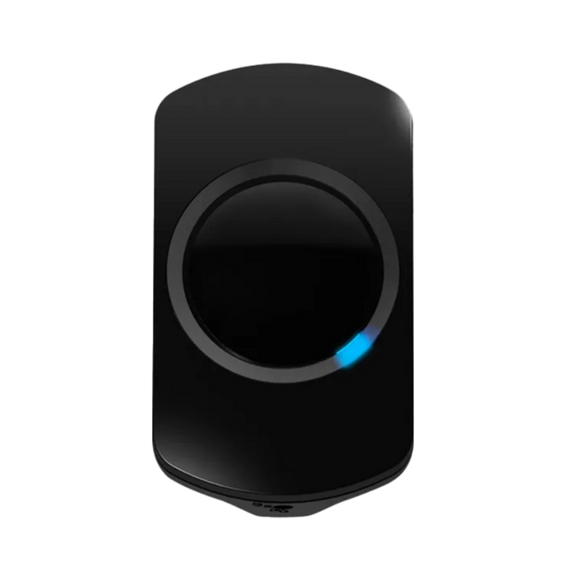

SEN-BLK Texecom Capture P15: AKB-0006 Wired Dual PIR 35Kg PET - 15m BLACK PIR

Texecom Capture P15: AKB-0006 Wired Dual PIR 35Kg PET - 15m BLACK PIR

5 years in development. Designed with installer feedback and meeting latest EU Intrusion Detector standards - EN50131.

Texecom’s new 'Capture' range of motion detectors is their highest performing, most reliable, easiest to install range of detectors, ever. Capture has been designed with the installer in mind and includes a host of installer friendly features, making installation and commissioning a doddle.

This P15 'Grade 2' wired wall-mount PIR detector provides a 15m detection zone and can be set to an optional PET tollerance of 35Kg.

P15 Features:

 15m / 90° volumetric coverage
 Mounting height 1.5 - 3m
 Dual Element Pyro
 Bulit in EOL resistors
 Front loaded, fully sealed electronics - no insect falses
 Cyan LED
 Optional PetWise mode - Critical Mass up to 35Kg
 Complies to EN50131-2-2 Grade 2

Capture Range PIR Detectors:

 Detectors can operate in a 'standard' or PET tolerant mode
 Operate across a variety of resistance tolerances - adjusted on the detector
 Designed for ease of installation: adjustable mounting block, clear ID of terminals
 Visually alike, detectors provide no clues to their capability, complying to EN50131
