Thermal Bullet Cameras Dual Lens Thermal Bullet Camera

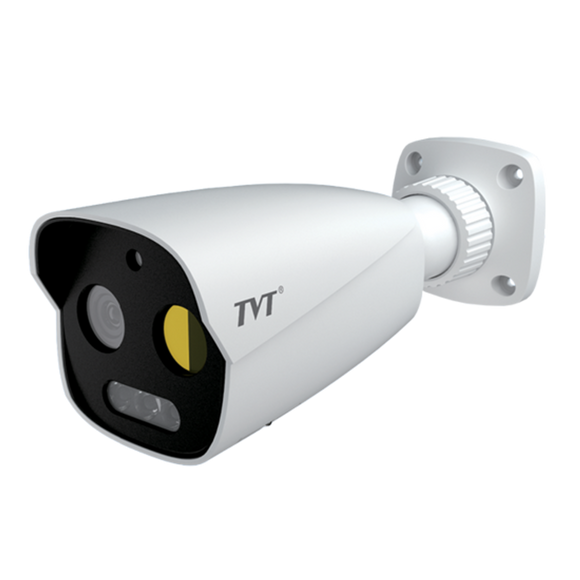

Dual Lens Thermal Bullet Camera

Features

Thermal:

Resolution: 256×192
12?m?NETD: ?50mK(@25°C, F#=1.0)
Temperature range: -20°C~150°C
Multi-palette: white hot, black hot, iron oxide red, rainbow, etc.
Sound and light warning, temperature exception alarm, fire detection
Intelligent analytics: region intrusion/entrance/exiting (human/motor vehicle classification), line crossing detection (human/motor vehicle classification)
Supports dual image fusion
Supports temperature overlay on video stream

Optical:

5MP ( 2592 × 1944 ) @30 fps
ICR auto switch, true day/night vision
20~30m IR night view distance
3D DNR, true WDR(120dB), HLC, BLC, Smart IR, distortion image correction, ROI etc.

Intelligent analytics: region intrusion/entrance/exiting  detection (human/motor vehicle/non-motor vehicle classification), line crossing detection (human/motor vehicle/non-motor vehicle classification), target counting by line/area (human/vehicle /non-motor vehicle classification), face detection, face capture, illegal parking detection, loitering detection, abandoned/missing object detection

Manufacturers Code: TD-5422E1-VT1(3/PE)
Thermal lens: 3.2mm
Optical lens: 4mm

Manufacturers Code: TD-5422E1-VT1(7/PE)
Thermal lens: 7mm
Optical lens: 8mm

Warranty: 2 Year Return to Base Warranty

 Datasheet
