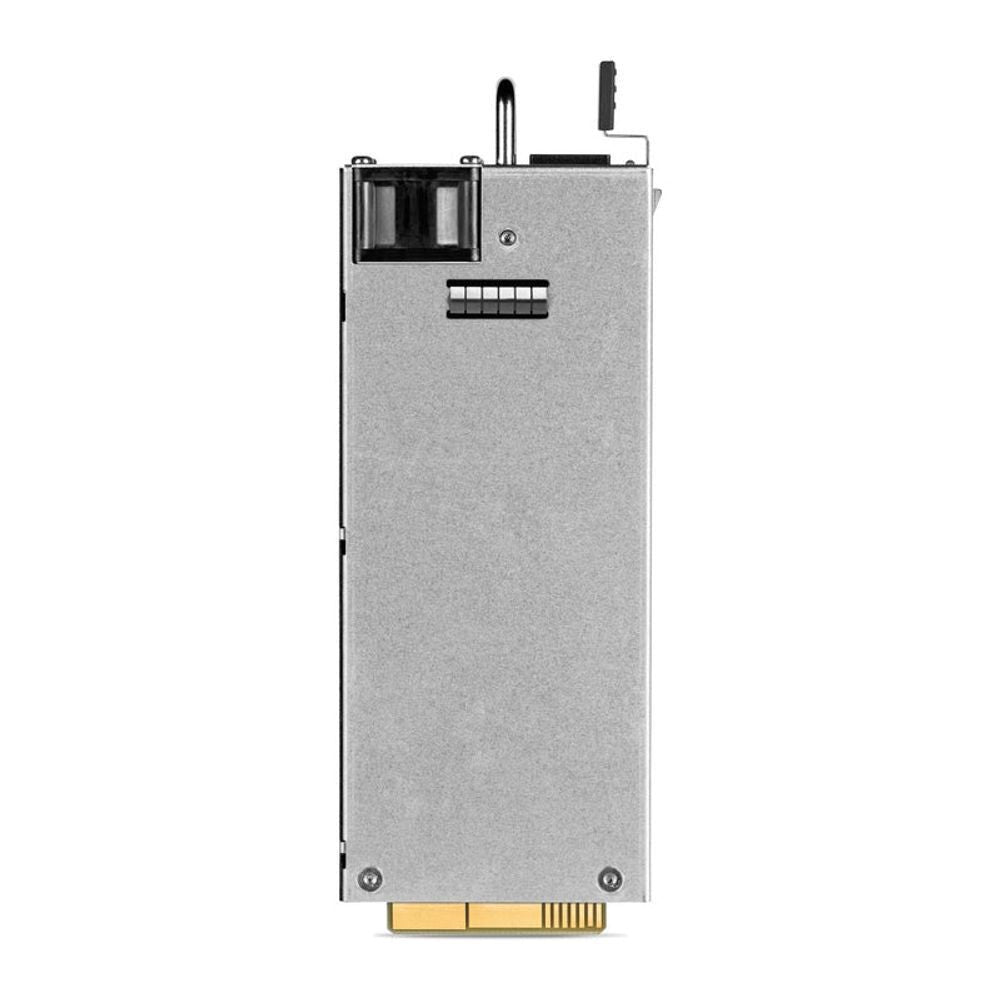

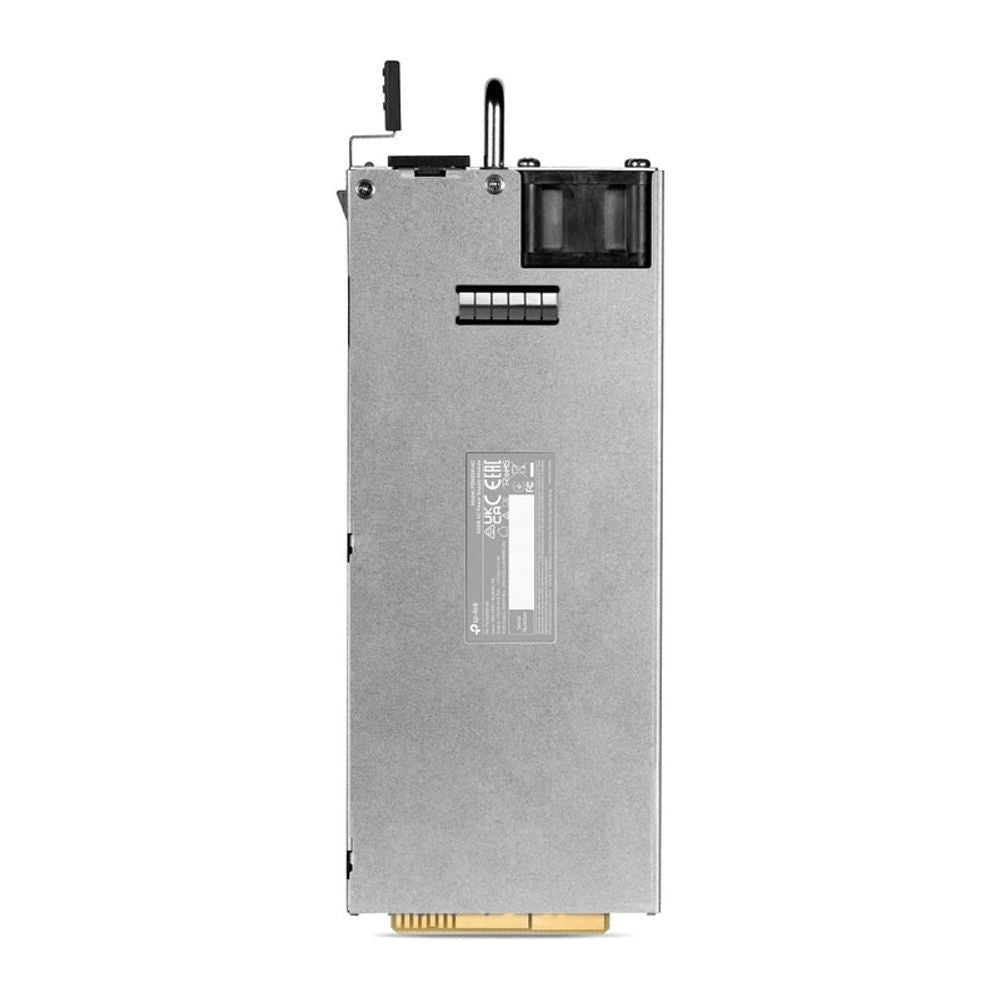

500W AC Power Supply Module
- Up to 500 watts output power
- Hot swappable
- 53.5 V DC output voltage
- Output over-voltage/under-voltage/short circuit/over-current protection
- Suitable for SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y
What This Product Does
The TP-Link Power Supply Module PSM500-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 53.5 Volts with a maximum output power of 500 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple TP-Link Omada and TP-Link Omada Pro switch models, such as SG6428XHP, SG6654XHP, S6500-24GP4XF, 6500-48GP6XF, S6500-24MPP4Y, and S6500-48MPP6Y.
| REDUNDANT POWER SUPPLY | |
|---|---|
| AC Power Input | 100-240V~ 50/60Hz 8A |
| DC Power Output | 53.5 V/9.35 A |
| Dimensions | 259.5*95.8*40.1 mm |
| Maximum Power Output | 500W |
| Environment | • Operating Temperature: 0˚C–45˚C (32˚F to 113˚F) • Storage Temperature: -40℃–70℃ (-40℉~158℉) • Operating Humidity: 10%–90% RH, Non-condensing • Storage Humidity: 5%–90% RH, Non-condensing |
