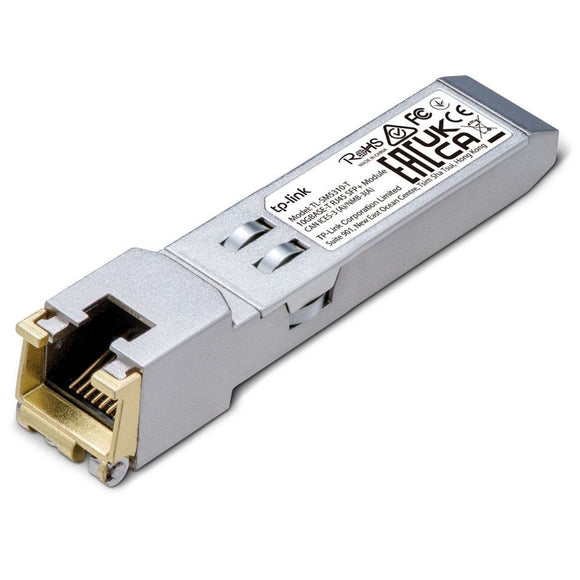

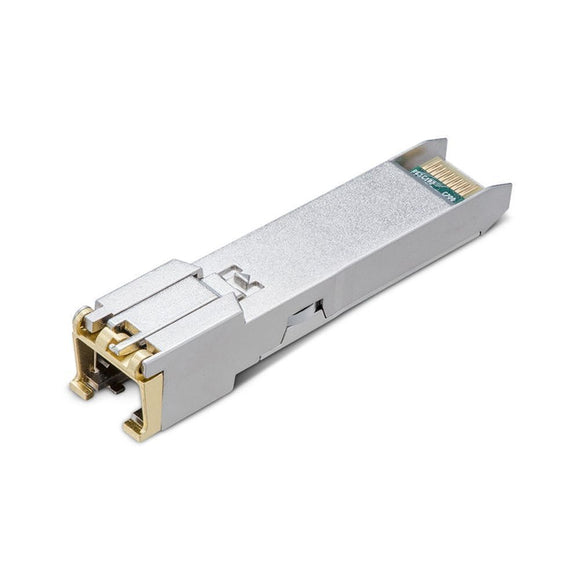

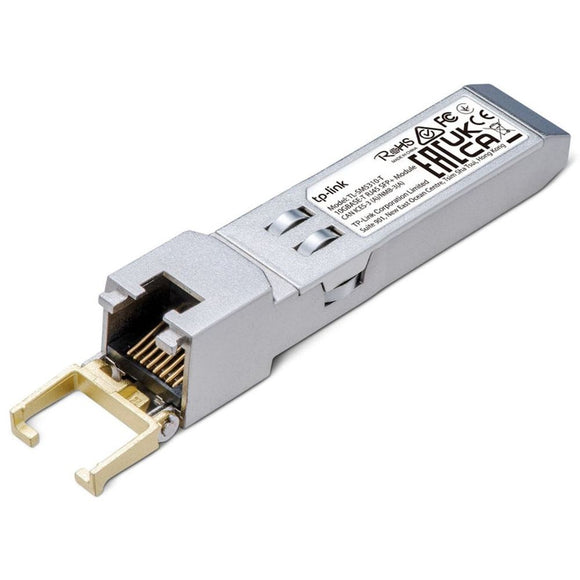

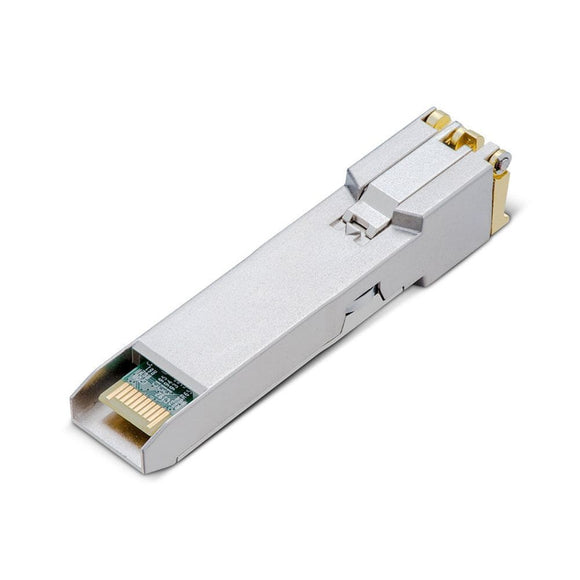

10G BASE-T RJ45 SFP+ Module
- Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
- Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
- Support DDM (Temperature and Voltage)
- Hot-Pluggable SFP+ Footprint Features
- Support TX Disable function
- Commercial Product Operating Temperature Range: 0-70°C
- Fully Metallic Enclosure for Low EMI
| PACKAGE CONTENTS | |
|---|---|
| Package Contents | • 10G BASE-T RJ45 SFP+ Module TL-SM5310-T • Installation Guide |
| HARDWARE FEATURES | |
|---|---|
| Hot Swappable | Yes |
| TRANSCEIVER | |
|---|---|
| Standards and Protocols | IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an |
| Power Supply | 3.3V |
| Max. Cable Length | 100BASE-TX: UTP cat .5 or above (max. 100m) 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m) 10GBASE-T: UTP cat.6a or above (max. 30m) |
| Data Rate | 10.3 Gbps |
| Port Type | 1× 10G RJ45 Port |
| Safety & Emission | FCC, CE, RoHS |
| Environment | Operating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–85 ℃ (-40–185 ℉) |
*Data measured in a laboratory environment under specific conditions. The actual transmission distance may vary due to transmission speed or the cable quality and type.
**Check the compatibility list of TL-SM5310T and enjoy the connection.
***It is recommended to place the modules separated by multiple optical transceivers or empty slots. When used in high-temperature environments, additional cooling must be applied.
