| Model composition |
Main Monitor(VL-MV754) x1, Door Station(VL-V524) x1, Power Supply Unit (VL-PS241) x 1 |
| Maximum Connectable Units |
Door Station |
Up to 2 (1 included with VL-SV74) |
| Monitor |
Up to 3 extension monitors (not including the main monitor) |
| Wireless Monitor |
Wireless sub monitors NOT supported. |
| Wireless Repeater |
Up to 2 (sold separately) |
| Connectable Devices |
E-lock Release Support |
Up to 2 (user supplied) |
| PBX |
Only Panasonic PBX |
| Convenience |
Picture Recording |
Internal memory: Up to 50 visitors/sessions (up to 4 still images per visitor/session) |
| Night Vision |
Yes (LED lights) |
| Touch Panel / Pan & Tilt |
- / - |
| Voice Changer |
Yes |
| Intercom call |
Yes (between main monitor and extension monitor) |
| Monitor |
Power source |
Power supply unit (VL-PS241) 24 V DC, 0.6 A |
| Power consumption |
Standby:1.9 W, Operating:12.7 W
*Measurement conditions: Monitor (1 pc.) with Door Station VL-V524 (1 pc.) is connected to VL-PS241 |
| Dimensions (H x W x D) |
Approx. 158 x 201 x 25 mm |
| Mass (weight) |
Main monitor: 605 g
Power supply unit: 215 g (VL-PS241) |
| Operating environment |
Ambient temperature: Approx. 0 to +40C, Relative humidity (non-condensing): up to 90 % |
| Display size |
7-inch wide colour / WVGA (800 x 480 pixels)(Touch sensor keys) |
| Display language |
English, Arabic |
| Talking method |
Hands-free |
| Installation method |
Wall mount (mounting bracket supplied) |
| External material |
Flame retardant ABS resin |

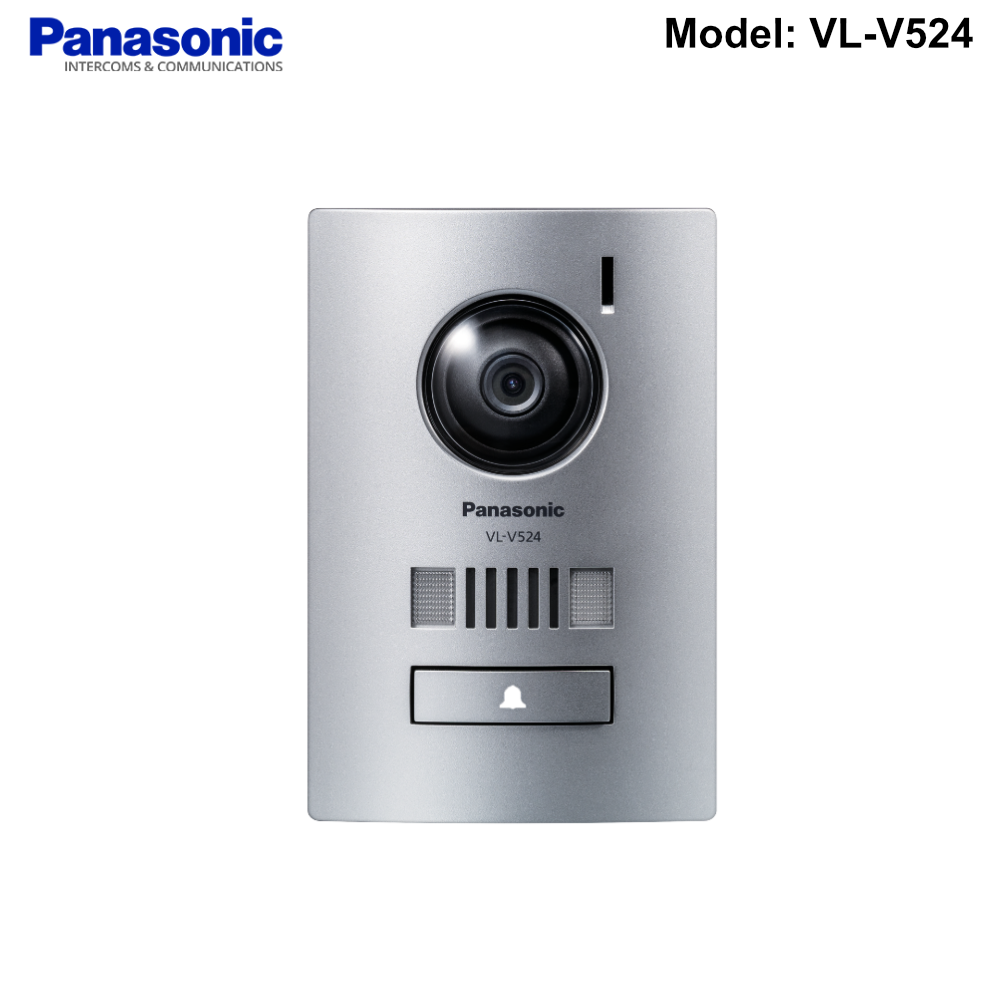

| Door Station |
Power source |
Power supplied by the main monitor |
| Dimensions (H x W x D) |
Approx. 152 x 102 x 35.5 (21.5 *) mm *Excluding sections embedded into the wall. |
| Mass (weight) |
Approx. 225 g |
| Operating environment |
Ambient temperature: Approx. -15C to +55C, Relative humidity (non-condensing): up to 90 % |
| Talking method |
Hands-free |
| Viewing angle |
Horizontally: Approx. 85, Vertically: Approx. 54 |
| Image sensor/ Camera (pixel) |
1/3 inch CMOS sensor (Approx. 1.3 M pixels) |
| Minimum illuminance required |
1 lx (within approx. 50 cm from the camera lens) |
| Lighting method |
LED lights |
| IP rating (INGRESS PROTECTION) |
IP44
*Water resistance is only assured if the doorstation is installed correctly according to the instructions in the Installation Guide, and appropriate water protection measures are taken. |
| Installation method |
Surface mount (mounting base supplied), Flush mount (mount box sold separately) |
| External material |
Flame retardant resin |
